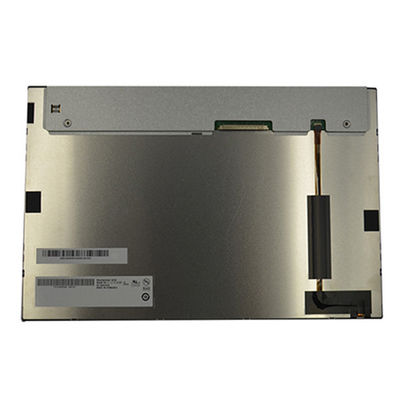

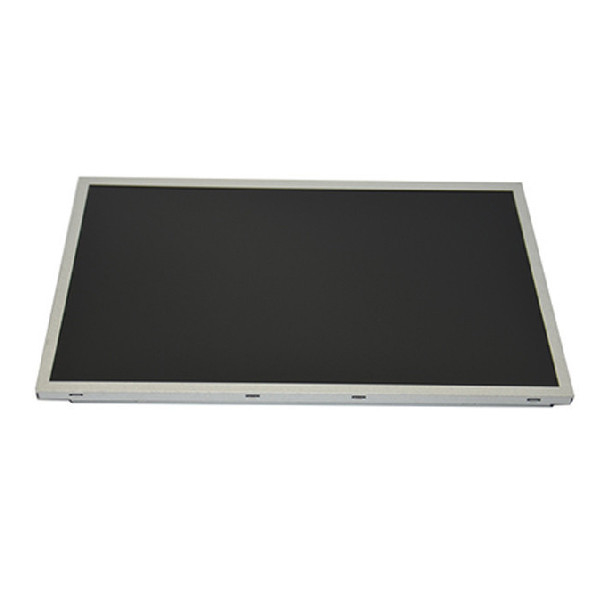

1280x800 IPS Industrial LCD Panel Display 12.1'' G121EAN01.0
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | AUO |
| Model Number: | G121EAN01.0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Manufacturer: | AUO | Model Name: | G121EAN01.0 |
|---|---|---|---|
| Screen Size: | 12.1 Inch | Resolution: | 1280(RGB)×800, WXGA, 124PPI |
| Screen Type: | A-Si TFT-LCD, LCD Module | Display Size: | 261.12(W)×163.2(H) Mm |
| Physical Dimension: | 278(W)×184(H) ×9.29(D) Mm | Visual Size: | 264.22(W)×168.12(H) Mm |
| Luminanceration: | 500 Cd/m² (Typ.) | Contrast Ratio: | 1000:1 (Typ.) (TM) |
| Responding Time: | 25 (Typ.)(Tr+Td) | Used For: | Industrial |
| High Light: | 800 IPS Industrial LCD Panel Display,1280 IPS Industrial LCD Panel Display,G121EAN01.0 auo tft display |
||
Product Description
Original Industrial LCD Panel Display 1280x800 12.1 inch G121EAN01.0 Display Screen
Product details :
TFT LCD Panel, LCD/LED backlight
A Grade , 100% New Original
In Stock
| AUO LCD SCREENG G121EAN01.0 | |
| Panel Brand | AUO |
| Panel Model | G121EAN01.0 |
| Panel Size | 12.1 inch |
| Screen Type | LCM , a-Si TFT-LCD |
| Resolution | 1280(RGB)×800, WXGA, 124PPI |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 261.12(W)×163.2(H) mm |
| Bezel Opening | 264.22(W)×168.12(H) mm |
| Outline Size | 278(W)×184(H) ×9.29(D) mm |
| Surface | Antiglare, Hard coating (3H) |
| Brightness | 500 cd/m² (Typ.) |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Display Mode | AHVA, Normally Black, Transmissive |
| Best View on | Symmetry |
| Response Time | 25 (Typ.)(Tr+Td) |
| Display Colors | 262K/16.7M 99% sRGB |
| Lamp Type | WLED , 100K hours , With LED Driver |
| Frequency | 60Hz |
| Touch Screen | Without |
| Panel Weight | 480g (Max.) |
| Application | Industrial |
| Signal Interface | LVDS (1 ch, 6/8-bit) , 30 pins Connector |
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating Temp.: -30 ~ 85 °C ; Storage Temp.: -30 ~ 85 °C |
|
Original Industrial LCD Panel Display 1280x800 12.1 inch G121EAN01.0 Display Screen |
|
