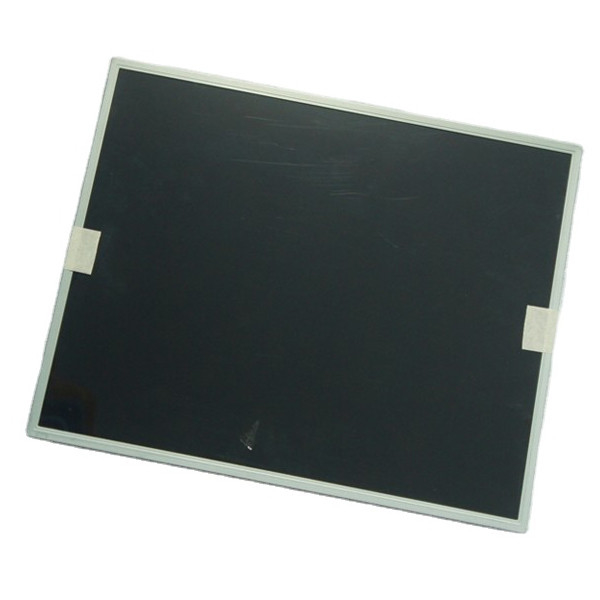

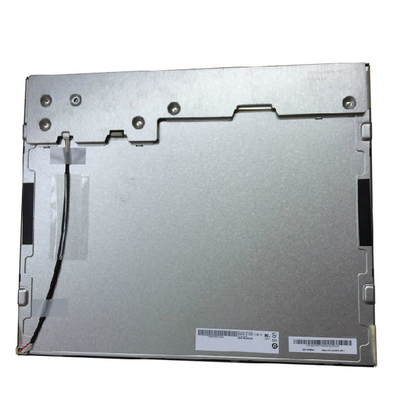

Industrial LCD Panel Display G190ETN01.4 19 inch 1280*1024 screen panel
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | AUO |
| Model Number: | G190ETN01.4 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Manufacturer: | AUO | Model Name: | G190ETN01.4 |
|---|---|---|---|
| Screen Size: | 19.0 Inch | Resolution: | 1280(RGB)×1024, SXGA, 86PPI |
| Screen Type: | A-Si TFT-LCD, LCD Module | Display Size: | 376.32(W)×301.056(H) Mm |
| Physical Dimension: | 396(W)×324(H) ×13.38(D) Mm | Visual Size: | 379.72(W)×304.46(H) Mm |
| Luminanceration: | 450 Cd/m² (Typ.) | Contrast Ratio: | 1000:1 (Typ.) (TM) |
| Responding Time: | 7/3 (Typ.)(Tr/Td) | Used For: | Industrial |
Product Description
Industrial LCD Panel Display G190ETN01.4 19 inch 1280*1024 screen panel
Product details :
TFT LCD Panel, LCD/LED backlight
A Grade , 100% New Original
In Stock
| AUO LCD SCREEN G190ETN01.4 | |
| Panel Brand | AUO |
| Panel Model | G190ETN01.4 |
| Panel Size | 19.0" |
| Panel Type | a-Si TFT-LCD , LCM |
| Resolution | 1280(RGB)×1024, SXGA, 86PPI |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 376.32(W)×301.056(H) mm |
| Bezel Opening | 379.72(W)×304.46(H) mm |
| Outline Size | 396(W)×324(H) ×13.38(D) mm |
| Surface | Antiglare, Hard coating (3H) |
| Brightness | 450 cd/m² (Typ.) |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| Viewing Angle | 85/85/80/80 (Typ.)(CR≥10) |
| Display Mode | TN, Normally White, Transmissive |
| Response Time | 7/3 (Typ.)(Tr/Td) |
| Display Colors | 16.7M 90% NTSC |
| Lamp Type | 4 strings WLED , 50K hours , With LED Driver |
| Frequency | 60Hz |
| Touch Screen | Without |
| Panel Weight | 1.80Kgs (Typ.) |
| Application | Industrial |
| Signal Interface | LVDS (2 ch, 8-bit) , 30 pins Connector |
| Input Voltage | 5.0V (Typ.) |
| Environment | Operating Temperature: -30 ~ 85 °C ; Storage Temperature: -30 ~85 °C |
| Industrial LCD Panel Display G190ETN01.4 19 inch 1280*1024 screen panel | |
Why Choose Us :
According to customers' various requests,
we can match all accessories which inclusive of driver board,
touch-screen, LED backlight & LVDS cables. TFT LCD,
LCD panel, LCD display,LCD screen, LCD monitor,
LCD module from 2.2 inch to 88 inch.
Quality promised, 100% original,fast delivery,
also enjoy one year guarantee !
Shipping and Package :
1)All of our product will be testing before shipping . So you can be assured the quality of our products
2) All Panels are packed with new and firm carton, capable of long distance transportation.
3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT
4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.
FAQ :
Q:Can You declare my order of G190ETN01.4 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q:Can you give me a discount if I need a large quantity of G190ETN01.4 ?
A:Of course!If you make a large order, we will give you a discount.
Q:Can I pay my order of G190ETN01.4 via credit card ?
A:Yes!you can use your credit card through your Paypal account.
Q: How long is the warranty ?
A: We offer 90 days warranty .
We are one of the professional and experienced suppliers of Industrial LCD Panel Display G190ETN01.4 19 inch 1280*1024 screen panel, offering you the quotation and the price list consultation. Welcome to wholesale the high-end, quality and low price products in stock with us. Good after-sale service and fast delivery are available.
*Pls feel free to contact us for any questions or special requirements . Thank you so much for your coopreation !
