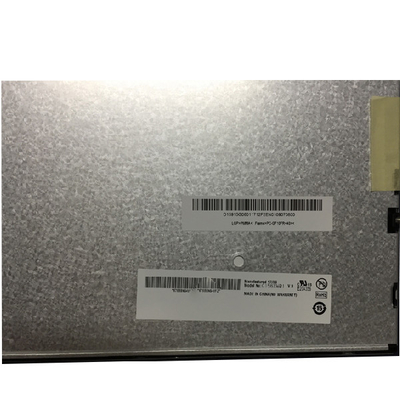

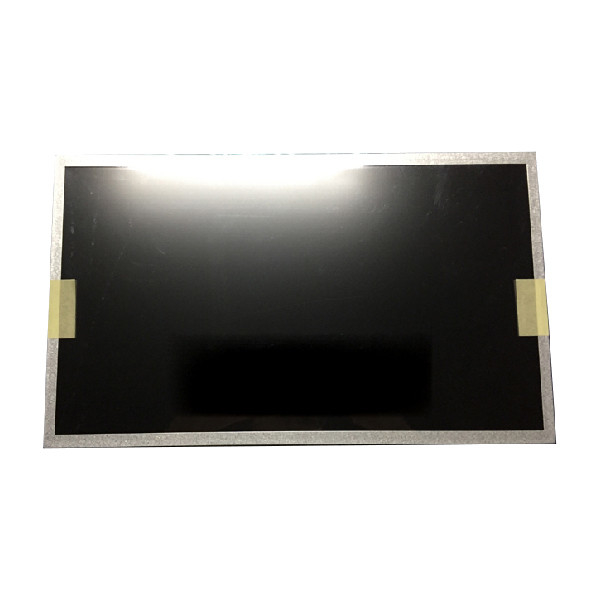

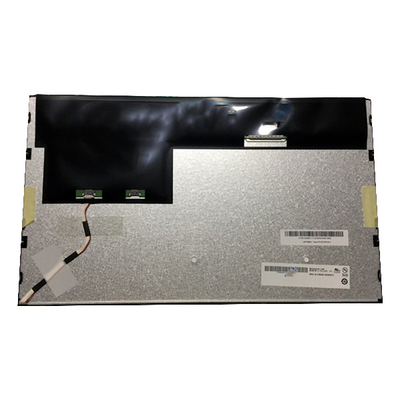

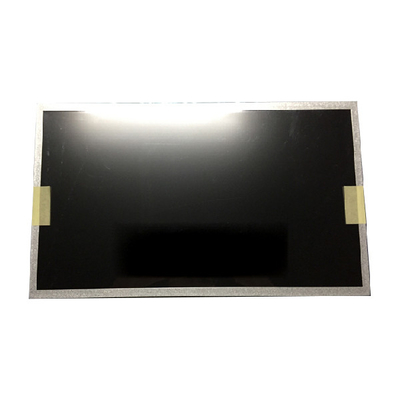

15.6 Inch Industrial LCD Panel Display G156XW01 V3 AUO
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | AUO |
| Model Number: | G156XW01 V3 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Manufacturer: | AUO | Model Name: | G156XW01 V3 |
|---|---|---|---|
| Screen Size: | 15.6 Inch | Resolution: | 1366(RGB)×768, WXGA, 100PPI |
| Screen Type: | A-Si TFT-LCD, LCD Module | Display Size: | 344.232 × 193.536 (H×V) |
| Physical Dimension: | 363.8 × 215.9 × 9.8 (H×V×D) | Visual Size: | 347.54 × 196.83 (H×V) |
| Luminanceration: | 400 Cd/m² (Typ.) | Contrast Ratio: | 500:1 (Typ.) (transmission) |
| Responding Time: | 6/2 (Typ.)(Tr/Td) Ms | Used For: | Industrial |
| High Light: | 15.6in Industrial LCD Panel Display,G156XW01 Industrial LCD Panel Display,AUO 15.6 inch lcd screen |
||
Product Description
G156XW01 V3 AUO 15.6 inch Industrial LCD Panel Display
Product details :
TFT LCD Panel, LCD/LED backlight
A Grade , 100% New Original
In Stock
| AUO LCD SCREEN G156XW01 V3 | |
| Manufacturer | AUO |
| Model Name | G156XW01 V3 |
| Screen Size | 15.6" |
| Screen Type | LCM , a-Si TFT-LCD |
| Pixel Number | 1366(RGB)×768, WXGA, 100PPI |
| Arrangement | RGB Vertical Stripe |
| Active Area(mm) | 344.232 × 193.536 (H×V) |
| Outline(mm) | 363.8 × 215.9 × 9.8 (H×V×D) |
| Bezel Area(mm) | 347.54 × 196.83 (H×V) |
| Treatment | Antiglare, Hard coating (3H) |
| Luminance | 400 (Typ.)(cd/m²) |
| Contrast Ratio | 500 : 1 (Typ.) (TM) |
| Viewing Angle | 85/85/80/80 (Typ.)(CR≥10) |
| Work Mode | TN, Normally White, Transmissive |
| Response | 6/2 (Typ.)(Tr/Td) ms |
| Color Depth | 16.2M 67% NTSC |
| Backlight | WLED , 50K hours , With LED Driver |
| Mass | 0.94/1.04Kgs (Typ./Max.) |
| Used for | Industrial |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | LVDS (1 ch, 8-bit) , 30 pins Connector |
| Voltage Supply | 5.0V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 60 °C |
| G156XW01 V3 AUO 15.6 inch Industrial LCD Panel Display | |
Why Choose Us :
According to customers' various requests,
we can match all accessories which inclusive of driver board,
touch-screen, LED backlight & LVDS cables. TFT LCD,
LCD panel, LCD display,LCD screen, LCD monitor,
LCD module from 2.2 inch to 88 inch.
Quality promised, 100% original,fast delivery,
also enjoy one year guarantee !
Shipping and Package :
1)All of our product will be testing before shipping . So you can be assured the quality of our products
2) All Panels are packed with new and firm carton, capable of long distance transportation.
3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT
4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.
FAQ :
Q:Do you accept sample orders of G156XW01 V3 ?
A:Of course!sample order is welcome !
Q:Can you give me a discount if I need a large quantity of G156XW01 V3 ?
A:Of course!If you make a large order, we will give you a discount.
Q:How to make payment of G156XW01 V3?
A:We accept T/T , Paypal , western union .
Q:Can You declare my order of G156XW01 V3 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
We are one of the professional and experienced suppliers of G156XW01 V3 AUO 15.6 inch Industrial LCD Panel Display, offering you the quotation and the price list consultation. Welcome to wholesale the high-end, quality and low price products in stock with us. Good after-sale service and fast delivery are available.
*Pls feel free to contact us for any questions or special requirements . Thank you so much for your coopreation !
