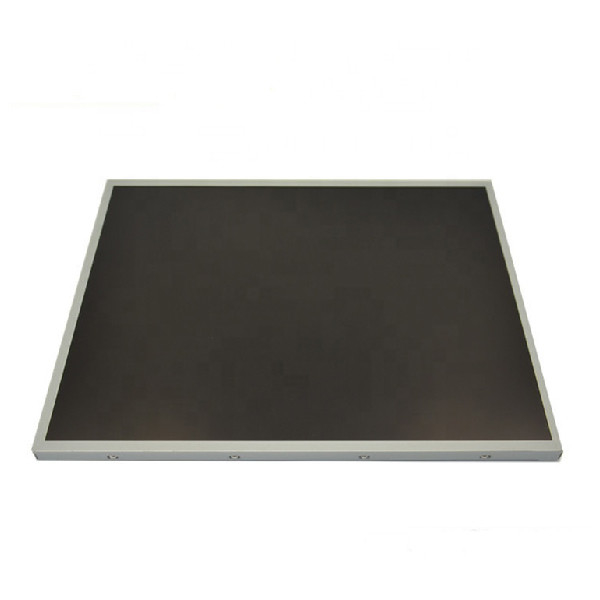

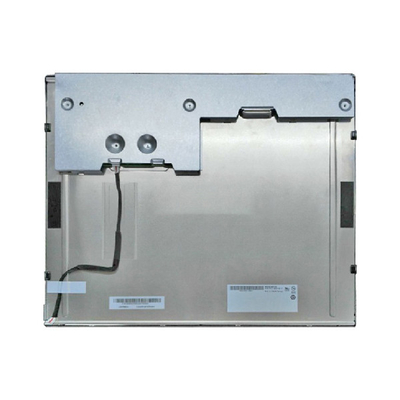

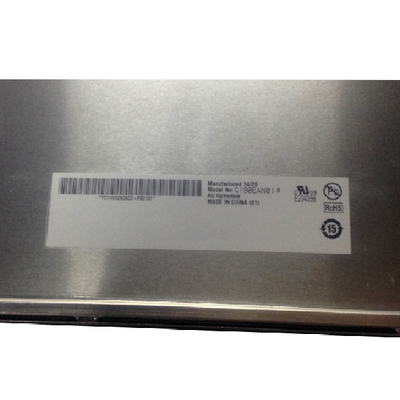

G190EAN01.0 touch screen LCD display TFT Module 19.0 inch 1280*1024

G190EAN01.0 touch screen LCD display TFT Module 19.0 inch 1280*1024

Product Details:

Place of Origin: CHINA
Brand Name: AUO
Model Number: G190EAN01.0

Payment & Shipping Terms:

Minimum Order Quantity: 1 pcs
Price: Negotiable
Packaging Details: Original packaging/conventional packaging box
Delivery Time: 7 Days
Payment Terms: T/T, Western Union
Supply Ability: 100000 Unit/Units per Month
Get Best Price Contact Now

Detail Information

Manufacturer: AUO Model Name: G190EAN01.0
Screen Size: 19.0 Inch Resolution: 1280(RGB)×1024, SXGA, 86PPI
Screen Type: A-Si TFT-LCD, LCD Module Display Size: 376.32(W)×301.056(H) Mm
Physical Dimension: 396(W)×324(H) ×17.5(D) Mm Visual Size: 380.32(W)×305.06(H) Mm
Luminanceration: 300 Cd/m² (Typ.) Contrast Ratio: 1000:1 (Typ.) (transmission)
Responding Time: 13/12 (Typ.)(Tr/Td) Ms Used For: Industrial / Medical Imaging

Product Description

G190EAN01.0 touch screen LCD display TFT Module 19.0 inch 1280*1024



Product details :



TFT LCD Panel, LCD/LED backlight



A Grade , 100% New Original



In Stock

AUO LCD SCREENGG G190EAN01.0
Panel Brand AUO
Panel Model G190EAN01.0
Panel Size 19.0"
Panel Type a-Si TFT-LCD , LCM
Resolution 1280(RGB)×1024, SXGA, 86PPI
Pixel Format RGB Vertical Stripe
Display Area 376.32(W)×301.056(H) mm
Bezel Opening 380.32(W)×305.06(H) mm
Outline Size 396(W)×324(H) ×17.5(D) mm
Surface Antiglare
Brightness 300 cd/m² (Typ.)
Contrast Ratio 1000:1 (Typ.) (TM)
Viewing Angle 89/89/89/89 (Typ.)(CR≥10)
Display Mode AHVA, Normally Black, Transmissive
Best View on Symmetry
Response Time 13/12 (Typ.)(Tr/Td)
Display Colors 16.7M 72% NTSC
Lamp Type 9S6P WLED , 50K hours , With LED Driver
Frequency 60Hz
Touch Screen Without
Panel Weight 1.55Kgs (Typ.)
Application Industrial / Medical Imaging
Signal Interface LVDS (2 ch, 8-bit) , 30 pins Connector
Input Voltage 5.0V (Typ.)
Environment Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C
G190EAN01.0 touch screen LCD display TFT Module 19.0 inch 1280*1024



Why Choose Us :



According to customers' various requests,


we can match all accessories which inclusive of driver board,


touch-screen, LED backlight & LVDS cables. TFT LCD,


LCD panel, LCD display,LCD screen, LCD monitor,


LCD module from 2.2 inch to 88 inch.


Quality promised, 100% original,fast delivery,


also enjoy one year guarantee !



Shipping and Package :

G190EAN01.0 touch screen LCD display TFT Module 19.0 inch 1280*1024 0



1)All of our product will be testing before shipping . So you can be assured the quality of our products



2) All Panels are packed with new and firm carton, capable of long distance transportation.



3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT



4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.
