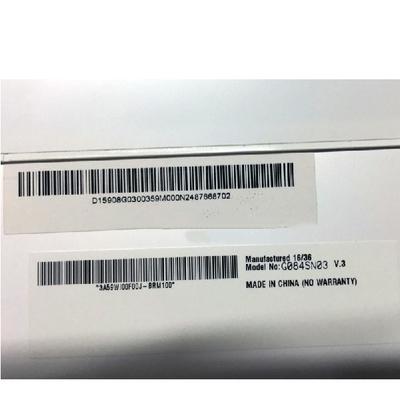

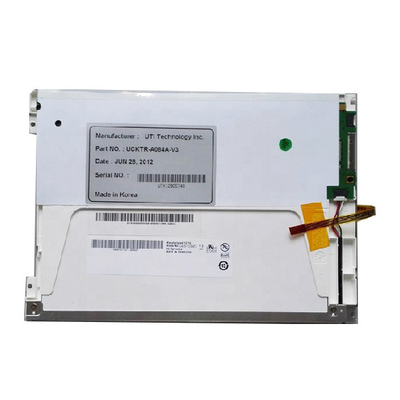

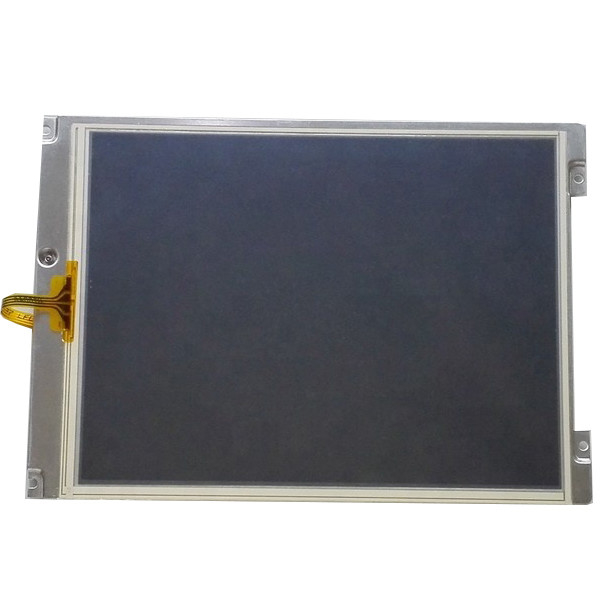

8.4 Inch TFT LCD Display Panel G084SN03 V3 800x600 IPS
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | AUO |
| Model Number: | G084SN03 V3 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Manufacturer: | AUO | Model Name: | G084SN03 V3 |
|---|---|---|---|
| Screen Size: | 8.4 Inch | Resolution: | 800(RGB)×600 [SVGA] 119PPI |
| Screen Type: | A-Si TFT-LCD, LCD Module | Display Size: | 170.4 × 127.8 Mm (H×V) |
| Physical Dimension: | 203(W)×142.5(H) Mm | Visual Size: | 173.8(Horizontal)×131.2(Vertical) Mm |
| Luminanceration: | 250 Cd/m² (Typ.) | Contrast Ratio: | 600:1 (Typ.) (transmission) |
| Responding Time: | 20/10 (Typ.)(Tr/Td) Ms | Used For: | Industry |
| High Light: | 8.4'' tft lcd display panel,G084SN03 tft lcd display panel,8.4'' 600 IPS tft lcd screen |
||
Product Description
G084SN03 V3 8.4 inch industry lcd Panel Display
Product details :
TFT LCD Panel, LCD/LED backlight
A Grade , 100% New Original
In Stock
| AUO LCD SCREEN G084SN03 V3 | |
| manufacturer | AUO |
| Model Name | G084SN03 V3 |
| Diagonal size | 8.4 inch |
| Screen type | a-Si TFT-LCD, LCD module |
| Resolution | 800(RGB)×600 [SVGA] 119PPI |
| Pixel arrangement | RGB vertical bar |
| Display size | 170.4 × 127.8 mm (H×V) |
| physical dimension | 203(W)×142.5(H) mm |
| Visual size | 173.8(Horizontal)×131.2(Vertical) mm |
| Surface treatment | Matte, Hard coating (3H) |
| Display brightness | 250 cd/m² (Typ.) |
| Contrast | 600:1 (Typ.) (transmission) |
| Optical mode | TN, normally white display, transmissive |
| Viewing angle | 80/80/80/60 (Typ.)(CR≥10) |
| responding | 20/10 (Typ.)(Tr/Td) ms |
| Backlight type | WLED [3 strings], 30K hours, with LED driver |
| Refresh rate | 60Hz |
| Interface Type | 20 pins LVDS (1 ch, 6/8-bit), connector |
| Supply voltage | 3.3V (Typ.) |
| Application Environment | Working temperature: -20 ~ 70 °C; Storage temperature: -20 ~ 70 °C |
| G084SN03 V3 8.4 inch industry lcd Panel Display | |
