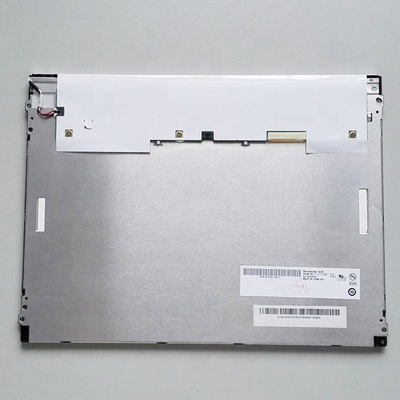

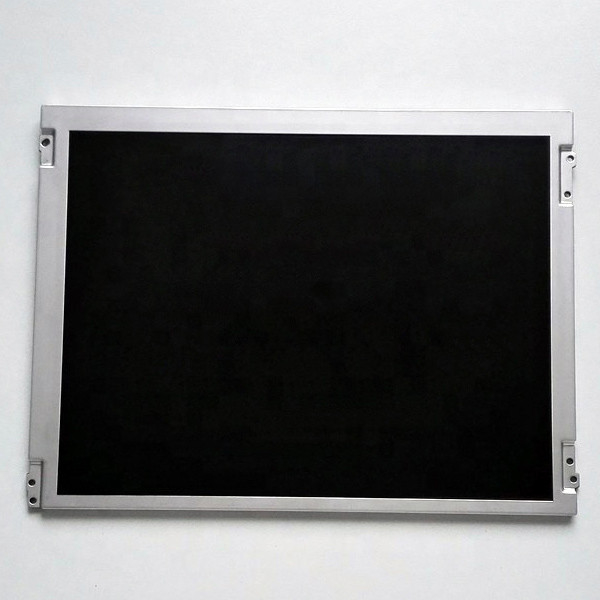

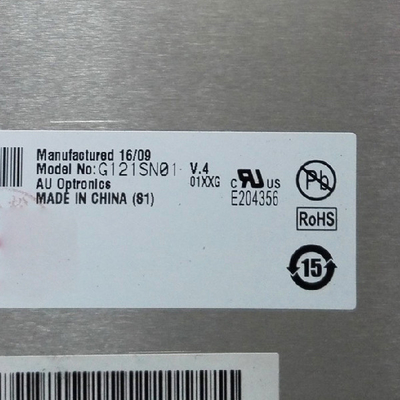

G121SN01 V4 AUO LCD Display 12.1 Inch 800×600 IPS
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | AUO |
| Model Number: | G121SN01 V4 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Manufacturer: | AUO | Model Name: | G121SN01 V4 |
|---|---|---|---|
| Screen Size: | 12.1 Inch | Resolution: | 800(RGB)×600, SVGA, 82PPI |
| Screen Type: | A-Si TFT-LCD, LCD Module | Display Size: | 246(W)×184.5(H) Mm |
| Physical Dimension: | 279(W)×209(H) Mm | Visual Size: | 249.05(W)×188.3(H) Mm |
| Luminanceration: | 450cd/m² (Typ.) | Contrast Ratio: | 700:1 (Typ.) (transmission) |
| Responding Time: | 25/10 (Typ.)(Tr/Td) Ms | Used For: | Industrial |
| High Light: | 600 IPS G121SN01 auo lcd display,600 IPS 12.1 Inch auo lcd display,600 IPS auo lcd panel |
||
Product Description
12.1 inch AUO LCD screen G121SN01 V4 for Industrial LCD Panel Display
Product details :
TFT LCD Panel, LCD/LED backlight
A Grade , 100% New Original
In Stock
| AUO LCD SCREEN G121SN01 V4 | |
| manufacturer | AUO |
| Model Name | G121SN01 V4 |
| screen size | 12.1 inches |
| Screen type | a-Si TFT-LCD , LCM |
| Resolution | 800(RGB)×600, SVGA, 82PPI |
| Pixel configuration | RGB vertical bar |
| Display size | 246(W)×184.5(H) mm |
| physical dimension | 279(W)×209(H) mm |
| Visual size | 249.05(W)×188.3(H) mm |
| surface treatment | Matte, Hard coating (3H) |
| Brightness | 450cd/m² (Typ.) |
| Contrast | 700:1 (Typ.) (TM) |
| Best angle | 6 o'clock |
| Optical mode | TN, normally white display, transmissive |
| Viewing angle | 80/80/65/75 (Typ.)(CR≥10) |
| Responding time | 25/10 (Typ.)(Tr/Td) ms |
| Number of color | 262K/16.2M, 55% NTSC |
| Backlight type | 9S2P WLED, 50K hours, with LED driver |
| Panel weight | 580g (Max.) |
| Apply to | industry |
| Refresh rate | 60Hz |
| Touch function | No touch |
| signal system | LVDS (1 ch, 6/8-bit), 20 pins, connector |
| Supply voltage | 3.3V (Typ.) |
| Maximum rating | Working: -30 ~ 85 °C; Storage: -30 ~ 85 °C |
| 12.1 inch AUO LCD screen G121SN01 V4 for Industrial LCD Panel Display | |
Why Choose Us :
According to customers' various requests,
we can match all accessories which inclusive of driver board,
touch-screen, LED backlight & LVDS cables. TFT LCD,
LCD panel, LCD display,LCD screen, LCD monitor,
LCD module from 2.2 inch to 88 inch.
Quality promised, 100% original,fast delivery,
also enjoy one year guarantee !
Shipping and Package :
1)All of our product will be testing before shipping . So you can be assured the quality of our products
2) All Panels are packed with new and firm carton, capable of long distance transportation.
3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT
4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.
FAQ :
Q: Can You declare my order of G121SN01 V4 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: How to make payment of invoice ?
A: We accept T/T , Paypal , western union .
Q: How long is the warranty ?
A: We offer 90days warranty .
Q: If I place order now,when will you ship the goods of invoice?
A: The order will be shipped within 2-3 working days after received your payment.
We are one of the professional and experienced suppliers of 12.1 inch AUO LCD screen G121SN01 V4 for Industrial LCD Panel Display, offering you the quotation and the price list consultation. Welcome to wholesale the high-end, quality and low price products in stock with us. Good after-sale service and fast delivery are available.
*Pls feel free to contact us for any questions or special requirements . Thank you so much for your coopreation !
