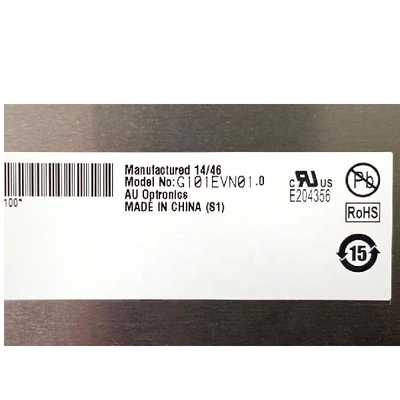

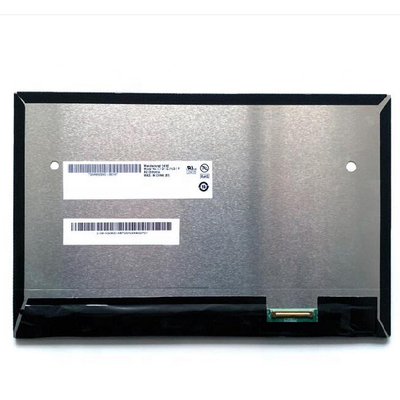

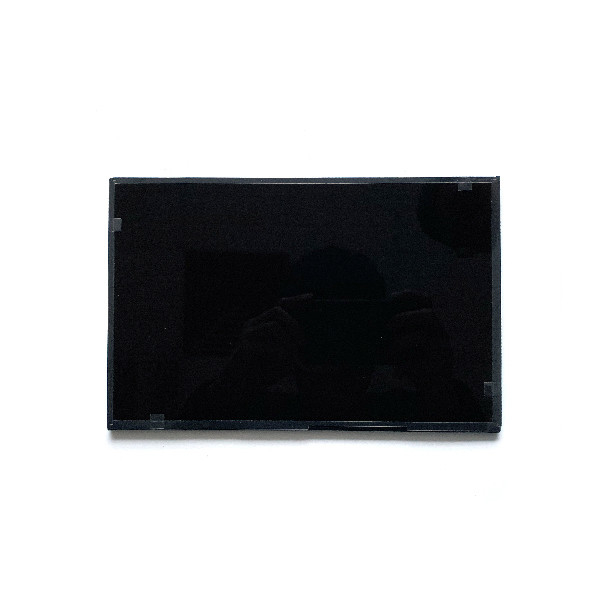

Industrial 10.1 Inch LCD Panel G101EVN01.0 TFT 1280×800 iPS
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | AUO |
| Model Number: | G101EVN01.0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Manufacturer: | AUO | Model Name: | G101EVN01.0 |
|---|---|---|---|
| Screen Size: | 10.1 Inch | Resolution: | 1280(RGB)×800, WXGA, 149PPI |
| Screen Type: | A-Si TFT-LCD, LCD Module | Display Size: | 216.96(W)×135.6(H) Mm |
| Physical Dimension: | 229.46(W)×149.2(H) ×4.96(D) Mm | Visual Size: | 220.36(W)×139.1(H) Mm |
| Luminanceration: | 400cd/m² (Typ.) | Contrast Ratio: | 1300:1 (Typ.) (transmission) |
| Responding Time: | 25 (Typ.)(Tr+Td) | Used For: | Industrial |
| High Light: | Industrial 10.1 inch lcd panel,G101EVN01.0 10.1 inch lcd panel,800 IPS display tft lcd |
||
Product Description
10.1 inch Industrial LCD Panel Display G101EVN01.0 TFT LCD display panel
Product details :
TFT LCD Panel, LCD/LED backlight
A Grade , 100% New Original
In Stock
| AUO LCD SCREEN G101EVN01.0 | |
| Panel Brand | AUO |
| Panel Model | G101EVN01.0 |
| Panel Size | 10.1 inch |
| Resolution | 1280(RGB)×800, WXGA, 149PPI |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 216.96(W)×135.6(H) mm |
| Bezel Opening | 220.36(W)×139.1(H) mm |
| Outline Size | 229.46(W)×149.2(H) ×4.96(D) mm |
| Surface | Hard coating, Reflection 1.5% (Max.) |
| Brightness | 400 cd/m² (Typ.) |
| Contrast Ratio | 1300:1 (Typ.) (TM) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Display Mode | MVA, Normally Black, Transmissive |
| Best View on | Symmetry |
| Response Time | 25 (Typ.)(Tr+Td) |
| Display Colors | 262K 45% NTSC |
| Lamp Type | WLED , 15K hours , With LED Driver |
| Frequency | 60Hz |
| Touch Screen | Without |
| Panel Weight | 187g (Max.) |
| Application | Industrial |
|
Signal Interface |

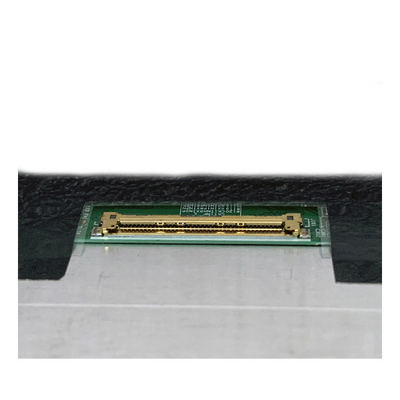

LVDS (1 ch, 6-bit) , 40 pins Connector |
|
Input Voltage |
3.3V (Typ.) |
|
Environment |
Operating Temp.: -20 ~ 60 °C ; Storage Temp.: -30 ~ 70 °C |
| 10.1 inch Industrial LCD Panel Display G101EVN01.0 TFT LCD display panel | |
Why Choose Us :
According to customers' various requests,
we can match all accessories which inclusive of driver board,
touch-screen, LED backlight & LVDS cables. TFT LCD,
LCD panel, LCD display,LCD screen, LCD monitor,
LCD module from 2.2 inch to 88 inch.
Quality promised, 100% original,fast delivery,
also enjoy one year guarantee !
Shipping and Package :
1)All of our product will be testing before shipping . So you can be assured the quality of our products
2) All Panels are packed with new and firm carton, capable of long distance transportation.
3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT
4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.
FAQ :
Q: Can you give me a discount if I need a large quantity of G101EVN01.0 ?
A: Of course!If you make a large order, we will give you a discount.
Q: Can You declare my order of G101EVN01.0 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: Can I pay my order of G101EVN01.0 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: How long will I receive my goods G101EVN01.0 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
We are one of the professional and experienced suppliers of 10.1 inch Industrial LCD Panel Display G101EVN01.0 TFT LCD display panel, offering you the quotation and the price list consultation. Welcome to wholesale the high-end, quality and low price products in stock with us. Good after-sale service and fast delivery are available.
*Pls feel free to contact us for any questions or special requirements . Thank you so much for your coopreation !
