640x480 IPS Industrial LCD Panel Display G057VN01 V2 5.7 Inch
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | AUO |
| Model Number: | G057VN01 V2 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Manufacturer: | AUO | Model Name: | G057VN01 V2 |
|---|---|---|---|
| Screen Size: | 5.7 Inch | Resolution: | 640(RGB)×480 [VGA] 141PPI |
| Screen Type: | A-Si TFT-LCD, LCD Module | Display Size: | 115.2(H)×86.4(V) Mm |
| Physical Dimension: | 144(H)×104.6(V) ×12.8(D) Mm | Visual Size: | 118.2(H)×89.4(V) Mm |
| Luminanceration: | 700cd/m² (Typ.) | Contrast Ratio: | 800:1 (Typ.) (transmission) |
| Responding Time: | 15/10 (Typ.)(Tr/Td) | Used For: | Industrial |
| High Light: | 480 IPS Industrial LCD Panel Display,G057VN01 Industrial LCD Panel Display,640 IPS IPS 5.7 tft lcd display |
||
Product Description

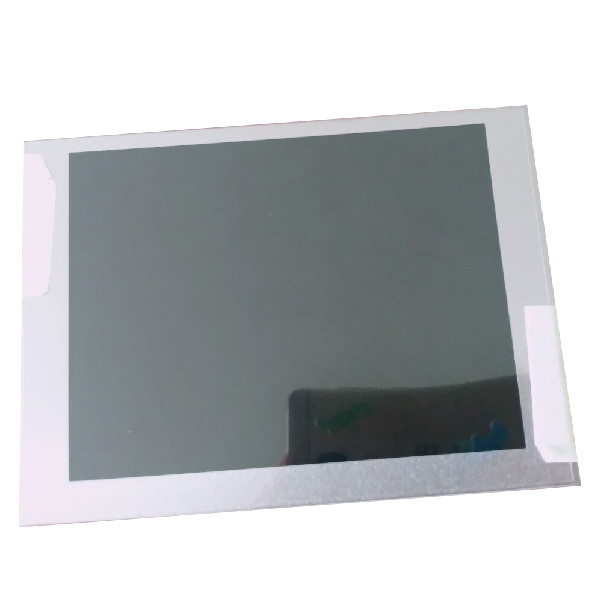

AUO 640*480 G057VN01 V2 5.7 inch Industrial LCD Panel Display
Product details :
TFT LCD Panel, LCD/LED backlight
A Grade , 100% New Original
In Stock
| AUO LCD SCREEN G057VN01 V2 | |
| Manufacturer | AUO |
| G057VN01 V2 | G057VN01 V2 |
| Diagonal Size | 5.7 inch |
| Type | a-Si TFT-LCD, LCM |
| Pixel Number | 640(RGB)×480 [VGA] 141PPI |
| Configuration | RGB Vertical Stripe |
| Active Area | 115.2(H)×86.4(V) mm |
| Outline Dim. | 144(H)×104.6(V) ×12.8(D) mm |
| Bezel Area | 118.2(H)×89.4(V) mm |
| Treatment | Antiglare, Hard coating (3H) |
| Luminance | 700 cd/m² (Typ.) |
| Contrast Ratio | 800:1 (Typ.) (TM) |
| View Direction | 12 o'clock |
| Response Time | 15/10 (Typ.)(Tr/Td) |
| Viewing Angle | 80/80/70/70 (Typ.)(CR≥10) |
| Operating Mode | TN, Normally White, Transmissive |
| Support Color | 262K 50% NTSC |
| Light Source | WLED , 50K hours , With LED Driver |
| Weight | 150/165g (Typ./Max.) |
| Designed For | Industrial |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| Interface Type | CMOS (1 ch, 6-bit) , 33 pins Connector |
| Power Supply | 3.3V (Typ.) |
| Environment | Operating Temperature: -30 ~ 85 °C ; Storage Temperature: -30 ~ 85 °C |
| AUO 640*480 G057VN01 V2 5.7 inch Industrial LCD Panel Display | |
Why Choose Us :
According to customers' various requests,
we can match all accessories which inclusive of driver board,
touch-screen, LED backlight & LVDS cables. TFT LCD,
LCD panel, LCD display,LCD screen, LCD monitor,
LCD module from 2.2 inch to 88 inch.
Quality promised, 100% original,fast delivery,
also enjoy one year guarantee !
Shipping and Package :
1)All of our product will be testing before shipping . So you can be assured the quality of our products
2) All Panels are packed with new and firm carton, capable of long distance transportation.
3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT
4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.
FAQ :
Q: Can I pay my order of G057VN01 V2 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: Can You declare my order of G057VN01 V2 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: How long is the warranty ?
A: We offer 90 days warranty .
Q: How to make payment of G057VN01 V2 ?
A: We accept T/T , Paypal , western union .
We are one of the professional and experienced suppliers of AUO 640*480 G057VN01 V2 5.7 inch Industrial LCD Panel Display, offering you the quotation and the price list consultation. Welcome to wholesale the high-end, quality and low price products in stock with us. Good after-sale service and fast delivery are available.
*Pls feel free to contact us for any questions or special requirements . Thank you so much for your coopreation !
