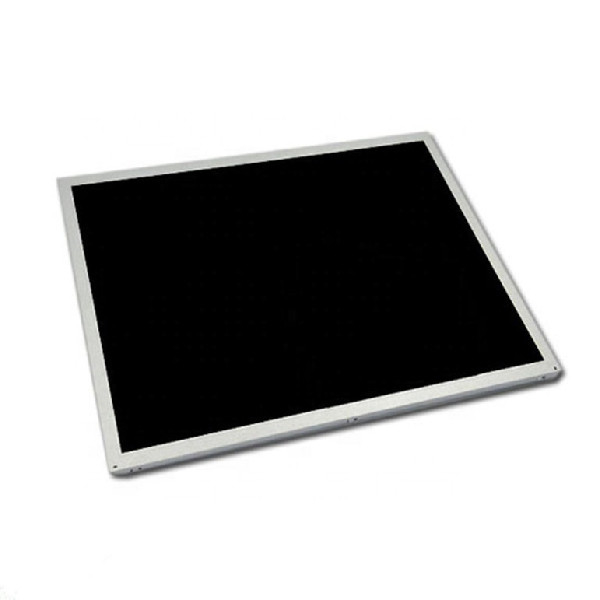

15 Inch G156XW01 V1 Industrial LCD Panel Display With LED Driver
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | AUO |
| Model Number: | G156XW01 V1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Manufacturer: | AUO | Model Name: | G156XW01 V1 |
|---|---|---|---|
| Screen Size: | 15.6 Inch | Resolution: | 1366(RGB)×768, WXGA, 100PPI |
| Screen Type: | A-Si TFT-LCD, LCD Module | Display Size: | 344.232 × 193.536 (H×V) |
| Physical Dimension: | 363.8 × 215.9 × 17.35 (H×V×D) | Visual Size: | 347.54 × 196.83 (H×V) |
| Luminanceration: | 400cd/m² (Typ.) | Contrast Ratio: | 500:1 (Typ.) (transmission) |
| Responding Time: | 6/2 (Typ.)(Tr/Td) Ms | Used For: | Industrial |
| High Light: | 15'' Industrial LCD Panel Display,G156XW01 Industrial LCD Panel Display,Industrial 15 inch lcd display panel |
||
Product Description
15 Inch LCD Display G156XW01 V1 Industrial LCD Panel Display With LED Driver
Product details :
| AUO LCD SCREENGG G156XW01 V1 | |
| Manufacturer | AUO |
| Model Name | G156XW01 V1 |
| Screen Size | 15.6" |
| Screen Type | LCM , a-Si TFT-LCD |
| Pixel Number | 1366(RGB)×768, WXGA, 100PPI |
| Arrangement | RGB Vertical Stripe |
| Active Area(mm) | 344.232 × 193.536 (H×V) |
| Outline(mm) | 363.8 × 215.9 × 17.35 (H×V×D) |
| Bezel Area(mm) | 347.54 × 196.83 (H×V) |
| Treatment | Antiglare, Hard coating (3H) |
| Luminance | 400 (Typ.)(cd/m²) |
| Contrast Ratio | 500 : 1 (Typ.) (TM) |
| Viewing Angle | 85/85/80/80 (Typ.)(CR≥10) |
| Work Mode | TN, Normally White, Transmissive |
| Response | 6/2 (Typ.)(Tr/Td) ms |
| Color Depth | 16.2M 70% NTSC |
| Backlight | WLED , 50K hours , With LED Driver |
| Mass | 1.25/1.35Kgs (Typ./Max.) |
| Used for | Industrial |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | LVDS (1 ch, 8-bit) , 30 pins Connector |
| Voltage Supply | 5.0V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 60 °C |
| 15 Inch LCD Display G156XW01 V1 Industrial LCD Panel Display With LED Driver | |
