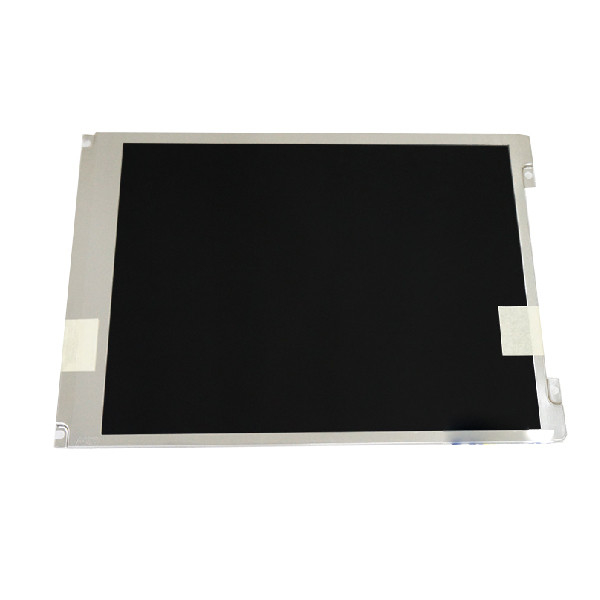

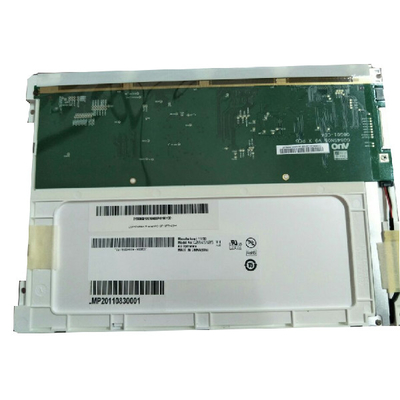

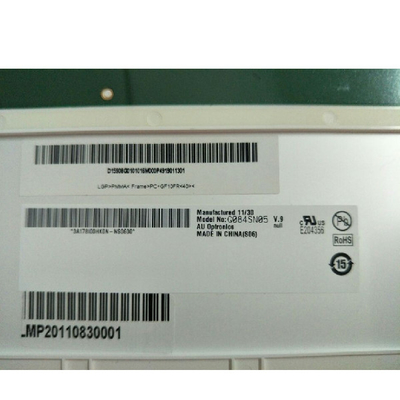

G084SN05 V9 Industrial LCD Panel Display 8.4 Inch TFT
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | AUO |
| Model Number: | G084SN05 V9 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Manufacturer: | AUO | Model Name: | G084SN05 V9 |
|---|---|---|---|
| Screen Size: | 8.4 Inch | Resolution: | 800(RGB)×600, SVGA, 119PPI |
| Screen Type: | A-Si TFT-LCD, LCD Module | Display Size: | 170.4(W)×127.8(H) Mm |
| Physical Dimension: | 203(width)×142.5(height) ×8(thickness)mm | Visual Size: | 174.15(W)×131.2(H) Mm |
| Luminanceration: | 450 Cd/m² (Typ.) | Contrast Ratio: | 600 : 1 (Typ.) (TM) |
| Best Angle: | 6 O'clock | Used For: | Industrial |
| High Light: | G084SN05 Industrial LCD Panel Display,8.4'' Industrial LCD Panel Display,Industrial lcd tft display panel |
||
Product Description
G084SN05 V9 Industrial LCD Panel Display 8.4 inch lcd screen
Product details :
TFT LCD Panel, LCD/LED backlight
A Grade , 100% New Original
In Stock
| AUO LCD SCREEN G084SN05 V9 | |
| manufacturer | AUO |
| Model Name | G084SN05 V9 |
| screen size | 8.4 inches |
| Screen type | a-Si TFT-LCD, LCD module |
| Resolution | 800(RGB)×600, SVGA, 119PPI |
| Pixel configuration | RGB vertical bar |
| Display size | 170.4(W)×127.8(H) mm |
| physical dimension | 203(width)×142.5(height) ×8(thickness)mm |
| Visual size | 174.15(W)×131.2(H) mm |
| surface treatment | Matte, Hard coating (3H) |
| Brightness | 450cd/m² (Typ.) |
| Contrast | 600:1 (Typ.) (TM) |
| Best angle | 6 o'clock |
| Optical mode | TN, normally white display, transmissive |
| Viewing angle | 80/80/80/60 (Typ.)(CR≥10) |
| Responding time | 20/10 (Typ.)(Tr/Td)ms |
| Number of color | 262K/16.2M, 45% NTSC |
| Backlight type | 2 strings WLED, 50K hours, with LED driver |
| Panel weight | 250g (Typ.) |
| Apply to | industry |
| Refresh rate | 60Hz |
| Touch function | No touch |
| signal system | LVDS (1 ch, 6/8-bit), 20 pins, connector |
| Supply voltage | 3.3V (Typ.) |
| Maximum rating | Working: -30 ~ 85 °C; Storage: -30 ~ 85 °C |
| G084SN05 V9 Industrial LCD Panel Display 8.4 inch lcd screen | |
Why Choose Us :
According to customers' various requests,
we can match all accessories which inclusive of driver board,
touch-screen, LED backlight & LVDS cables. TFT LCD,
LCD panel, LCD display,LCD screen, LCD monitor,
LCD module from 2.2 inch to 88 inch.
Quality promised, 100% original,fast delivery,
also enjoy one year guarantee !
Shipping and Package :
1)All of our product will be testing before shipping . So you can be assured the quality of our products
2) All Panels are packed with new and firm carton, capable of long distance transportation.
3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT
4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.
FAQ :
Q: Can I pay my order of G084SN05 V9 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: Can you give me a discount if I need a large quantity of G084SN05 V9 ?
A: Of course!If you make a large order, we will give you a discount.
Q: Do you accept sample orders of G084SN05 V9 ?
A: Of course!sample order is welcome !
Q: How long will I receive my goods G084SN05 V9 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
We are one of the professional and experienced suppliers of G084SN05 V9 Industrial LCD Panel Display 8.4 inch lcd screen, offering you the quotation and the price list consultation. Welcome to wholesale the high-end, quality and low price products in stock with us. Good after-sale service and fast delivery are available.
*Pls feel free to contact us for any questions or special requirements . Thank you so much for your coopreation !
