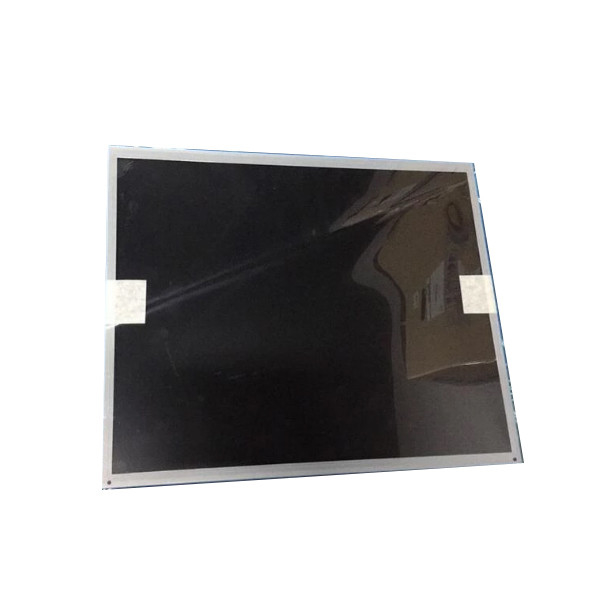

17 Inch G170EG01 V1 Tft 1280*1024 30pins Industrial LCD Panel Display
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | AUO |
| Model Number: | G170EG01 V1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Manufacturer: | AUO | Model Name: | G170EG01 V1 |
|---|---|---|---|
| Screen Size: | 17.0 Inches | Resolution: | 1280(RGB)×1024, SXGA, 96PPI |
| Screen Type: | A-Si TFT-LCD, LCD Module | Display Size: | 337.92(W)×270.336(H) Mm |
| Physical Dimension: | 358.5(width)×296.5(height) ×18(thickness) Mm | Visual Size: | 341.6(W)×274.0(H) Mm |
| Luminanceration: | 350 Cd/m² (Typ.) | Contrast Ratio: | 800 : 1 (Typ.) (TM) |
| Best Angle: | 6 O'clock | Used For: | Industrial |
Product Description
17 inch G170EG01 V1 tft 1280*1024 30pins Industrial LCD Panel Display
Product details :
TFT LCD Panel, LCD/LED backlight
A Grade , 100% New Original
In Stock
| AUO LCD SCREEN G170EG01 V1 | |
| manufacturer | AUO |
| Model Name | G170EG01 V1 |
| screen size | 17.0 inches |
| Screen type | a-Si TFT-LCD, LCD module |
| Resolution | 1280(RGB)×1024, SXGA, 96PPI |
| Pixel configuration | RGB vertical bar |
| Display size | 337.92(W)×270.336(H) mm |
| physical dimension | 358.5(width)×296.5(height) ×18(thickness) mm |
| Visual size | 341.6(W)×274.0(H) mm |
| surface treatment | Matte, Hard coating (3H) |
| Brightness | 350cd/m² (Typ.) |
| Contrast | 800:1 (Typ.) (TM) |
| Best angle | 6 o'clock |
| Optical mode | TN, normally white display, transmissive |
| Viewing angle | 80/80/60/80 (Typ.)(CR≥10) |
| Responding time | 20/10 (Typ.)(Tr/Td) ms |
| Number of color | 16.7M, 72% NTSC |
| Backlight type | WLED , 50K hours , With LED Driver |
| Panel weight | 1.35Kgs (Typ.) |
| Apply to | industry |
| Refresh rate | 60Hz |
| Touch function | No touch |
| signal system | LVDS (2 ch, 8-bit) , 30 pins, connector |
| Supply voltage | 5.0V (Typ.) |
| Maximum rating | Working: -30 ~ 85 °C; Storage: -30 ~ 85 °C |
| 17 inch G170EG01 V1 tft 1280*1024 30pins Industrial LCD Panel Display | |
Why Choose Us :
According to customers' various requests,
we can match all accessories which inclusive of driver board,
touch-screen, LED backlight & LVDS cables. TFT LCD,
LCD panel, LCD display,LCD screen, LCD monitor,
LCD module from 2.2 inch to 88 inch.
Quality promised, 100% original,fast delivery,
also enjoy one year guarantee !
Shipping and Package :
1)All of our product will be testing before shipping . So you can be assured the quality of our products
2) All Panels are packed with new and firm carton, capable of long distance transportation.
3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT
4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.
FAQ :
Q: Can You declare my order of G170EG01 V1 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: How long is the warranty ?
A: We offer 90days warranty .
Q: How to make payment of G170EG01 V1 ?
A: We accept T/T , Paypal , western union .
Q: How can I trace my order of G170EG01 V1 ?
A: we will give you tracking number then you can trace your order from website.
We are one of the professional and experienced suppliers of 17 inch G170EG01 V1 tft 1280*1024 30pins Industrial LCD Panel Display, offering you the quotation and the price list consultation. Welcome to wholesale the high-end, quality and low price products in stock with us. Good after-sale service and fast delivery are available.
*Pls feel free to contact us for any questions or special requirements . Thank you so much for your coopreation !
