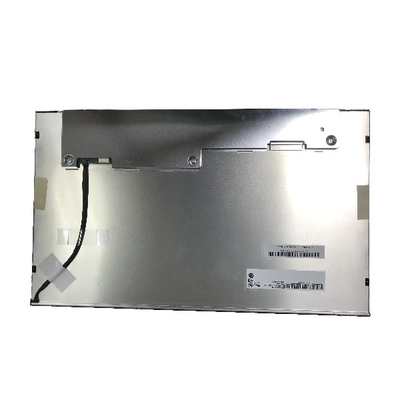

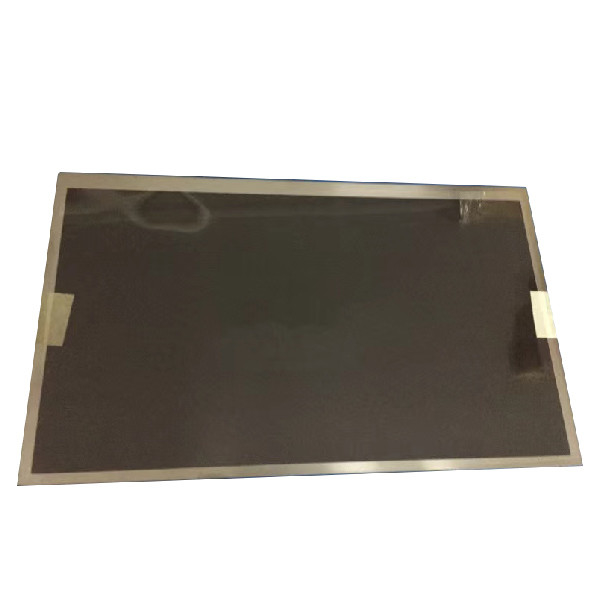

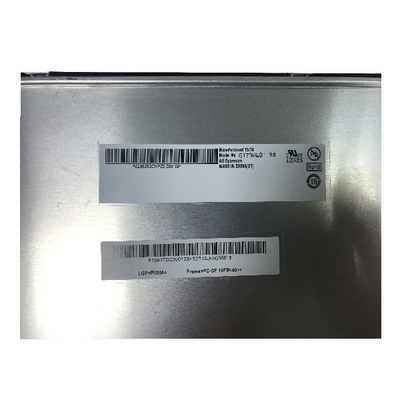

New And Original 17.3 Inch Industrial LCD Panel Display G173HW01 V0
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | AUO |
| Model Number: | G173HW01 V0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Manufacturer: | AUO | Model Name: | G173HW01 V0 |
|---|---|---|---|
| Screen Size: | 1.73 Inch | Resolution: | 1920(RGB)×1080, FHD, 127PPI |
| Screen Type: | A-Si TFT-LCD, LCD Module | Display Size: | 381.888(W)×214.812(H) Mm |
| Physical Dimension: | 403(W)×240(H) ×13(D) Mm | Visual Size: | 385.09(W)×218.01(H) Mm |
| Luminanceration: | 400 Cd/m² (Typ.) | Contrast Ratio: | 600 : 1 (Typ.) (TM) |
| Response Time: | 37/3 (Typ.)(Tr/Td) | Used For: | Industrial |
Product Description
new and original 17.3 inch Industrial LCD Panel Display G173HW01 V0
Product details :
TFT LCD Panel, LCD/LED backlight
A Grade , 100% New Original
In Stock
| AUO LCD SCREEN G173HW01 V0 | |
| Panel Brand | AUO |
| Panel Model | G173HW01 V0 |
| Panel Size | 17.3" |
| Resolution | LCM , a-Si TFT-LCD |
| Resolution | 1920(RGB)×1080, FHD, 127PPI |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 381.888(W)×214.812(H) mm |
| Bezel Opening | 385.09(W)×218.01(H) mm |
| Outline Size | 403(W)×240(H) ×13(D) mm |
| Surface | Glare (Haze 0%), Hard coating (3H) |
| Brightness | 400 cd/m² (Typ.) |
| Contrast Ratio | 600:1 (Typ.) (TM) |
| Viewing Angle | 80/80/60/80 (Typ.)(CR≥10) |
| Display Mode | TN, Normally White, Transmissive |
| Response Time | 37/3 (Typ.)(Tr/Td) |
| Display Colors | 16.7M 72% NTSC |
| Lamp Type | WLED , 50K hours , With LED Driver |
| Frequency | 60Hz |
| Touch Screen | Without |
| Panel Weight | 1.08Kgs (Typ.) |
| Application | Industrial |
| Signal Interface | LVDS (2 ch, 8-bit) , 30 pins Connector |
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating Temp.: 0 ~ 70 °C ; Storage Temp.: -30 ~ 75 °C |
| new and original 17.3 inch Industrial LCD Panel Display G173HW01 V0 | |
Why Choose Us :
According to customers' various requests,
we can match all accessories which inclusive of driver board,
touch-screen, LED backlight & LVDS cables. TFT LCD,
LCD panel, LCD display,LCD screen, LCD monitor,
LCD module from 2.2 inch to 88 inch.
Quality promised, 100% original,fast delivery,
also enjoy one year guarantee !
Shipping and Package :
1)All of our product will be testing before shipping . So you can be assured the quality of our products
2) All Panels are packed with new and firm carton, capable of long distance transportation.
3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT
4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.
FAQ :
Q: Do you accept sample orders of G173HW01 V0 ?
A: Of course! Sample order is welcome.
Q: Can I pay my order of G173HW01 V0 vai credit card?
A: Yes! You can use your credit card through your Paypal account.
Q: How long is the warranty ?
A: We offer 90 days warranty.
Q: If I place order now, when will you ship the goods of G173HW01 V0 ?
A: The order will be shipped within 2-3 working days after received your payment.
We are one of the professional and experienced suppliers of new and original 17.3 inch Industrial LCD Panel Display G173HW01 V0, offering you the quotation and the price list consultation. Welcome to wholesale the high-end, quality and low price products in stock with us. Good after-sale service and fast delivery are available.
*Pls feel free to contact us for any questions or special requirements . Thank you so much for your coopreation !
