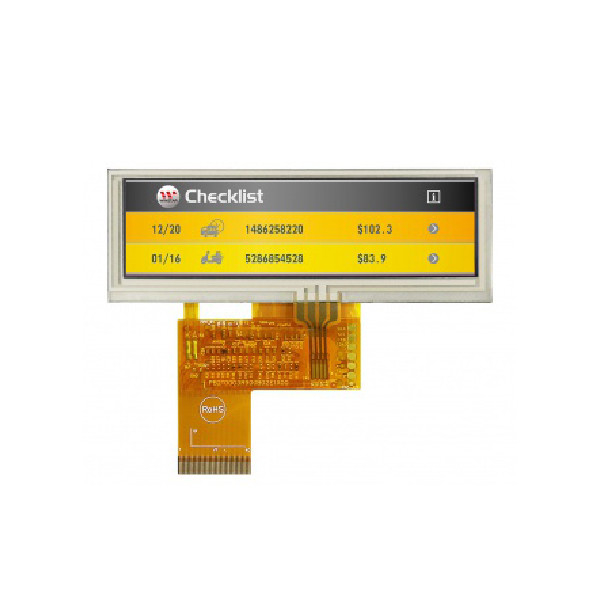

480x128 IPS Winstar Stretched Bar LCD TFT Display 3.9 Inch WF39BTZASDNN0
Product Details:
| Place of Origin: | China |
| Brand Name: | Winstar |
| Model Number: | WF39BTZASDNN0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Manufacturer: | Winstar | Model Name: | WF39BTZASDNN0 |
|---|---|---|---|
| Screen Size: | 3.9 " (1/2 Cut Of 4.3") | Resolution: | 480×128(RGB) 128PPI |
| Active Area(mm): | 95.04(H)×25.34(V) Mm | Outline(mm): | 105.5(H)×37(V) ×3.25(D) Mm |
| Bezel Area(mm): | 97.04(H)×27.34(V) Mm | Brightness: | 400 Cd/m² (Typ.) |
| Contrast Ratio: | 500:1 (Typ.) (TM) | Apply To: | Industrial / Stretched Bar LCD |
| High Light: | 128 IPS Stretched Bar LCD,3.9'' Stretched Bar LCD,3.9'' WF39BTZASDNN0 tft lcd display |
||
Product Description
480x128 Winstar 3.9 inch WF39BTZASDNN0 Stretched Bar LCD TFT Display
Product details :
TFT LCD Panel, LCD/LED backlight
A Grade , 100% New Original
In Stock
| Winstar LCD SCREEN WF39BTZASDNN0 | |
| manufacturer | Winstar |
| Model Name | WF39BTZASDNN0 |
| screen size | 3.9 inch (1/2 cut of 4.3") |
| Screen type | a-Si TFT-LCD , LCM |
| Resolution | 480×128(RGB) 128PPI |
| Pixel configuration | RGB Horizontal Stripe |
| Active Area(mm) | 95.04(H)×25.34(V) mm |
| Outline(mm) | 105.5(H)×37(V) ×3.25(D) mm |
| Bezel Area(mm) | 97.04(H)×27.34(V) mm |
| surface treatment | Antiglare |
| Brightness | 400 cd/m² (Typ.) |
| Contrast | 500 : 1 (Typ.) (TM) |
| Optical mode | TN, Normally White, Transmissive |
| Good View at | 6 o'clock |
| Viewing Angle | 75/75/75/75 (Typ.)(CR≥10) |
| Number of color | 16.7M |
| Backlight type | WLED , W/O Driver |
| Apply to | Industrial / Stretched Bar LCD |
| Touch function | Without |
| signal system | Parallel RGB (1 ch, 8-bit) , 40 pins FPC |
| Supply voltage | 3.3V (Typ.) |
| Maximum rating | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
| 480x128 Winstar 3.9 inch WF39BTZASDNN0 Stretched Bar LCD TFT Display | |
Why Choose Us :
According to customers' various requests,
we can match all accessories which inclusive of driver board,
touch-screen, LED backlight & LVDS cables. TFT LCD,
LCD panel, LCD display,LCD screen, LCD monitor,
LCD module from 2.2 inch to 88 inch.
Quality promised, 100% original,fast delivery,
also enjoy one year guarantee !
Shipping and Package :
1)All of our product will be testing before shipping . So you can be assured the quality of our products
2) All Panels are packed with new and firm carton, capable of long distance transportation.
3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT
4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.
FAQ :
Q: Can You declare my order of WF39BTZASDNN0 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: How long will I receive my goods WF39BTZASDNN0 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: Can you give me a discount if I need a large quantity of WF39BTZASDNN0 ?
A: Of course!If you make a large order, we will give you a discount.
Q: How to make payment of WF39BTZASDNN0 ?
A: We accept T/T , Paypal , western union .
We are one of the professional and experienced suppliers of 480x128 Winstar 3.9 inch WF39BTZASDNN0 Stretched Bar LCD TFT Display, offering you the quotation and the price list consultation. Welcome to wholesale the high-end, quality and low price products in stock with us. Good after-sale service and fast delivery are available.
*Pls feel free to contact us for any questions or special requirements . Thank you so much for your coopreation !
