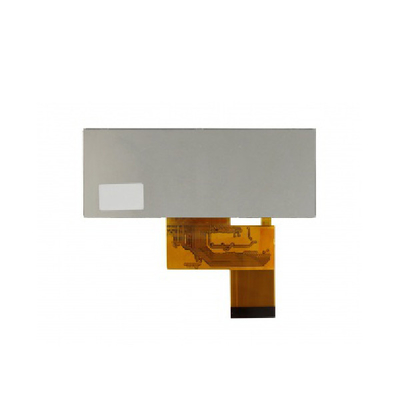

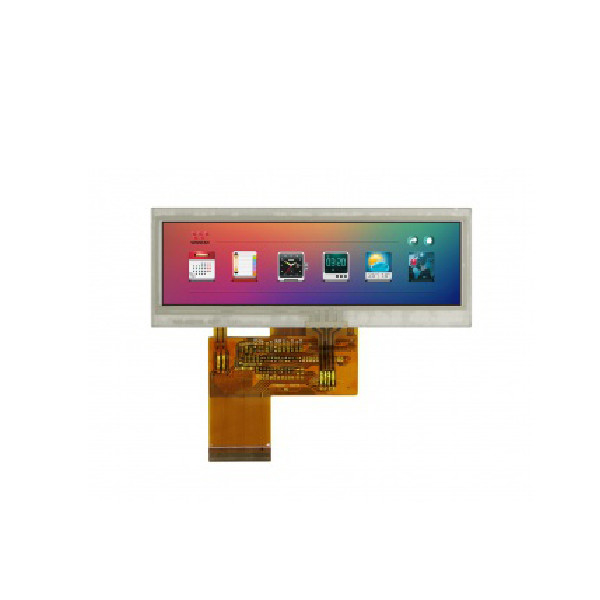

128PPI WF39ATIASDNT0 LCD Display Screen Panel 480×128

128PPI WF39ATIASDNT0 LCD Display Screen Panel 480×128

Product Details:

Place of Origin: China
Brand Name: Winstar
Model Number: WF39ATIASDNT0

Payment & Shipping Terms:

Minimum Order Quantity: 1 pcs
Price: Negotiable
Packaging Details: Original packaging/conventional packaging box
Delivery Time: 7 Days
Payment Terms: T/T, Western Union
Supply Ability: 100000 Unit/Units per Month
Get Best Price Contact Now

Detail Information

Manufacturer: Winstar Model Name: WF39ATIASDNT0
Screen Size: 3.9" (1/2 Cut Of 4.3") Resolution: 480(RGB)×128, 128PPI
Active Area: 95.04(W)×25.34(H) Mm Outline: 105.5(W)×40.64(H) ×4.65(D) Mm
Bezel Opening: 97.8(W)×27.1(H) Mm Brightness: 350 Cd/m² (Typ.)
Display Colors: 16.7M Apply To: Industrial / Stretched Bar LCD
High Light:

WF39ATIASDNT0 lcd display screen panel

,

128PPI lcd display screen panel

,

128PPI 128 lcd screen display panel

Product Description

New WF39ATIASDNT0 lcd panel display



Product details :



TFT LCD Panel, LCD/LED backlight



A Grade , 100% New Original



In Stock

Winstar LCD SCREEN WF39ATIASDNT0
manufacturer Winstar
Model Name WF39ATIASDNT0
screen size 3.9" (1/2 cut of 4.3")
Screen type a-Si TFT-LCD , LCM
Resolution 480(RGB)×128, 128PPI
Pixel configuration RGB Vertical Stripe
Display size 95.04(W)×25.34(H) mm
physical dimension 95.04(W)×25.34(H) mm
Visual size 97.8(W)×27.1(H) mm
surface treatment Antiglare
Brightness 350cd/m² (Typ.)
Optical mode TN, Normally White, Transmissive
Viewing angle 70/70/50/50 (Typ.)(CR≥10)
Number of color 16.7M
Backlight type WLED , Without Driver
Apply to Industrial / Stretched Bar LCD
Touch function 4-wire Resistive Touch
signal system Parallel RGB (1 ch, 8-bit) , 40 pins FPC
Supply voltage 3.3V (Typ.)
Maximum rating Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C
New WF39ATIASDNT0 lcd panel display



Why Choose Us :



According to customers' various requests,


we can match all accessories which inclusive of driver board,


touch-screen, LED backlight & LVDS cables. TFT LCD,


LCD panel, LCD display,LCD screen, LCD monitor,


LCD module from 2.2 inch to 88 inch.


Quality promised, 100% original,fast delivery,


also enjoy one year guarantee !



Shipping and Package :

128PPI WF39ATIASDNT0 LCD Display Screen Panel 480×128 0



1)All of our product will be testing before shipping . So you can be assured the quality of our products



2) All Panels are packed with new and firm carton, capable of long distance transportation.



3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT



4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.



FAQ :



Q:Can I pay my order of WF39ATIASDNT0 via credit card ?

A:Yes!you can use your credit card through your Paypal account.



Q: How long is the warranty ?

A: We offer 90 days warranty .



Q:Can You declare my order of WF39ATIASDNT0 to a lower price in commercial invoice for customs ?

A: Yes , we can . pls inform us before shipping .



Q:How to make payment of WF39ATIASDNT0 ?

A:We accept T/T , Paypal , western union .





We are one of the professional and experienced suppliers of New WF39ATIASDNT0 lcd panel display, offering you the quotation and the price list consultation. Welcome to wholesale the high-end, quality and low price products in stock with us. Good after-sale service and fast delivery are available.



*Pls feel free to contact us for any questions or special requirements . Thank you so much for your coopreation !
