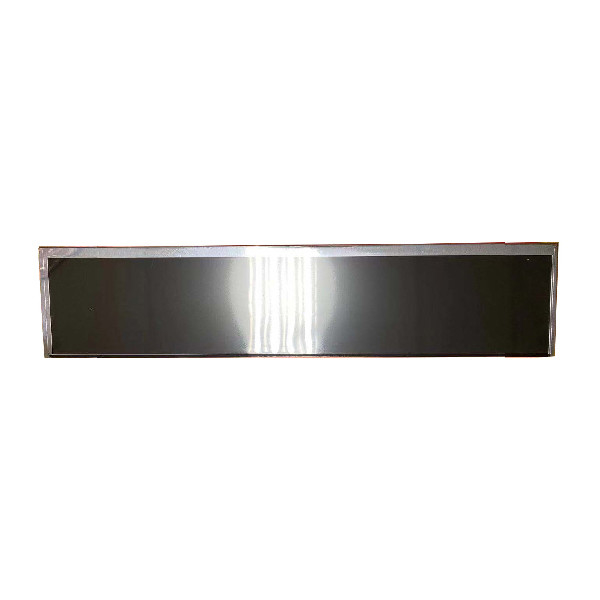

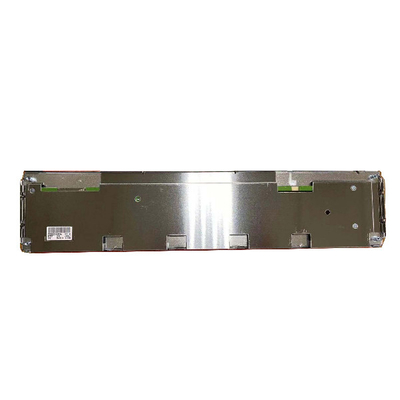

20 Pins LVDS Stretched Bar LCD 14.9 Inch TX38D25VM0CAA
Product Details:
| Place of Origin: | China |
| Brand Name: | KOE |
| Model Number: | TX38D25VM0CAA |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Manufacturer: | KOE | Model Name: | TX38D25VM0CAA |
|---|---|---|---|
| Screen Size: | 14.9 Inch (Native Bar) | Resolution: | 1280(RGB)×242 87PPI |
| Active Area(mm): | 372.48 × 70.42 (H×V) | Outline(mm): | 386.82 × 85.57 (H×V×D) |
| Luminance: | 450 Cd/m² (Typ.) | Response: | 25 (Typ.)(Tr+Td) Ms |
| Contrast: | 800 : 1 (Typ.) (TM) | Apply To: | Industrial / Stretched Bar LCD |
| High Light: | TX38D25VM0CAA 20 Pins Stretched Bar LCD,TX38D25VM0CAA LVDS Stretched Bar LCD,TX38D25VM0CAA lcd display modules |
||
Product Description
20 pins LVDS 14.9 inch TX38D25VM0CAA lcd display modules for Stretched Bar Lcd and Industrial
Product details :
TFT LCD Panel, LCD/LED backlight
A Grade , 100% New Original
In Stock
| KOE LCD SCREEN TX38D25VM0CAA | |
| manufacturer | KOE |
| Model Name | TX38D25VM0CAA |
| screen size | 14.9 inch (Native bar) |
| Screen type | LCM, a-Si TFT-LCD |
| Resolution | 1280(RGB)×242 87PPI |
| Pixel configuration | RGB Vertical Stripe |
| Display size | 372.48 × 70.42 (H×V) |
| physical dimension | 386.82 × 85.57 (H×V×D) |
| Brightness | 450 cd/m² (Typ.) |
| Contrast | 800:1 (Typ.) (TM) |
| Best angle | Full view |
| Optical mode | IPS NP, Normally Black, Transmissive |
| Viewing angle | 85/85/85/85 (Typ.)(CR≥10) |
| Responding time | 25 (Typ.)(Tr+Td) ms |
| Number of color | 262K 67% NTSC |
| Backlight type | WLED , 70K hours , With LED Driver |
| Panel weight | 556g (Typ.) |
| Apply to | Industrial / Stretched Bar LCD |
| Refresh rate | 60Hz |
| Touch function | No touch |
| signal system | LVDS (1 ch, 6-bit) , Connector 20 pins |
| Supply voltage | 3.3V (Typ.) |
| Maximum rating | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C ; Vibration Level: 2.0G (19.6 m/s²) |
| 20 pins LVDS 14.9 inch TX38D25VM0CAA lcd display modules for Stretched Bar Lcd and Industrial | |
Why Choose Us :
According to customers' various requests,
we can match all accessories which inclusive of driver board,
touch-screen, LED backlight & LVDS cables. TFT LCD,
LCD panel, LCD display,LCD screen, LCD monitor,
LCD module from 2.2 inch to 88 inch.
Quality promised, 100% original,fast delivery,
also enjoy one year guarantee !
Shipping and Package :
1)All of our product will be testing before shipping . So you can be assured the quality of our products
2) All Panels are packed with new and firm carton, capable of long distance transportation.
3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT
4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.
FAQ :
Q: Can you give me a discount if I need a large quantity of TX38D25VM0CAA ?
A: Of course!If you make a large order, we will give you a discount.
Q: How can I trace my order of TX38D25VM0CAA ?
A: we will give you tracking number then you can trace your order from website.
Q: Can I pay my order of TX38D25VM0CAA via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: How long is the warranty ?
A: We offer 90 days warranty .
We are one of the professional and experienced suppliers of 20 pins LVDS 14.9 inch TX38D25VM0CAA lcd display modules for Stretched Bar Lcd and Industrial, offering you the quotation and the price list consultation. Welcome to wholesale the high-end, quality and low price products in stock with us. Good after-sale service and fast delivery are available.
*Pls feel free to contact us for any questions or special requirements . Thank you so much for your coopreation !
