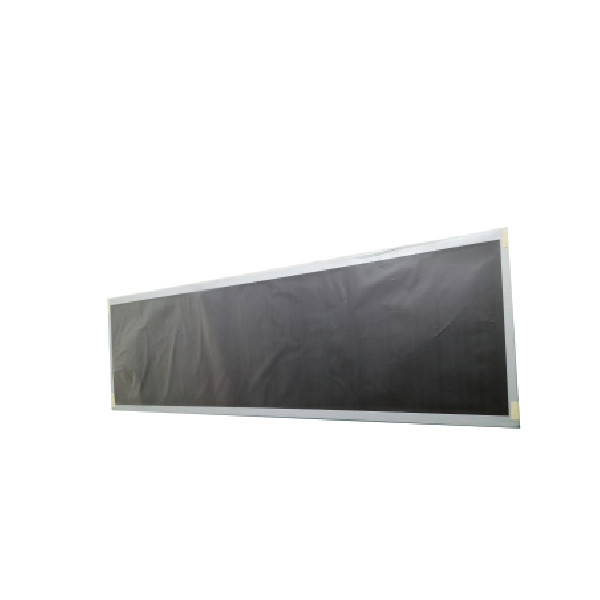

Innolux Digital Signage Stretched Bar LCD 29 Inch S290AJ1-LE2
Product Details:
| Place of Origin: | China |
| Brand Name: | Innolux |
| Model Number: | S290AJ1-LE2 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Manufacturer: | Innolux | Model Name: | S290AJ1-LE2 |
|---|---|---|---|
| Screen Size: | 28.6 Inch (1/2 Cut Of 32.0") | Resolution: | 1920(RGB)×540 69PPI |
| Active Area: | 698.4(H)×196.425(V) Mm | Outline Dim.: | 720.8(H)×226.3(V) ×30.2(D) Mm |
| Bezel Area: | 702.4(H)×200.4(V) Mm | Luminance: | 500 Cd/m² (Typ.) |
| Contrast: | 4500:1 (Typ.) (TM) | Apply To: | Digital Signage / Stretched Bar LCD |
| High Light: | Innolux Stretched Bar LCD,S290AJ1-LE2 29'' Stretched Bar LCD,S290AJ1-LE2 digital signage lcd screen |
||
Product Description
Innolux digital signage advertising panel screen 29 inch stretched bar lcd screen S290AJ1-LE2
Product details :
TFT LCD Panel, LCD/LED backlight
A Grade , 100% New Original
In Stock
| Innolux LCD SCREEN S290AJ1-LE2 | |
| manufacturer | Innolux |
| Model Name | S290AJ1-LE2 |
| screen size | 28.6 inch (1/2 cut of 32.0") |
| Screen type | a-Si TFT-LCD , LCM |
| Resolution | 1920(RGB)×540 69PPI |
| Pixel configuration | RGB Vertical Stripe |
| Display size | 698.4(H)×196.425(V) mm |
| physical dimension | 720.8(H)×226.3(V) ×30.2(D) mm |
| Visual size | 702.4(H)×200.4(V) mm |
| surface treatment | Antiglare (Haze 1%), Hard coating (3H) |
| Brightness | 500cd/m² (Typ.) |
| Contrast | 4500:1 (Typ.) (TM) |
| Best angle | Full view |
| Optical mode | Super MVA, Normally Black, Transmissive |
| Viewing angle | 88/88/88/88 (Typ.)(CR≥10) |
| Responding time | 8.5 (Typ.)(G to G)ms |
| Number of color | 16.7M 72% NTSC |
| Backlight type | WLED , 30K hours , With LED Driver |
| Panel weight | 2.39/2.51/2.64Kgs (Min./Typ./Max.) |
| Apply to | Digital Signage / Stretched Bar LCD |
| Refresh rate | 60Hz |
| Touch function | No touch |
| signal system | LVDS (2 ch, 8-bit) , 51 pins Connector |
| Supply voltage | 12.0V (Typ.) |
| Maximum rating | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| Innolux digital signage advertising panel screen 29 inch stretched bar lcd screen S290AJ1-LE2 | |
