• S091WX02 Stretched Bar LCD 9.1 Inch 1280×480 IPS
  • S091WX02 Stretched Bar LCD 9.1 Inch 1280×480 IPS

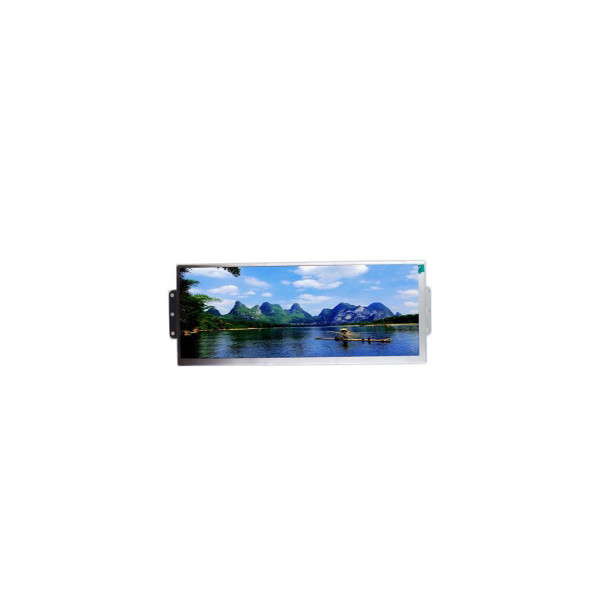

S091WX02 Stretched Bar LCD 9.1 Inch 1280×480 IPS

S091WX02 Stretched Bar LCD 9.1 Inch 1280×480 IPS

Product Details:

Place of Origin: China
Brand Name: CDTECH
Model Number: S091WX02

Payment & Shipping Terms:

Minimum Order Quantity: 1 pcs
Price: Negotiable
Packaging Details: Original packaging/conventional packaging box
Delivery Time: 7 Days
Payment Terms: T/T, Western Union
Supply Ability: 100000 Unit/Units per Month
Get Best Price Contact Now

Detail Information

Manufacturer: CDTECH Model Name: S091WX02
Screen Size: 9.1" (3/5 Cut Of 10.1") Resolution: 1280(RGB)×480, DVGA, 149PPI
Active Area: 216.96(W)×81.36(H) Mm Outline Dim.: 231.6(W)×94.7(H) Mm
Bezel Area: 220.46(W)×84.86(H) Mm Luminance: 500 Cd/m² (Typ.)
Contrast: 800:1 (Typ.) (TM) Apply To: Industrial / Stretched Bar LCD
High Light:

9.1'' Stretched Bar LCD

,

480 IPS Stretched Bar LCD

,

1280 IPS stretched bar monitor

Product Description

New Stretched Bar LCD screen S091WX02



Product details :



TFT LCD Panel, LCD/LED backlight



A Grade , 100% New Original



In Stock

CDTECH LCD SCREEN S091WX02
manufacturer CDTECH
Model Name S091WX02
screen size 9.1" (3/5 cut of 10.1")
Screen type a-Si TFT-LCD , LCM
Resolution 1280(RGB)×480, DVGA, 149PPI
Pixel configuration RGB Vertical Stripe
Display size 216.96(W)×81.36(H) mm
physical dimension 231.6(W)×94.7(H) mm
Visual size 220.46(W)×84.86(H) mm
Brightness 500cd/m² (Typ.)
Contrast 800:1 (Typ.) (TM)
Best angle Full view
Optical mode IPS, Normally Black, Transmissive
Viewing angle 85/85/85/85 (Typ.)(CR≥10)
Responding time 10/15 (Typ.)(Tr/Td)ms
Number of color 16.7M
Backlight type 3S12P WLED , 30K hours , Without Driver
Panel weight TBD
Apply to Industrial / Stretched Bar LCD
Refresh rate 60Hz
Touch function No touch
signal system LVDS (1 ch, 8-bit) , 40 pins Connector
Supply voltage 2.5/8.2/22/-7V (Typ.)(VDD/AVDD/VGH/VGL)
Maximum rating Operating Temp.: -10 ~ 60 °C ; Storage Temp.: -20 ~ 70 °C
New Stretched Bar LCD screen S091WX02



Why Choose Us :



According to customers' various requests,


we can match all accessories which inclusive of driver board,


touch-screen, LED backlight & LVDS cables. TFT LCD,


LCD panel, LCD display,LCD screen, LCD monitor,


LCD module from 2.2 inch to 88 inch.


Quality promised, 100% original,fast delivery,


also enjoy one year guarantee !



Shipping and Package :

S091WX02 Stretched Bar LCD 9.1 Inch 1280×480 IPS 0



1)All of our product will be testing before shipping . So you can be assured the quality of our products



2) All Panels are packed with new and firm carton, capable of long distance transportation.



3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT



4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.



FAQ :



Q: Can I pay my order of S091WX02 via credit card ?

A: Yes!you can use your credit card through your Paypal account.



Q: Can you give me a discount if I need a large quantity of S091WX02 ?

A: Of course!If you make a large order, we will give you a discount.



Q: How can I trace my order of S091WX02 ?

A: we will give you tracking number then you can trace your order from website.



Q: Can You declare my order of S091WX02 to a lower price in commercial invoice for customs ?

A: Yes , we can . pls inform us before shipping .





We are one of the professional and experienced suppliers of New Stretched Bar LCD screen S091WX02, offering you the quotation and the price list consultation. Welcome to wholesale the high-end, quality and low price products in stock with us. Good after-sale service and fast delivery are available.



*Pls feel free to contact us for any questions or special requirements . Thank you so much for your coopreation !

Want to Know more details about this product
I am interested in S091WX02 Stretched Bar LCD 9.1 Inch 1280×480 IPS could you send me more details such as type, size, quantity, material, etc.
Thanks!
Waiting for your reply.
