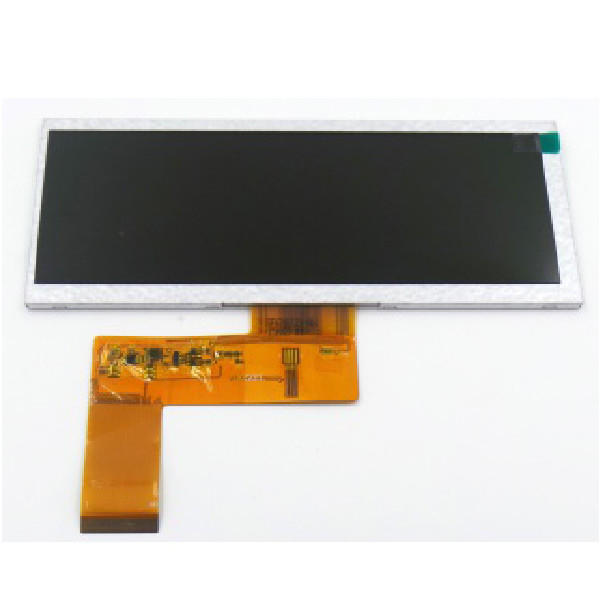

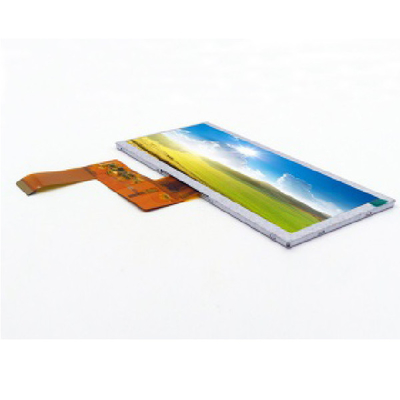

S065WV03 Stretched Bar LCD A-Si LCD Module TFT 6.5 Inch
Product Details:
| Place of Origin: | China |
| Brand Name: | CDTECH |
| Model Number: | S065WV03 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Manufacturer: | CDTECH | Model Name: | S065WV03 |
|---|---|---|---|
| Screen Size: | 6.5 Inch (2/3 Cut Of 7.0") | Resolution: | 800(RGB)×320 133PPI |
| Active Area: | 154.08(H)×57.28(V) Mm | Outline Dim.: | 165(H)×72.86(V) Mm |
| Bezel Area: | 156.7(H)×60.66(V) Mm | Luminance: | 500 Cd/m² (Typ.) |
| Contrast: | 500:1 (Typ.) (TM) | Apply To: | Industrial / Stretched Bar LCD |
| High Light: | S065WV03 TFT Stretched Bar LCD,6.5 Inch Stretched Bar LCD,320 IPS lcd module tft |
||
Product Description
S065WV03 a-Si TFT lcd Module
Product details :
TFT LCD Panel, LCD/LED backlight
A Grade , 100% New Original
In Stock
| CDTECH LCD SCREEN S065WV03 | |
| manufacturer | CDTECH |
| Model Name | S065WV03 |
| screen size | 6.5 inch (2/3 cut of 7.0") |
| Screen type | a-Si TFT-LCD , LCM |
| Resolution | 800(RGB)×320 133PPI |
| Pixel configuration | RGB Vertical Stripe |
| Display size | 154.08(H)×57.28(V) mm |
| physical dimension | 165(H)×72.86(V) mm |
| Visual size | 156.7(H)×60.66(V) mm |
| Brightness | 500cd/m² (Typ.) |
| Contrast | 500:1 (Typ.) (TM) |
| Best angle | 12 o'clock |
| Optical mode | TN, Normally White, Transmissive |
| Viewing angle | 65/65/55/65 (Typ.)(CR≥10) |
| Responding time | 10/15 (Typ.)(Tr/Td)ms |
| Number of color | 16.7M 55% NTSC |
| Backlight type | WLED [3S7P] , 30K hours , W/O Driver |
| Panel weight | TBD |
| Apply to | Industrial / Stretched Bar LCD |
| Refresh rate | 60Hz |
| Touch function | No touch |
| signal system | Parallel RGB (1 ch, 8-bit) 40 pins FPC |
| Supply voltage | 3.3/3.3V (Max.)(VDD/AVDD) |
| Maximum rating | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C |
| S065WV03 a-Si TFT lcd Module | |
