LTA149B780F Stretched Bar LCD Backlight 14.9 Inch 1280×390 IPS
Product Details:
| Place of Origin: | China |
| Brand Name: | Toshiba Matsushita |
| Model Number: | LTA149B780F |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Manufacturer: | Toshiba Matsushita | Model Name: | LTA149B780F |
|---|---|---|---|
| Screen Size: | 14.9 Inch (Native Bar) | Resolution: | 1280(RGB)×390 90PPI |
| Physical Dimension: | 407.5 × 136 × 20.5 (H×V×D) | Display Size: | 699.84(W)×131.22(H) Mm |
| Mass: | 890g (Typ.) | Brightness: | 400 Cd/m² (Typ.) |
| Contrast: | 500:1 (Typ.) (TM) | Apply To: | Industrial / Stretched Bar LCD |
| High Light: | LTA149B780F Stretched Bar LCD,14.9'' Stretched Bar LCD,390 IPS display panel lcd |
||
Product Description

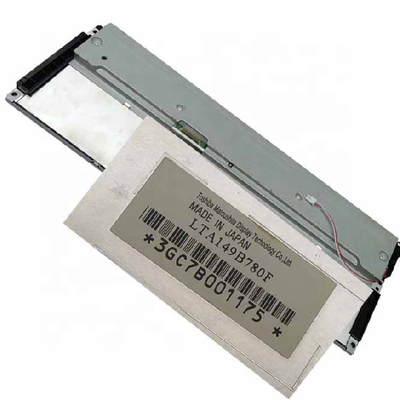

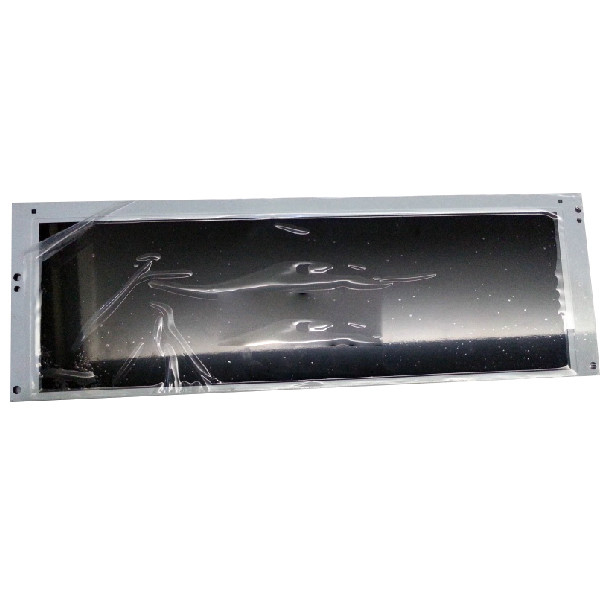

LTA149B780F stretched bar LCD backlight 14.9 inch display
Product details :
TFT LCD Panel, LCD/LED backlight
A Grade , 100% New Original
In Stock
| Toshiba Matsushita LCD SCREEN LTA149B780F | |
| manufacturer | Toshiba Matsushita |
| Model Name | LTA149B780F |
| screen size | 14.9 inch (Native bar) |
| Screen type | LCM , a-Si TFT-LCD |
| Resolution | 1280(RGB)×390 90PPI |
| Pixel configuration | RGB Vertical Stripe |
| Display size | 360.94 × 109.98 (H×V) |
| physical dimension | 407.5 × 136 × 20.5 (H×V×D) |
| surface treatment | Glare (Haze 0%) |
| Brightness | 400cd/m² (Typ.) |
| Contrast | 500:1 (Typ.) (TM) |
| Best angle | 6 o'clock |
| Optical mode | TN, Normally White, Transmissive |
| Viewing angle | 80/80/45/75 (Typ.)(CR≥10) |
| Responding time | 10/20 (Typ.)(Tr/Td) ms |
| Number of color | 262K |
| Backlight type | 2 pcs CCFL , No Driver |
| Panel weight | 890g (Typ.) |
| Apply to | Industrial / Stretched Bar LCD |
| Refresh rate | 60Hz |
| Touch function | No touch |
| signal system | LVDS (1 ch, 6-bit) , 20 pins Connector |
| Supply voltage | 3.3V (Typ.) |
| Maximum rating | Storage Temp.: -20 ~ 70 °C Operating Temp.: -10 ~ 65 °C |
| LTA149B780F stretched bar LCD backlight 14.9 inch display | |
Why Choose Us :
According to customers' various requests,
we can match all accessories which inclusive of driver board,
touch-screen, LED backlight & LVDS cables. TFT LCD,
LCD panel, LCD display,LCD screen, LCD monitor,
LCD module from 2.2 inch to 88 inch.
Quality promised, 100% original,fast delivery,
also enjoy one year guarantee !
Shipping and Package :
1)All of our product will be testing before shipping . So you can be assured the quality of our products
2) All Panels are packed with new and firm carton, capable of long distance transportation.
3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT
4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.
FAQ :
Q: Can You declare my order of LTA149B780F to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: Can you give me a discount if I need a large quantity of LTA149B780F ?
A: Of course!If you make a large order, we will give you a discount.
Q: How to make payment of LTA149B780F ?
A: We accept T/T , Paypal , western union .
Q: Can I pay my order of LTA149B780F via credit card ?
A: Yes!you can use your credit card through your Paypal account.
We are one of the professional and experienced suppliers of LTA149B780F stretched bar LCD backlight 14.9 inch display, offering you the quotation and the price list consultation. Welcome to wholesale the high-end, quality and low price products in stock with us. Good after-sale service and fast delivery are available.
*Pls feel free to contact us for any questions or special requirements . Thank you so much for your coopreation !
