Stretched Bar LCD

16.4 Inch LB164WH1-SJA1 Stretched Bar LCD 1366×238 IPS

All Category

Floor Standing Digital Signage

16.4 Inch LB164WH1-SJA1 Stretched Bar LCD 1366×238 IPS

Brand Name:	AUO
Model Number:	LB164WH1-SJA1
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Ratings & Reviews

Detail Information

Place of Origin:

China

Manufacturer:

Model Name:

LB164WH1-SJA1

Screen Size:

16.4" (1/3 Cut Of 18.5")

Resolution:

1366(RGB)×238, 84PPI

Display Size:

409.8(W)×71.4(H) Mm

Physical Dimension:

424.8(W)×82.1(H) ×1.8(D) Mm

Brightness:

0 Cd/m² (Typ.)

Contrast:

1000:1 (Typ.) (TM)

Transmissivity:

4.4% (Typ.)(with Polarizer)

Apply To:

Industrial / Digital Signage / Stretched Bar LCD

Supply Ability:

100000 Unit/Units per Month

Highlight:

238 IPS 16.4'' Stretched Bar LCD

238 IPS Stretched Bar LCD

1366 IPS stretched lcd display

Product Description

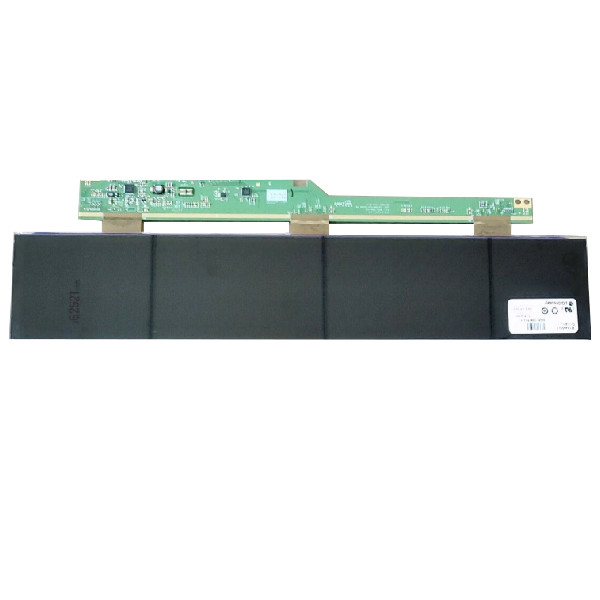

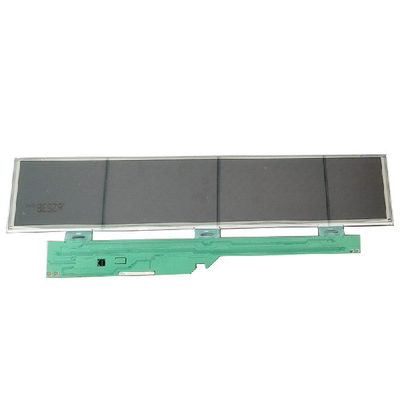

Monitors 16.4 inch LB164WH1-SJA1 LCD TFT CELL Lcd Screen Replacement

Product details :

TFT LCD Panel, LCD/LED backlight

A Grade , 100% New Original

In Stock

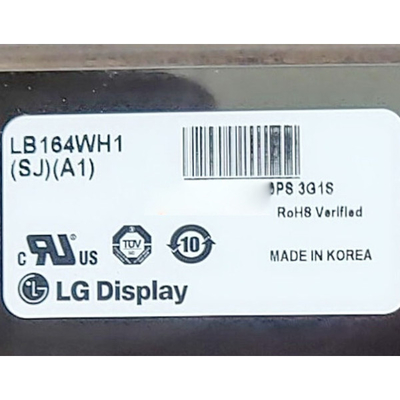

LG Display LCD SCREEN LB164WH1-SJA1
manufacturer	LG Display
Model Name	LB164WH1-SJA1
screen size	16.4 inch (1/3 cut of 18.5")
Screen type	a-Si TFT-LCD , CELL
Resolution	1366(RGB)×238, 84PPI
Pixel configuration	RGB Vertical Stripe
Display size	409.8(W)×71.4(H) mm
physical dimension	424.8(W)×82.1(H) ×1.8(D) mm
surface treatment	Antiglare (Haze 25%)
Brightness	0cd/m² (Typ.)
Contrast	1000:1 (Typ.) (TM)
Best angle	Full view
Optical mode	IPS, Normally Black, Transmissive
Viewing angle	89/89/89/89 (Typ.)(CR≥10)
Responding time	14 (Typ.)(G to G)ms
Transmissivity	4.4% (Typ.)(with Polarizer)
Number of color	16.7M 72% NTSC
Backlight type	No B/L
Panel weight	119g (Typ.)
Apply to	Industrial / Digital Signage / Stretched Bar LCD
Refresh rate	60Hz
Touch function	No touch
signal system	LVDS (1 ch, 8-bit) , 30 pins Connector
Supply voltage	5.0V (Typ.)
Maximum rating	Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C
Monitors 16.4 inch LB164WH1-SJA1 LCD TFT CELL Lcd Screen Replacement

Why Choose Us :

According to customers' various requests,

we can match all accessories which inclusive of driver board,

touch-screen, LED backlight & LVDS cables. TFT LCD,

LCD panel, LCD display,LCD screen, LCD monitor,

LCD module from 2.2 inch to 88 inch.

Quality promised, 100% original,fast delivery,

also enjoy one year guarantee !

Shipping and Package :

16.4 Inch LB164WH1-SJA1 Stretched Bar LCD 1366×238 IPS 0

1)All of our product will be testing before shipping . So you can be assured the quality of our products

2) All Panels are packed with new and firm carton, capable of long distance transportation.

3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT

4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.

FAQ :

Q: Can you give me a discount if I need a large quantity of LB164WH1-SJA1 ?

A: Of course!If you make a large order, we will give you a discount.

Q: How can I trace my order of LB164WH1-SJA1 ?

A: we will give you tracking number then you can trace your order from website.

Q: Can I pay my order of LB164WH1-SJA1 via credit card ?

A: Yes!you can use your credit card through your Paypal account.

Q: How long is the warranty ?

A: We offer 90 days warranty .

We are one of the professional and experienced suppliers of Monitors 16.4 inch LB164WH1-SJA1 LCD TFT CELL Lcd Screen Replacement, offering you the quotation and the price list consultation. Welcome to wholesale the high-end, quality and low price products in stock with us. Good after-sale service and fast delivery are available.

*Pls feel free to contact us for any questions or special requirements . Thank you so much for your coopreation !
