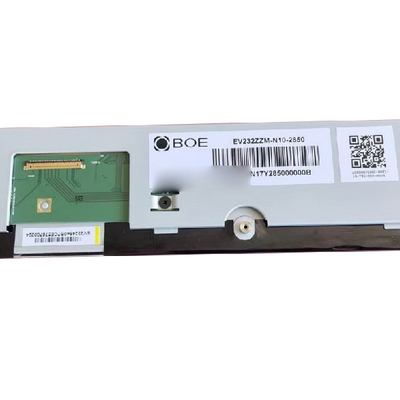

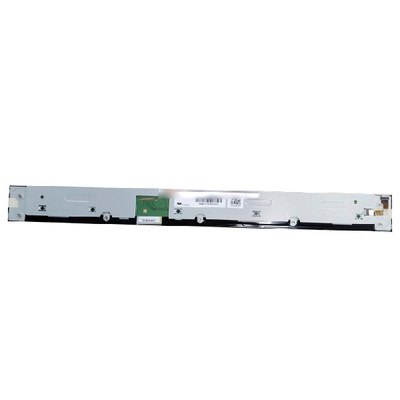

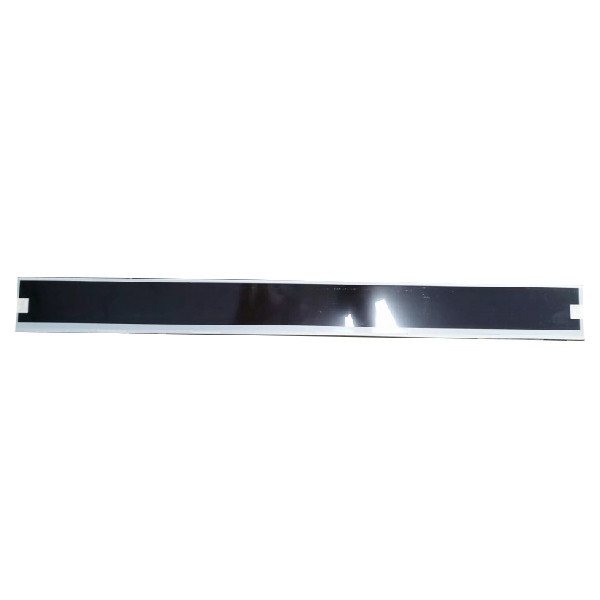

lcd screen display EV232ZZM-N10
Product Details:
| Place of Origin: | China |
| Brand Name: | BOE |
| Model Number: | EV232ZZM-N10 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Manufacturer: | BOE | Model Name: | EV232ZZM-N10 |
|---|---|---|---|
| Screen Size: | 23.2 Inch | Resolution: | 1280(RGB)×92, 55PPI |
| Display Size: | 588.48(W)×42.297(H) Mm | Physical Dimension: | 598.38(W)×56.897(H) Mm |
| Visual Size: | 589.48(W)×44.297(H) Mm | Brightness: | 500 Cd/m² (Typ.) |
| Contrast: | 900:1 (Typ.) (TM) | Apply To: | Digital Signage / Stretched Bar LCD |
Product Description
lcd screen display EV232ZZM-N10
Product details :
TFT LCD Panel, LCD/LED backlight
A Grade , 100% New Original
In Stock
| BOE LCD SCREEN EV232ZZM-N10 | |
| manufacturer | BOE |
| Model Name | EV232ZZM-N10 |
| screen size | 23.2 inch |
| Screen type | a-Si TFT-LCD , LCM |
| Resolution | 1280(RGB)×92, 55PPI |
| Pixel configuration | RGB Vertical Stripe |
| Display size | 588.48(W)×42.297(H) mm |
| physical dimension | 598.38(W)×56.897(H) mm |
| Visual size | 589.48(W)×44.297(H) mm |
| Brightness | 500cd/m² (Typ.) |
| Contrast | 900:1 (Typ.) (TM) |
| Optical mode | ADS, Normally Black, Transmissive |
| Viewing angle | 80/80/70/60 (Typ.)(CR≥10) |
| Responding time | 15 (Typ.)(Tr+Td)ms |
| Number of color | 16.7M 72% NTSC |
| Backlight type | 10S8P WLED , Without Driver |
| Apply to | Digital Signage / Stretched Bar LCD |
| Refresh rate | 60Hz |
| Touch function | No touch |
| signal system | LVDS (1 ch, 8-bit) , 40 pins Connector |
| Supply voltage | 5.0V (Typ.) |
| Maximum rating | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
| lcd screen display EV232ZZM-N10 | |
Why Choose Us :
According to customers' various requests,
we can match all accessories which inclusive of driver board,
touch-screen, LED backlight & LVDS cables. TFT LCD,
LCD panel, LCD display,LCD screen, LCD monitor,
LCD module from 2.2 inch to 88 inch.
Quality promised, 100% original,fast delivery,
also enjoy one year guarantee !
Shipping and Package :
1)All of our product will be testing before shipping . So you can be assured the quality of our products
2) All Panels are packed with new and firm carton, capable of long distance transportation.
3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT
4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.
FAQ :
Q: Can You declare my order of EV232ZZM-N10 at a very low value ?
A: Yes , we can . pls inform us before shipping .
Q: How can I trace my order of BOE EV232ZZM-N10 ?
A: we will give you tracking number then you can trace your order form website.
Q: Can you give me a discount if I need a large quantity of EV232ZZM-N10 ?
A: Of course!If you make a large order, we will give you a discount.
Q: I do not find the LCD I am looking for in the website, what should I do ?
A: You can give us some pictures,we have a lot of LCD out of shelves.
We are one of the professional and experienced suppliers of lcd screen display EV232ZZM-N10, offering you the quotation and the price list consultation. Welcome to wholesale the high-end, quality and low price products in stock with us. Good after-sale service and fast delivery are available.
*Pls feel free to contact us for any questions or special requirements . Thank you so much for your coopreation !
