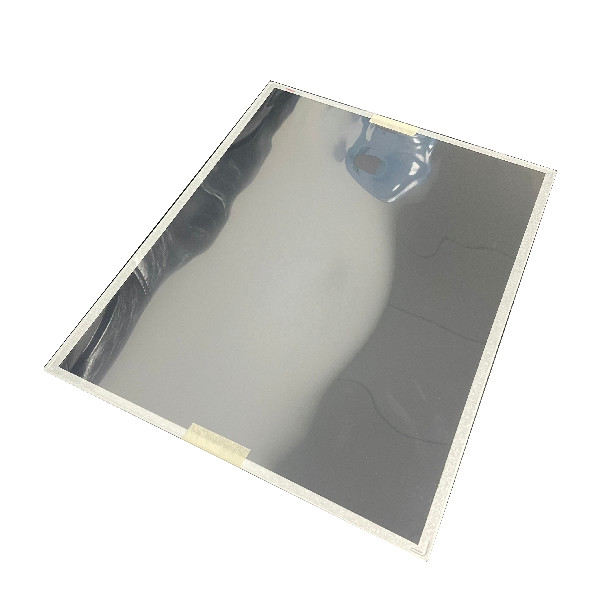

19 Inch 330 nits 1280*1024 LCD Square Panel for LB190E02-SL03
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | LG Display |
| Model Number: | LB190E02-SL03 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Manufacturer: | LG Display | Model Name: | LB190E02-SL03 |
|---|---|---|---|
| Screen Size: | 19.0 Inch | Resolution: | 1280(RGB)×1024 [SXGA] 86PPI |
| Display Size: | 376.32(H)×301.056(V) Mm | Physical Dimension: | 396(H)×324(V) ×13.3(D) Mm |
| Bezel Area: | 380.3(H)×305.0(V) Mm | Brightness: | 330 Cd/m² (Typ.) |
| Contrast: | 900 : 1 (Typ.) (TM) | Apply To: | Industrial / Medical Imaging |
Product Description
19 Inch 330 nits 1280*1024 LCD Square Panel for LB190E02-SL03
Product details :
TFT LCD Panel, LCD/LED backlight
A Grade , 100% New Original
In Stock
| LG Display LCD SCREEN LB190E02-SL03 | |
| Manufacturer | LG Display |
| Model Name | LB190E02-SL03 |
| Screen Size | 19.0 inches |
| Panel type | a-Si TFT-LCD, LCM |
| Number of pixels | 1280(RGB)×1024, SXGA, 86PPI |
| Pixel layout | RGB vertical bar |
| Display area | 376.32(W)×301.056(H) mm |
| Viewable area | 380.3(W)×305.0(H) mm |
| physical dimension | 396(W)×324(H) ×13.3(D) mm |
| Surface treatment | Matte, Hard coating (3H) |
| Panel brightness | 330 cd/m2 (Typ.) |
| Contrast | 900:1 (Typ.) (TM) |
| Viewing angle | 89/89/89/89 (Typ.)(CR≥10) |
| Operating mode | IPS, normally black display, transmissive |
| Best perspective | Full view |
| Reaction time | 11/7 (Typ.)(Tr/Td) ms |
| Display color | 16.7M, 74% NTSC |
| type of light source | 4 strings WLED, 50K hours, without driver |
| working frequency | 60Hz |
| Panel weight | 1.25/1.30Kgs (Typ./Max.) |
| Signal interface | LVDS (2 ch, 8-bit), 30 pins, connector |
| Drive screen voltage | 5.0V (Typ.) |
| working environment | Working: 0 ~ 60 °C; Storage: -20 ~ 70 °C |
| 19 Inch 330 nits 1280*1024 LCD Square Panel for LB190E02-SL03 | |
Why Choose Us :
According to customers' various requests,
we can match all accessories which inclusive of driver board,
touch-screen, LED backlight & LVDS cables. TFT LCD,
LCD panel, LCD display,LCD screen, LCD monitor,
LCD module from 2.2 inch to 88 inch.
Quality promised, 100% original,fast delivery,
also enjoy one year guarantee !
Shipping and Package :
1)All of our product will be testing before shipping . So you can be assured the quality of our products
2) All Panels are packed with new and firm carton, capable of long distance transportation.
3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT
4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.
FAQ :
Q: Are you manufactory or trade company?
A: We are a Trade Company , We are LCD panel professional distributors ,We have own warehouse and inventory. Our goal is to provide our customers with the best products.
Q: Can you declared low value for my order when shipping?
A: Yes, We can do it for you if you need.
Q: How to order lcd panel LB190E02-SL03 ?
A: Tell us the quantity you need ,Then we will make a PI for you to confirm the order details ,When we confirmed everything, you can arrange the payment ,After we received the payment, we will ship goods to you within 1-2day.
Q: Why big order delivery time are long?
A: All the lcd panel are Strictly tested before shipment , to ensure that you receive good quality lcd panel and work well!
We are one of the professional and experienced suppliers of 19 Inch 330 nits 1280*1024 LCD Square Panel for LB190E02-SL03, offering you the quotation and the price list consultation. Welcome to wholesale the high-end, quality and low price products in stock with us. Good after-sale service and fast delivery are available.
