12.1 Inch Lcd Display Panel Lb121s03-Td01 82PPI Brightness 400cd/M2
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | LG Display |
| Model Number: | LB121S03-TD01 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Manufacturer: | LG Display | Model Name: | LB121S03-TD01 |
|---|---|---|---|
| Screen Size: | 12.1 Inch | Resolution: | 800(RGB)×600, SVGA, 82PPI |
| Display Size: | 246(W)×184.5(H) Mm | Physical Dimension: | 280(W)×218(H) ×11.5(T) Mm |
| Viewable Area: | 249.2(W)×187.8(H) Mm | Brightness: | 400cd/m² (Typ.) |
| Contrast: | 500:1 (Typ.) (transmission) | Best Angle: | 6 O'clock |
| Apply To: | Industrial | ||
| High Light: | Matte Lcd Display Panel,12.1Inch Lcd Display Panel,400cd/M2 lcd screen display board |
||
Product Description

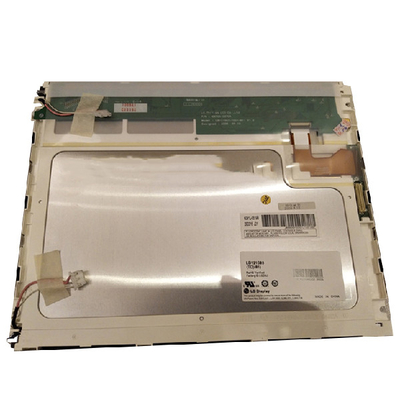

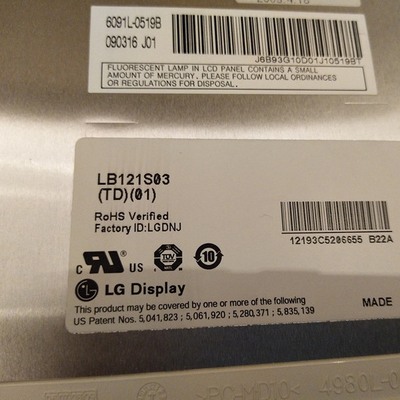

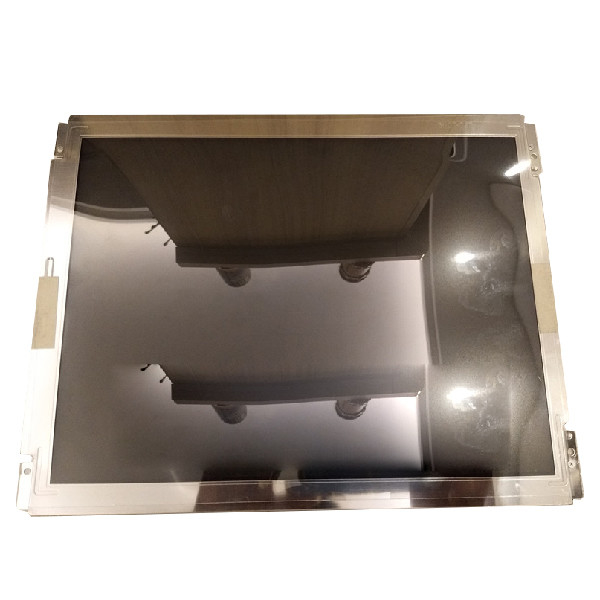

NEW LCD DISPLAY LCD PANEL LB121S03-TD01
Product details :
TFT LCD Panel, LCD/LED backlight
A Grade , 100% New Original
In Stock
| LG Display LCD SCREEN LB121S03-TD01 | |
| Manufacturer | LG. |
| Model Name | LB121S03-TD01 |
| Screen Size | 12.1 inches |
| Panel type | a-Si TFT-LCD, LCM |
| Number of pixels | 800(RGB)×600, SVGA, 82PPI |
| Pixel layout | RGB vertical bar |
| Display area | 246(W)×184.5(H) mm |
| Viewable area | 249.2(W)×187.8(H) mm |
| physical dimension | 280(W)×218(H) ×11.5(T) mm |
| Surface treatment | Matte, Hard coating (3H) |
| Panel brightness | 400 cd/m2 (Typ.) |
| Contrast | 500:1 (Typ.) (TM) |
| Viewing angle | 65/65/50/60 (Typ.)(CR≥10) |
| Operating mode | TN, normally white display, transmissive |
| Best perspective | 6 o'clock |
| Reaction time | 10/20 (Typ.)(Tr/Td) ms |
| Display color | 262K, 45% NTSC |
| type of light source | 2 pcs CCFL, 50K hours, without driver |
| working frequency | 60Hz |
| Panel weight | 670g (Max.) |
| Signal interface | Parallel RGB (1 ch, 6-bit), 41 pins, Connector |
| Drive screen voltage | 3.3V (Typ.) |
| working environment | Working: 0 ~ 70 °C; Storage: -30 ~ 80 °C |
| NEW LCD DISPLAY LCD PANEL LB121S03-TD01 | |
Why Choose Us :
According to customers' various requests,
we can match all accessories which inclusive of driver board,
touch-screen, LED backlight & LVDS cables. TFT LCD,
LCD panel, LCD display,LCD screen, LCD monitor,
LCD module from 2.2 inch to 88 inch.
Quality promised, 100% original,fast delivery,
also enjoy one year guarantee !
Shipping and Package :
1)All of our product will be testing before shipping . So you can be assured the quality of our products
2) All Panels are packed with new and firm carton, capable of long distance transportation.
3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT
4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.
FAQ :
Q: Can You declare my order of LB121S03-TD01 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: How can I trace my order of LB121S03-TD01 ?
A: we will give you tracking number then you can trace your order from website.
Q: How long will I receive my goods LB121S03-TD01 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: How to make payment of LB121S03-TD01 ?
A: We accept T/T , Paypal , western union .
