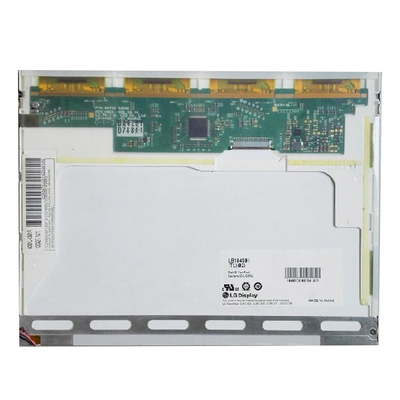

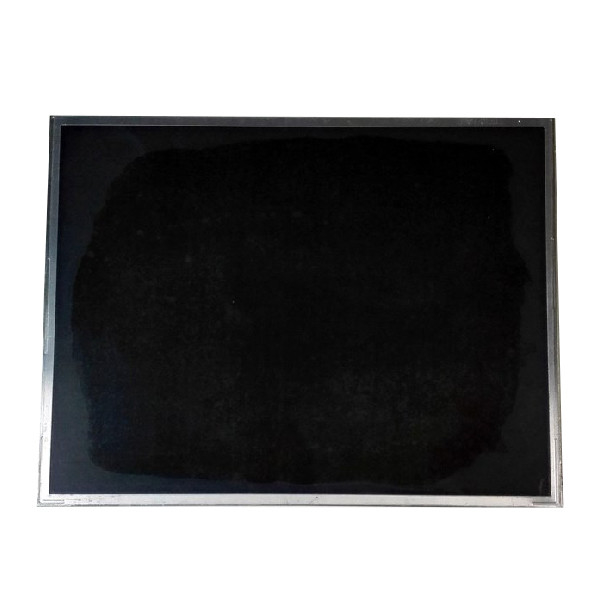

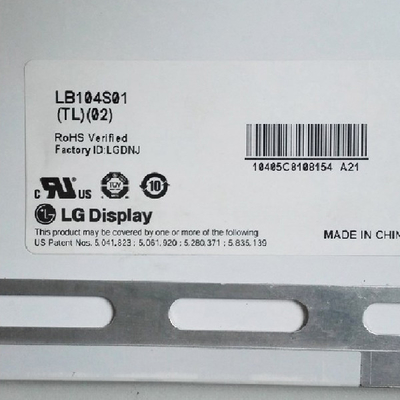

LB104S01-TL02 Original 10.4 inch LCD Panel Screen for LG
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | LG Display |
| Model Number: | LB104S01-TL02 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Manufacturer: | LG Display | Model Name: | LB104S01-TL02 |
|---|---|---|---|
| Screen Size: | 10.4 Inch | Resolution: | 800(RGB)×600 SVGA 96PPI |
| Display Size: | 211.2(H)×158.4(V) Mm | Physical Dimension: | 224.5(H)×172(V) Mm |
| Viewable Area: | 214.2(H)×161.8(V) Mm | Brightness: | 250cd/m² (Typ.) |
| Contrast: | 400:1 (Typ.) (transmission) | Best Angle: | 6 O'clock |
| Apply To: | Industrial | ||
Product Description
LB104S01-TL02 Original 10.4 inch LCD Panel Screen for LG
Product details :
TFT LCD Panel, LCD/LED backlight
A Grade , 100% New Original
In Stock
| LG Display LCD SCREEN LB104S01-TL02 | |
| Manufacturer | LG Display |
| Model Name | LB104S01-TL02 |
| Screen Size | 10.4 inch |
| Types of | a-Si TFT-LCD, LCM |
| Resolution | 800(RGB)×600 SVGA 96PPI |
| Pixel arrangement | RGB vertical bar |
| Display area | 211.2(H)×158.4(V) mm |
| physical dimension | 224.5(H)×172(V) mm |
| Open area | 214.2(H)×161.8(V) mm |
| Surface treatment | Matte, Hard coating (3H) |
| Display brightness | 250 cd/m2 (Typ.) |
| Contrast | 400:1 (Typ.) (transmission) |
| Recommended perspective | 6 o'clock |
| Response time | 6/19 (Typ.)(Tr/Td) ms |
| Viewing angle | 65/65/45/55 (Min.)(CR≥10) |
| Display mode | TN, normally white display, transmissive |
| Support color | 262K, 45% NTSC |
| type of light source | CCFL [1 pcs], 20K hours, no driver |
| weight | 290/300g (Typ./Max.) |
| Frame rate | 60Hz |
| Interface Type | 20 pins LVDS (1 ch, 6-bit), connector |
| Voltage supply | 3.3V (Typ.) |
| Application Environment | Working temperature: 0 ~ 50 °C; Storage temperature: -20 ~ 60 °C |
| LB104S01-TL02 Original 10.4 inch LCD Panel Screen for LG | |
Why Choose Us :
According to customers' various requests,
we can match all accessories which inclusive of driver board,
touch-screen, LED backlight & LVDS cables. TFT LCD,
LCD panel, LCD display,LCD screen, LCD monitor,
LCD module from 2.2 inch to 88 inch.
Quality promised, 100% original,fast delivery,
also enjoy one year guarantee !
Shipping and Package :
1)All of our product will be testing before shipping . So you can be assured the quality of our products
2) All Panels are packed with new and firm carton, capable of long distance transportation.
3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT
4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.
FAQ :
Q: Can I pay my order of LB104S01-TL02 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: Can you give me a discount if I need a large quantity of LB104S01-TL02?
A: Of course!If you make a large order, we will give you a discount.
Q: How can I trace my order of LB104S01-TL02 ?
A: we will give you tracking number then you can trace your order from website.
Q: How long is the warranty ?
A: We offer 90 days warranty .
