10.4 Inch Industrial LCD Screen Display LB104S01-TL01 96PPI 250cd/M2
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | LG Display |
| Model Number: | LB104S01-TL01 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Manufacturer: | LG Display | Model Name: | LB104S01-TL01 |
|---|---|---|---|
| Screen Size: | 10.4 Inch | Resolution: | 800(RGB)×600 [SVGA] 96PPI |
| Display Size: | 211.2 × 158.4 Mm (H×V) | Physical Dimension: | 224.5 × 172 Mm (H×V×D) |
| Viewable Area: | 214.2 × 161.8 Mm (H×V) | Brightness: | 250cd/m² (Typ.) |
| Contrast: | 400:1 (Typ.) (transmission) | Best Angle: | 6 O'clock |
| Apply To: | Industrial | ||
| High Light: | 10.4 Inch lcd screen display board,Industrial Transmissive LCD Screen Display,96PPI lcd screen display board |
||
Product Description

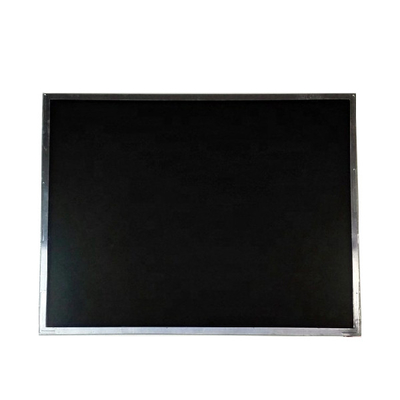

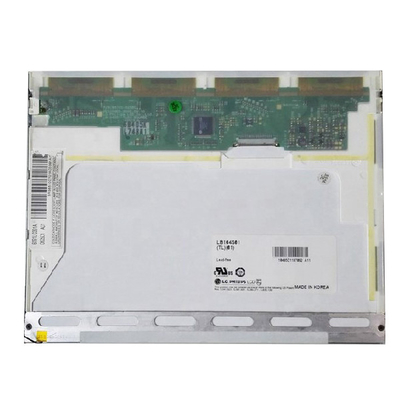

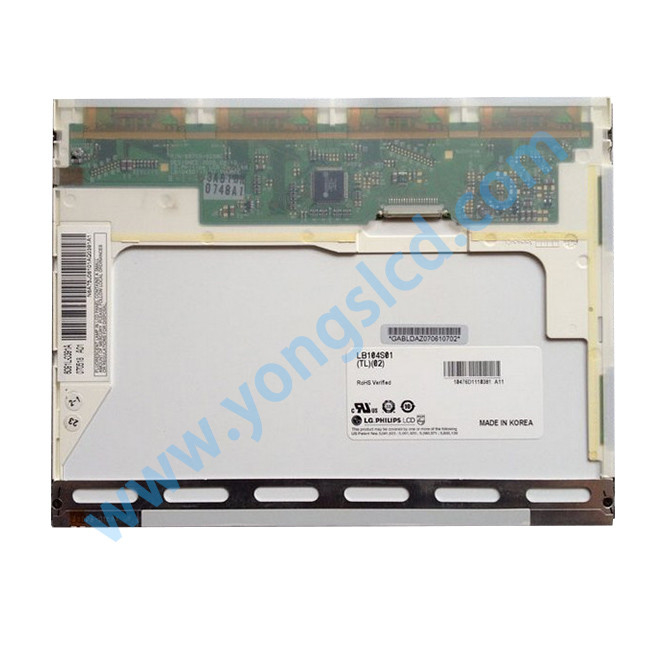

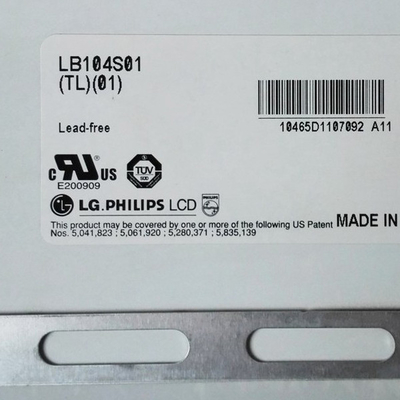

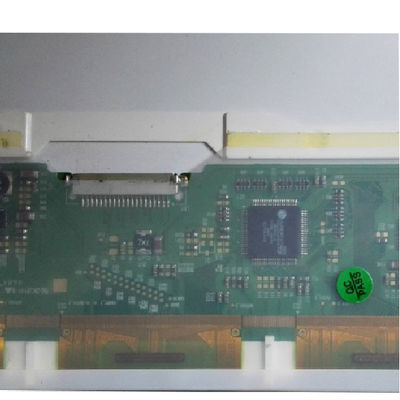

new and original 10.4 inch LCD LB104S01-TL01
Product details :
TFT LCD Panel, LCD/LED backlight
A Grade , 100% New Original
In Stock
| LG Display LCD SCREEN LB104S01-TL01 | |
| Manufacturer | LG. |
| Model Name | LB104S01-TL01 |
| Screen Size | 10.4" |
| Screen type | LCM, a-Si TFT-LCD |
| Resolution | 800(RGB)×600 [SVGA] 96PPI |
| Pixel configuration | RGB vertical bar |
| Display size | 211.2 × 158.4 mm (H×V) |
| physical dimension | 224.5 × 172 mm (H×V×D) |
| Visual size | 214.2 × 161.8 mm (H×V) |
| Surface treatment | Matte, Hard coating (3H) |
| Brightness (cd/m2) | 250 (Typ.) |
| Contrast | 400: 1 (Typ.) [Transmission] |
| Best angle | 6 o'clock |
| Optical mode | TN, normally white display, Transmissive |
| Viewing angle | 65/65/45/55 (Min.)(CR≥10) |
| responding speed | 6/19 (Typ.)(Tr/Td) ms |
| Number of colors | 262K, 45% NTSC |
| Backlight type | 1 pcs CCFL, 30K hours, no driver |
| Screen weight | 290/300g (Typ./Max.) |
| Refresh rate | 60Hz |
| signal system | LVDS (1 ch, 6-bit), connector, 20 pins |
| Supply voltage | 3.3V (Typ.) |
| Maximum rating | Storage temperature: -20 ~ 60 °C Working temperature: 0 ~ 50 °C |
| new and original 10.4 inch LCD LB104S01-TL01 | |
Why Choose Us :
According to customers' various requests,
we can match all accessories which inclusive of driver board,
touch-screen, LED backlight & LVDS cables. TFT LCD,
LCD panel, LCD display,LCD screen, LCD monitor,
LCD module from 2.2 inch to 88 inch.
Quality promised, 100% original,fast delivery,
also enjoy one year guarantee !
Shipping and Package :
1)All of our product will be testing before shipping . So you can be assured the quality of our products
2) All Panels are packed with new and firm carton, capable of long distance transportation.
3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT
4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.
FAQ :
Q: Can I pay my goods LB104S01-TL01 by credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: How do you ship my goods LG Display LB104S01-TL01 ?
A: We can shipping all over the world.via DHL,UPS,Fedex and EMS.
Q: Can you give me a discount if I need a large quantity of LB104S01-TL01 ?
A: Of course!If you make a large order, we will give you a discount.
Q: I do not find the LCD I am looking for in the website, what should I do ?
A: You can give us some pictures,we have a lot of LCD out of shelves.
