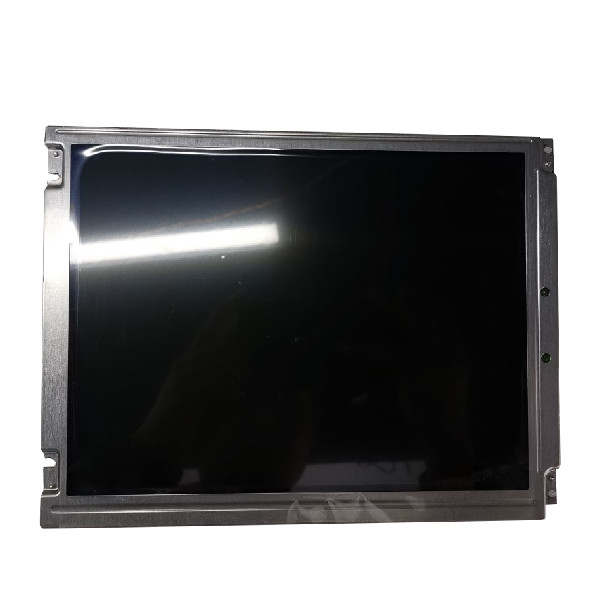

LB064V02-TD01 LG 640x480 6.4 inch lcd display panel
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | LG Display |
| Model Number: | LB064V02-TD01 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Manufacturer: | LG Display | Model Name: | LB064V02-TD01 |
|---|---|---|---|
| Screen Size: | 6.4 Inch | Resolution: | 640(RGB)×480, VGA, 124PPI |
| Display Size: | 130.56(W)×97.92(H) Mm | Physical Dimension: | 145.5(W)×111.5(H) Mm |
| Viewable Area: | 133.8(W)×101.1(H) Mm | Brightness: | 250cd/m² (Typ.) |
| Contrast: | 400:1 (Typ.) (TM) | Best Angle: | 6 O'clock |
| Apply To: | Industrial | ||
Product Description
LB064V02-TD01 LG 640x480 6.4 inch lcd display panel
Product details :
TFT LCD Panel, LCD/LED backlight
A Grade , 100% New Original
In Stock
| LG Display LCD SCREEN LB064V02-TD01 | |
| Manufacturer | LG Display |
| Model Name | LB064V02-TD01 |
| Screen Size | 6.4 inches |
| Panel type | a-Si TFT-LCD, LCM |
| Number of pixels | 640(RGB)×480, VGA, 124PPI |
| Pixel layout | RGB vertical bar |
| Display area | 130.56(W)×97.92(H) mm |
| Viewable area | 133.8(W)×101.1(H) mm |
| physical dimension | 145.5(W)×111.5(H) mm |
| Surface treatment | Matte, Hard coating (3H) |
| Panel brightness | 250 cd/m2 (Typ.) |
| Contrast | 400:1 (Typ.) (TM) |
| Viewing angle | 65/65/50/60 (Typ.)(CR≥10) |
| Operating mode | TN, normally white display, transmissive |
| Best perspective | 6 o'clock |
| Reaction time | 10/15 (Typ.)(Tr/Td) |
| Display color | 262K, 45% NTSC |
| type of light source | 1 pcs CCFL, 20K hours, without driver |
| working frequency | 60Hz |
| Panel weight | 130/140g (Typ./Max.) |
| Signal interface | CMOS/TTL (1 ch, 6-bit), 30 pins, connector |
| Drive screen voltage | 3.3V (Typ.)(VCC) |
| working environment | Working: 0 ~ 50 °C; Storage: -20 ~ 60 °C |
| LB064V02-TD01 LG 640x480 6.4 inch lcd display panel | |
