Electric TFT Medical Mobile Workstation On Wheels Hospital

Electric TFT Medical Mobile Workstation On Wheels Hospital

Product Details:

Place of Origin: China
Brand Name: YONGS
Model Number: yongs-005

Payment & Shipping Terms:

Minimum Order Quantity: 1 pcs
Payment Terms: Western Union, T/T
Get Best Price Contact Now

Detail Information

Power Source: Electric Warranty: 1 Year
After-sale Service: Online Technical Support Material: ABS
Quality Certification: CCC Instrument Classification: Class I
Product Name: Telemedicine Equipment Type: Medical Mobile Toll Workstation
Usage: Hospital Keywords: Telehealth Devices
High Light:

TFT Medical Mobile Workstation


Electric Medical Mobile Workstation


Class I workstation on wheels hospital

Product Description

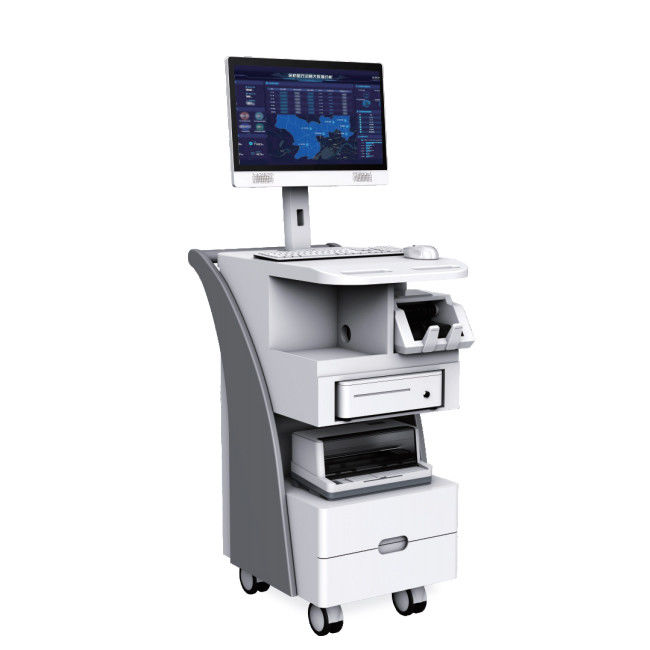

Medical mobile toll workstation

Product details :

1. Car body parameters:
(1) The whole vehicle adopts an integrated structure design
(2) Main body material: composed of plastic and steel structure, fully covered by ABS on the work surface and the surface of the fuselage
(3) The width of the working table is 500mm, the depth is 750mm, and the height of the working table is 1000mm
(4)The base of the car body is equipped with four silent casters, at least two with brakes
(5) The base is equipped with a pool box and battery
(6) The front and rear of the workbench are equipped with armrests, which can be pushed and pulled
(7) Equipped with: Smart currency detector, dot matrix printer, dot matrix printer, standard cash box, reserved for UnionPay POS card machine and receipt printer
(8) The all-in-one computer is equipped with a high-definition camera, loop recording
(9) The all-in-one computer is fixed on the table to prevent it from falling
(10) Car body size: 795mm x 500mm x 1000mm
2. System parameters:
Processor: Intelcore i5 7th-10th generation (Intel Skylake-U series processors)
Internal memory: 8 G DDR4
Storage: 128G SSD
Display screen: 21.5 inches TFT liquid crystal display, resolution 1920x1080

Dual Gigabit wired network ports, Ethernet 10/100/1000MB Base-T LAN;

Wi-Fi802.11ac, 2.4GHz/5GHz dual band

Bluetooth: Bluetooth 4.0 LE
4G/5G module (optional): optional built-in 4G module or 5G module, external with SIM card slot
Touch screen (optional): optional capacitive touch screen
Support operating system: Windows 10 & Windows 7
Audio and video system: built-in high-definition camera and dual microphones, built-in speakers (optional)
3. Power system:
(1) The use of high-performance lithium batteries should meet the low-pollution requirements of the hospital, and reserve double-capacity upgrade space
(2) The number of effective battery charging and discharging cycles should not be less than 2500 cycles
(3) Output power: 1000W
(4) Peak power: 2000W
(5)Battery performance: When the battery is fully charged, the continuous working time should be ≥8 hours
(6) With low battery alarm function, when the battery capacity is lower than 20%, the buzzer will automatically sound, and when the battery capacity is lower than 10%, it will automatically shut down
(7) The battery itself should be equipped with an over-discharge protection device
4. Printing unit:
Dot matrix printer: Epson (EPSON) LQ-610KII
The size does not exceed: 450mm*320mm*210mm other brand printers
Power does not exceed: 500W
Laser printer: Hewlett-Packard (HP) P1106 monochrome laser printer
The size does not exceed: 400mm*240mm*250mm other brand printers
Power does not exceed: 500W
