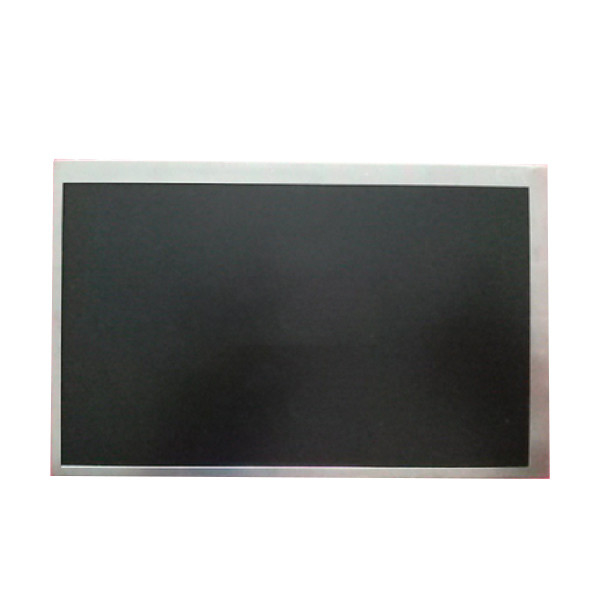

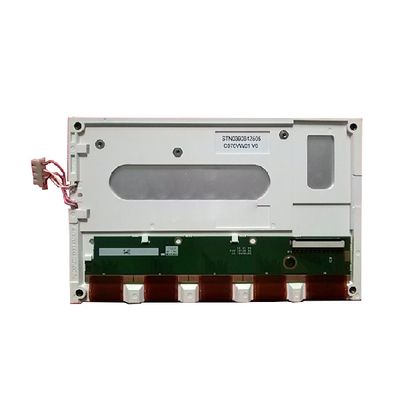

C070VW01 V0 800×480 Lcd Panel Display

C070VW01 V0 800×480 Lcd Panel Display

Product Details:

Place of Origin: CHINA
Brand Name: AUO
Model Number: C070VW01 V0

Payment & Shipping Terms:

Minimum Order Quantity: 1 pcs
Payment Terms: T/T, Western Union
Get Best Price Contact Now

Detail Information

Manufacturer: AUO Model Name: C070VW01 V0
Screen Size: 7.0 Inch Resolution: 800(RGB)×480, WVGA, 133PPI
Display Size: 152.4(W)×91.44(H) Mm Physical Dimension: 153.4(W)×92.44(H) Mm
Visual Size: 165(W)×104(H) ×13(D) Mm Brightness: 650cd/m² (Typ.)
Contrast: 300:1 (Typ.) (TM) Best Angle: 6 O'clock
Apply To: Car Display

Product Description

C070VW01 V0 800×480 Lcd Panel Display


Product details :


TFT LCD Panel, LCD/LED backlight


A Grade , 100% New Original


In Stock

manufacturer AUO
Model Name C070VW01 V0
screen size 7.0 inch
Screen type a-Si TFT-LCD, LCM
Resolution 800(RGB)×480, WVGA, 133PPI
Pixel configuration RGB Vertical Stripe
Display size 152.4(W)×91.44(H) mm
physical dimension 153.4(W)×92.44(H) mm
Visual size 165(W)×104(H) ×13(D) mm
surface treatment Antiglare (Haze 25%)
Brightness 650cd/m² (Typ.)
Contrast 300:1 (Typ.) (TM)
Best angle 6 o'clock
Optical mode TN, Normally White, Transmissive
Viewing angle 60/60/40/60 (Typ.)(CR≥10)
Responding time 6/10 (Typ.)(Tr/Td)ms
Number of color 262K
Backlight type 2 pcs CCFL , 10K hours , Without Driver
Panel weight 240g
Apply to Car display
Touch function Without
signal system Parallel RGB (1 ch, 6-bit) , 50 pins Connector
Supply voltage 3.3/9.8/15/-7/4.2V (Typ.)(VCC/AVDD/VGH/VGL/VCOM)
Maximum rating Operating Temp.: -30 ~ 85 °C ; Storage Temp.: -40 ~ 95 °C
C070VW01 V0 800×480 lcd panel display


Why Choose Us :


According to customers' various requests,

we can match all accessories which inclusive of driver board,

touch-screen, LED backlight & LVDS cables. TFT LCD,

LCD panel, LCD display,LCD screen, LCD monitor,

LCD module from 2.2 inch to 88 inch.

Quality promised, 100% original,fast delivery,

also enjoy one year guarantee !


Shipping and Package :

C070VW01 V0 800×480 Lcd Panel Display 0


1)All of our product will be testing before shipping . So you can be assured the quality of our products


2) All Panels are packed with new and firm carton, capable of long distance transportation.




4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.





Q: Do you accept the sample order of C070VW01 V0 ?

A: 90 days.


Q: What happen if AUO lcd screen C070VW01 V0 I received can't work ?

A: lcd panel C070VW01 V0 was tested ok before shipping .If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel.


Q: What shipping methods you have for my order C070VW01 V0 ?



Q: can you declared low price of my order TFT-LCD LTM170E8-L01C070VW01 V0 when shipping?

A: Yes , please inform us the value you want .
