in stock 43.0 inch PT430CT05-2 1920*1080 51 pins LCD screen

Brand Name:	YONGS
Model Number:	Weida 8752
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

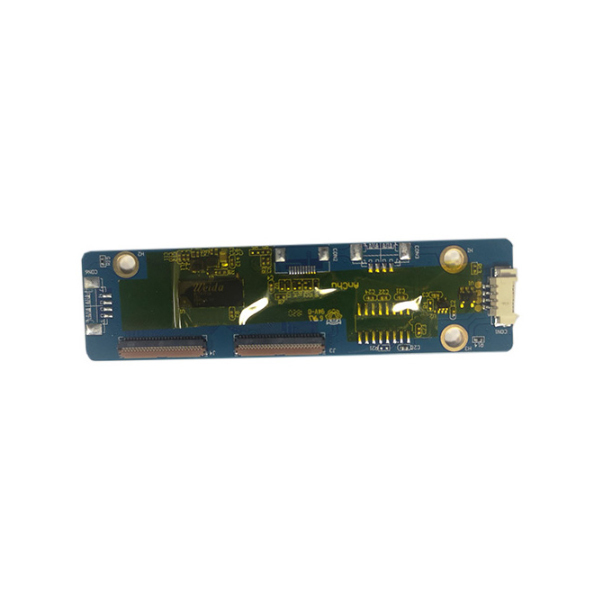

Model Name:

Weida 8752

Outline Dimension:

W: 21mm, L: 80mm

Support Touch Panel Size:

Suggestion: 13.3” ~ 23.6”

Driving Channels:

Max:35 Channels

Sensing Channels:

Max:61 Channels

Host Interface:

USB/IIC/RS232

IC Chip:

WD 8752

Input Supply Voltage:

USB: 4.4V ~ 5.5V, Typical:5V

Supply Ability:

100000 Unit/Units per Month

Product Description

in stock 43.0 inch PT430CT05-2 1920*1080 51 pins LCD screen

PT430CT05-2 LCD Panel Product details :

Brand	HKC
Model P/N	PT430CT05-2
Diagonal Size	43"
Panel Type	a-Si TFT-LCD, CELL, FOB
Resolution	1920×1080(RGB), FHD 51PPI
Pixel Format	RGB Horizontal Stripe
Active Area	940.896(W)×529.254(H) mm
Bezel Opening	-
Outline Dim.	950.676(H)×543.49(V)×1.44(D) mm
Treatment	Antiglare (Haze 3%), Hard coating (3H)
Luminance	0 cd/m²
Contrast Ratio	3000:1 (Typ.) (TM)
View Direction	Symmetry
Response Time	9.5 (Typ.)(G to G)
Viewing Angle	89/89/89/89 (Typ.)(CR≥10)
Operating Mode	FSA, Normally Black, Transmissive
Plate Thickness	0.50+0.50 mm
Transmittance	6.5% (Typ.)(with Polarizer)
Support Color	16.7M 68%NTSC
Light Source	No B/L
Weight	1.62Kgs (Typ.)
Designed For	TV Sets
Frame Rate	60Hz
Touch Panel	Without
D-IC Detail	COF Built-in 2 source chips
Interface Type	Mini LVDS, 51 pinsConnector
Power Supply	12.0V (Typ.)
Environment	Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C
in stock 43.0 inch PT430CT05-2 1920*1080 51 pins LCD screen

PT430CT05-2 LCD Panel Note :

Model Verification:

Please ensure that the model number you need is exactly the same as the model number you have ordered. We will ship the LCD panel based strictly on the model specified in your order. Ensuring the correct model number is crucial to avoid any compatibility issues.

Comprehensive Testing:

We conduct 100% testing on each LCD panel to ensure it meets our stringent quality standards. This thorough testing process guarantees that you receive a fully functional and reliable product. Our commitment to quality ensures that each panel is meticulously checked before it is shipped to you.

PT430CT05-2 LCD Panel Shipping and Package :

in stock 43.0 inch PT430CT05-2 1920*1080 51 pins LCD screen 0

PT430CT05-2 LCD Panel Shipping Guidelines:

Address Confirmation:

It is crucial to verify that the shipping address provided in your order is accurate. We will ship the LCD panel to the address listed in the order. If you need the panel to be shipped to a different address, please email us the new address immediately after making the payment to avoid any shipping errors.

Shipment Timeline:

Your order will be processed and shipped within three business days after we have received your payment. Please note that business days do not include weekends or public holidays, so take this into account when estimating your delivery date.

PT430CT05-2 LCD Panel ESTIMATED DELIVERY TIME :

Standard Shipping:

The estimated delivery time for standard shipping is between 10 to 35 working days. This timeframe may vary depending on the destination and other factors such as customs processing and local postal services.

Expedited Shipping:

For a faster delivery option, expedited shipping is available with an estimated delivery time of 4 to 7 working days. This option is ideal if you need the LCD panel urgently and prefer a quicker shipping method.

PT430CT05-2 LCD Panel FAQ :

Q: Can You declare my order of PT430CT05-2 to a lower price in commercial invoice for customs ?

A: Yes , we can . pls inform us before shipping .

Q: How long is the warranty ?

A: We offer 90days warranty .

Q: How long will I receive my goods PT430CT05-2 ?

A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.

Q: Can you give me a discount if I need a large quantity of PT430CT05-2 ?

A: Of course!If you make a large order, we will give you a discount.
