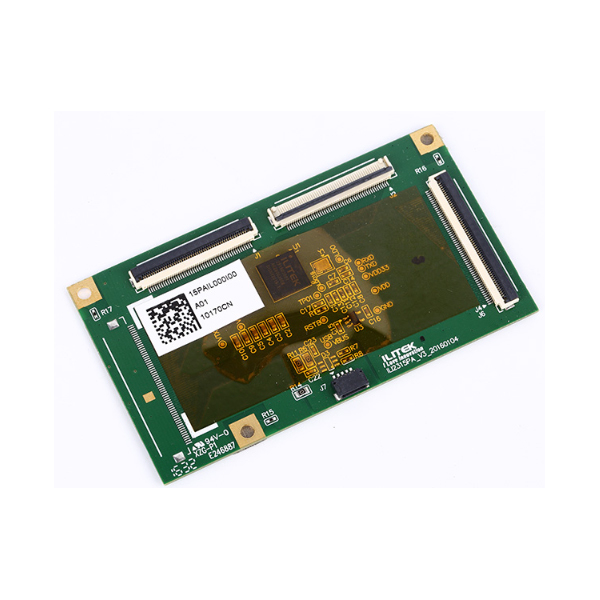

Capacitive Touch Screen Controller Board Circuit Board With 58 Channels USB interface for 32
  • name

Capacitive Touch Screen Controller Board Circuit Board With 58 Channels USB interface for 32" to 43" touch panels

Brand Name: YONGS
Model Number: ILITEK2315
MOQ: 1 pcs
Price: Negotiable
Packaging Details: Original packaging/conventional packaging box
Payment Terms: T/T,Western Union
Detail Information
Product Description
Detail Information
Place of Origin:
China
Model Name:
ILITEK2315
Outline Dimension:
W:50mm, L: 90mm
Support Touch Panel Size:
Suggestion: 32” ~ 43”
Driving Channels:
Max:58 Channels
Sensing Channels:
Max:96 Channels
Host Interface:
USB
IC Chip:
ILITEK 2315
Input Supply Voltage:
USB: 4.4V ~ 5.5V, Typical:5V
Supply Ability:
100000 Unit/Units per Month
Highlight:

capacitive touch screen controller board

,

capacitive touch screen controller circuit board

Product Description
Capacitive Touch Screen Controller Board Circuit Board With 58 Channels USB interface for 32" to 43" touch panels
Product Specifications
Attribute Value
Model Name ILITEK2315
Outline Dimension W:50mm, L: 90mm
Support Touch Panel Size Suggestion: 32" ~ 43"
Driving Channels Max:58 channels
Sensing Channels Max:96 channels
Host Interface USB
IC Chip ILITEK 2315
Input Supply Voltage USB: 4.4V ~ 5.5V, Typical:5V
Product Details
Operating Temperature -40 ~ 85℃
Storage Temperature -40 ~ 150℃
Touch Coordinate Resolution 16384 X 9600
Product Description
Capacitive Touch Screen Controller Board Circuit Board With 58 Channels USB interface for 32" to 43" touch panels 0
Product Application
Capacitive Touch Screen Controller Board Circuit Board With 58 Channels USB interface for 32" to 43" touch panels 1
Shipping and Package
Capacitive Touch Screen Controller Board Circuit Board With 58 Channels USB interface for 32" to 43" touch panels 2 Capacitive Touch Screen Controller Board Circuit Board With 58 Channels USB interface for 32" to 43" touch panels 3
Return Policy
  • The Buyer is ought to notify the seller of all returned items within 7 days after receiving the package. We reserve the right refusing any requirement that informs the seller longer than 7 days.
  • Exchange due to buyer wrong part ordered, buyer needs to pay 2-ways shipping fee.
  • Return items must have all original packaging and in good condition.
  • Return postage and insurance charge is non-refundable for refund or new shipment.
  • Shipping fees are non-refundable.
Frequently Asked Questions
Q: WHAT KIND OF PAYMENT METHOD DO YOU ACCEPT?
A: We accept payment by T/T, PayPal, Western Union, Alibaba.
Q: WHAT IS YOUR SAMPLE POLICY?
A: We only offer free sample to cooperated customers. But your payment for samples could be deducted from your next bulk order.
Q: WHAT IS YOUR WARRANTY POLICY?
A: We have 1/2/3 years warranty for different kinds of products.
Q: WHAT IS THE MOQ LIMIT FOR EACH ORDER?
A: We do not have MOQ limitation, Sample order is acceptable. But different QTY result in different price.
Q: WHEN WILL THE ORDER BE SHIPPED?
A: Generally orders could be shipped in 3-7 business days after we received full payment.
