High Quality PT430CT01-1 43.0 inch LCD screen lcd Module

Brand Name:	YONGS
Model Number:	ILITEK-2302
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

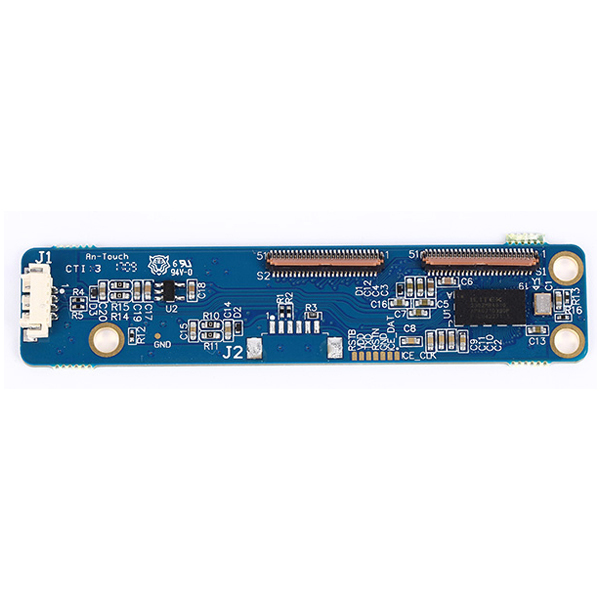

Model Name:

ILITEK-2302

Outline Dimension:

W: 17mm, L: 80mm

Support Touch Panel Size:

Suggestion: 13.3” ~ 23.6”

Driving Channels:

Max:35 Channels

Sensing Channels:

Max:61 Channels

Host Interface:

USB/IIC/RS232

IC Chip:

ILITEK 2302M

Input Supply Voltage:

USB: 4.4V ~ 5.5V, Typical:5V

Supply Ability:

100000 Unit/Units per Month

Product Description

High Quality PT430CT01-1 43.0 inch LCD screen lcd Module

PT430CT01-1 LCD Panel Product details :

Brand	HKC
Model P/N	PT430CT01-1
Diagonal Size	43"
Panel Type	a-Si TFT-LCD, CELL, FOB
Resolution	1920(RGB)×1080, FHD 51PPI
Pixel Format	RGB Vertical Stripe
Active Area	940.896(W)×529.254(H) mm
Bezel Opening	-
Outline Size	953(W)×543(H)×1.37(D) mm
Surface	Antiglare (Haze 3%), Hard coating (3H)
Brightness	0 cd/m²
Contrast Ratio	4000:1 (Typ.) (TM)
Viewing Angle	89/89/89/89 (Typ.)(CR≥10)
Display Mode	FSA, Normally Black, Transmissive
Best View on	Symmetry
Response Time	9.5 (Typ.)(G to G)
Glass Depth	0.50+0.50 mm
Transmissivity	7.0% (Typ.)(with Polarizer)
Display Colors	16.7M 68%NTSC
Lamp Type	No B/L
Frequency	60Hz
Touch Screen	Without
Driver IC	COF Built-in 6 source + 3 gate chips
Panel Weight	1.60Kgs (Typ.)
Application	TV Sets
Signal Interface	LVDS (2 ch, 8-bit), 51 pinsConnector
Input Voltage	12.0V (Typ.)
Environment	Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C
High Quality PT430CT01-1 43.0 inch LCD screen lcd Module

PT430CT01-1 LCD Panel Note :

Model Verification:

Please ensure that the model number you need is exactly the same as the model number you have ordered. We will ship the LCD panel based strictly on the model specified in your order. Ensuring the correct model number is crucial to avoid any compatibility issues.

Comprehensive Testing:

We conduct 100% testing on each LCD panel to ensure it meets our stringent quality standards. This thorough testing process guarantees that you receive a fully functional and reliable product. Our commitment to quality ensures that each panel is meticulously checked before it is shipped to you.

PT430CT01-1 LCD Panel Shipping and Package :

High Quality PT430CT01-1 43.0 inch LCD screen lcd Module 0

PT430CT01-1 LCD Panel Shipping Guidelines:

Address Confirmation:

It is crucial to verify that the shipping address provided in your order is accurate. We will ship the LCD panel to the address listed in the order. If you need the panel to be shipped to a different address, please email us the new address immediately after making the payment to avoid any shipping errors.

Shipment Timeline:

Your order will be processed and shipped within three business days after we have received your payment. Please note that business days do not include weekends or public holidays, so take this into account when estimating your delivery date.

PT430CT01-1 LCD Panel ESTIMATED DELIVERY TIME :

Standard Shipping:

The estimated delivery time for standard shipping is between 10 to 35 working days. This timeframe may vary depending on the destination and other factors such as customs processing and local postal services.

Expedited Shipping:

For a faster delivery option, expedited shipping is available with an estimated delivery time of 4 to 7 working days. This option is ideal if you need the LCD panel urgently and prefer a quicker shipping method.

PT430CT01-1 LCD Panel FAQ :

Q: Can you give me a discount if I need a large quantity of PT430CT01-1 ?

A: Of course!If you make a large order, we will give you a discount.

Q: Can You declare my order of PT430CT01-1 to a lower price in commercial invoice for customs ?

A: Yes , we can . pls inform us before shipping .

Q: How long is the warranty ?

A: We offer 90days warranty .

Q: How long will I receive my goods PT430CT01-1 ?

A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
