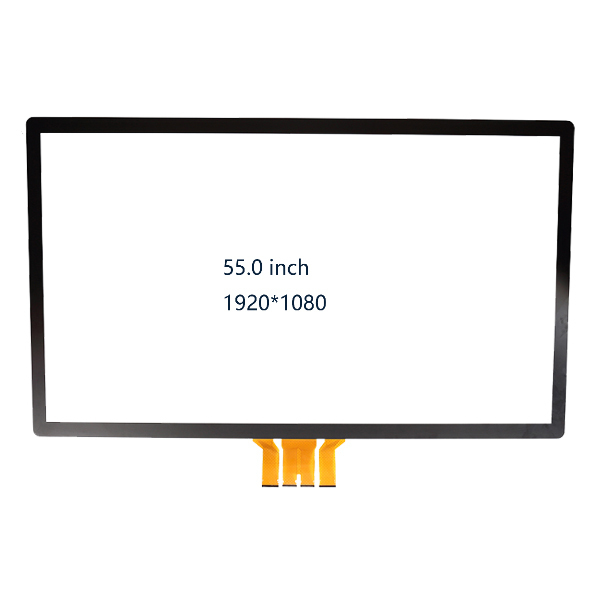

55.0 inch Projected Capacitive Touch Screen,20 Points Multi Touch Panel
  • name

55.0 inch Projected Capacitive Touch Screen,20 Points Multi Touch Panel

Brand Name: YONGS
Model Number: AC-C550001
MOQ: 1 pcs
Price: Negotiable
Packaging Details: Original packaging/conventional packaging box
Payment Terms: T/T,Western Union
Detail Information
Product Description
Detail Information
Place of Origin:
China
Model Name:
AC-C550001
Diagonal Size:
55.0 "
Structures:
Cover Glass+ITO Glass
Surface Hardness:
>6H
Outline Size:
1280.2*758.2mm
View Area:
1211.6*682.4mm
IC Controller/IC:
ILITEK 2325
Operating Temperature:
-20℃~70℃
Storage Temperature:
-30℃~80℃
Operating System:
XP Win7、8 Android Linux
Supply Ability:
100000 Unit/Units per Month
Highlight:

Projected Capacitive Touch Screen

,

55.0 inch Capacitive Touch Screen

,

20 Points Multi Touch Panel

Product Description
55.0 inch Projected Capacitive Touch Screen, 20 Points Multi Touch Panel
Product Specifications
Attribute Value
Model Name AC-C550001
Diagonal Size 55.0"
Structures Cover Glass+ITO Glass
Surface Hardness >6H
Outline size 1280.2*758.2mm
View Area 1211.6*682.4mm
IC Controller/IC ILITEK 2325
Operating temperature -20℃~70℃
Storage temperature -30℃~80℃
Operating System XP win7, 8 Android Linux
Product Description

This 55.0-inch capacitive touch screen features high-sensitivity touch technology based on human current induction principle, supporting multi-touch operation with fast response and smooth performance. The panel is covered with tempered glass offering high transparency (86% min) and excellent wear resistance (>6H hardness).

Key features include:

  • Supports 1-20 touch points
  • USB interface mode
  • Total thickness: 4.3±0.15mm
  • Wide operating temperature range (-20℃~70℃)
  • Compatible with multiple operating systems
55.0 inch Projected Capacitive Touch Screen,20 Points Multi Touch Panel 0
Product Applications

This capacitive touch screen is widely used in various intelligent devices requiring human-computer interaction, including:

  • Consumer electronics (smartphones, tablets, laptops)
  • Commercial applications (self-service terminals, POS systems)
  • Industrial control systems
  • Medical equipment
  • Vehicle systems and smart home devices
55.0 inch Projected Capacitive Touch Screen,20 Points Multi Touch Panel 1
Customized Services

We offer comprehensive customization options including:

  • Size, color, and shape modifications
  • Logo integration
  • Special treatments (UV protection, anti-glare, anti-fingerprint)
  • Integrated black effect
55.0 inch Projected Capacitive Touch Screen,20 Points Multi Touch Panel 2
Packing & Shipping

Our standard packaging includes:

  • Touch panel packed with foam plastic materials
  • Carton or wooden box outer packaging
  • Multiple shipping options: DHL, UPS, FedEx, TNT, or Sea Freight
55.0 inch Projected Capacitive Touch Screen,20 Points Multi Touch Panel 3 55.0 inch Projected Capacitive Touch Screen,20 Points Multi Touch Panel 4
Our Service & Strength

Pre-sales service: Professional team available 24/7 to answer your questions.

After-sales service: Comprehensive support including installation guidance and technical assistance.

Quality assurance: All products tested before shipment with 12-month warranty period.

Frequently Asked Questions
Q: How to Understand Stock for Sale?
A: Stock levels are based on item's sales history. We fill most small quantity orders immediately. If an item goes out of stock after you order it, we will contact you.
Q: What is your MOQ for bulk order?
A: We support both small quantity and large quantity orders.
Q: Do you accept OEM order?
A: Yes, we support OEM/ODM orders and customized solutions.
Q: How can we ensure after-sales service?
A: Our professional after-sales team provides 24/7 support to address any questions promptly.
