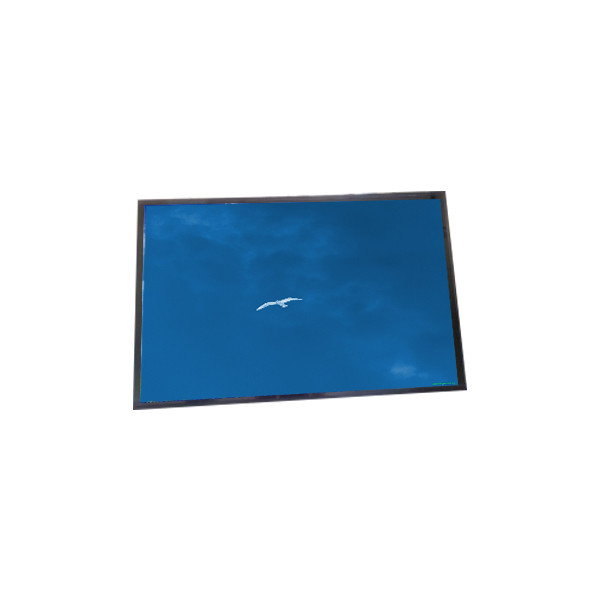

LC320W01-B6K3 32.0 inch LCD display 1366*768 EEFL LCD Screen
Product Details:
| Place of Origin: | China |
| Brand Name: | LG |
| Model Number: | LC320W01-B6K3 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | LC320W01-B6K3 | Diagonal Size: | 32.0" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 1366(RGB)×768, WXGA 49PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 697.685(W)×392.256(H) Mm |
| Work Mode: | IPS, Normally Black, Transmissive | Best View On: | Symmetry |
| Backlight: | 20 PcsEEFL, 60K Hours, With Inverter | Used For: | TV Sets |
Product Description
LC320W01-B6K3 32.0 inch LCD display 1366*768 EEFL LCD Screen
LC320W01-B6K3 LCD Panel Product details :
| Brand | LG Display |
| Model P/N | LC320W01-B6K3 |
| Diagonal Size | 32.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1366(RGB)×768, WXGA 49PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 697.685(W)×392.256(H) mm |
| Bezel Opening | 703.8(W)×398.4(H) mm |
| Outline(mm) | 760 × 450 (H×V×D) |
| Treatment | Antiglare, Hard coating (3H) |
| Luminance | 500 cd/m² (Typ.) |
| Contrast Ratio | 600 : 1 (Typ.) (TM) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Response | 8/10 (Typ.)(Tr/Td), 10 (Typ.)(G to G) ms |
| Good View at | Symmetry |
| Work Mode | IPS, Normally Black, Transmissive |
| Color Depth | 16.7M 71%NTSC |
| Backlight | 20 pcsEEFL, 60K hours, With Inverter |
| Mass | 7.20/7.60Kgs (Typ./Max.) |
| Used for | TV Sets |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | LVDS (1 ch, 8-bit), 30 pinsConnector |
| Voltage Supply | 12.0V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| LC320W01-B6K3 32.0 inch LCD display 1366*768 EEFL LCD Screen | |
Important Note Regarding LC320W01-B6K3 LCD Screen:
The part numbers mentioned in the titles serve solely as a reference to aid you in locating a compatible screen for your existing model number. Please be aware that receiving the exact part number as listed in the title is not guaranteed. Instead, we will dispatch a 100% compatible item that matches the specifications of the original part number. It's common for manufacturers to alter part numbers over time, rendering certain numbers obsolete. Furthermore, the images included in the listing are intended for illustrative purposes only, showcasing the connector's position and the fixing points.
LC320W01-B6K3 LCD Panel Shipping and Package :
Shipping Details for LC320W01-B6K3 LCD Screen:
Rest assured, your item is in excellent condition and will be carefully prepared for shipping.
All orders will be dispatched to the buyer's specified shipping address as listed during the purchase process. If you wish to have your order delivered to an alternative address, kindly ensure that you update your shipping details accordingly before completing your transaction.
Please note that the seller reserves the right to opt for a shipping company other than the one initially indicated in the listing, at their discretion. Common carriers utilized include USPS, UPS, and FedEx. Should you prefer to use your own shipping label, please feel free to get in touch with us.
Upon shipment, all packages will be provided with a tracking number for your convenience. We extend our shipping services internationally; however, please be advised that the buyer assumes responsibility for all associated international shipping and handling fees.
While we prioritize shipping the model specified in the title, in the event that this model is unavailable, we will promptly dispatch its compatible universal counterpart to fulfill your order.
LC320W01-B6K3 LCD Panel FAQ :
Q: How do you ship my goods LC320W01-B6K3 ?
A: We can shipping all over the world.via DHL,UPS,Fedex and EMS, the packaging is very safe and strong.
Q: How long is the warranty of LC320W01-B6K3 ?
A: 90days warranty .
Q: Are you manufactory or trade company ?
A: We are a Trade Company , We are LCD panel professional distributors ,We have own warehouse and inventory. Our goal is to provide our customers with the best products.
Q: Can You declare my order of LCD panel LG LC320W01-B6K3 at a very low value ?
A: Yes , we can . pls inform us before shipping .
Contact for LC320W01-B6K3 LCD Screen:
At our establishment, we prioritize our reputation, recognizing the significance of trust in online transactions. Should you find yourself dissatisfied with your order, we encourage you to reach out to us, and we will diligently collaborate with you to address any concerns until they are resolved to your contentment. Please anticipate a response to all inquiries within 1-3 days, as we strive to provide timely assistance and support to our valued customers.
