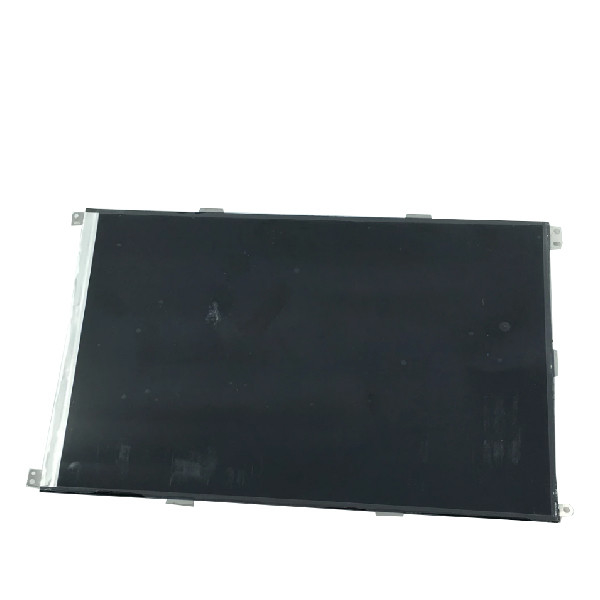

AUO LCD Screen 800*1280 B080EAN02.1 for Pad & Tablet
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | B080EAN02.1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | B080EAN02.1 | Diagonal Size: | 8.0" |
|---|---|---|---|
| Resolution: | 800(RGB)×1280, WXGA 188PPI | Display Size: | 107.64(W)×172.224(H) Mm |
| Treatment: | Antiglare | Brightness: | 350 Cd/m² (Typ. |
| Response Time: | 30 (Typ.)(Tr+Td) | Viewing Angle: | 85/85/85/85 (Typ.) (CR≥10) |
| Weight: | 105g (Max.) | Designed For: | Pad & Tablet |
Product Description
AUO LCD Screen 800*1280 B080EAN02.1 for Pad & Tablet
B080EAN02.1 Product details :
| AUO LCD Screen B080EAN02.1 | |
| Panel Brand | AUO |
| Panel Model | B080EAN02.1 |
| Diagonal Size | 8.0 inches |
| Panel Type | LCM, a-Si TFT-LCD |
| Resolution | 800(RGB)×1280 [WXGA] 188PPI |
| Pixel configuration | RGB vertical bars |
| Display size | 107.64 × 172.224 mm (H×V) |
| Outline (mm) | 114.8 × 184.7 × 4.56 mm (H×V×D) |
| Treatment | Antiglare |
| Luminance | 350 cd/m² (Typ.) |
| Contrast Ratio | 800:1 (Typ.) (Transmission) |
| Viewing Angle | 85/85/85/85 (Typ.) (CR≥10) |
| Response | 30 (Typ.)(Tr+Td) ms |
| Work Mode | AHVA, Normally Black, Transmissive |
| Number of colors | 16.7M , 58% NTSC |
| Backlight type | 6S3P WLED , 15K hours, no driver |
| Mass | 105g (Max.) |
| Used for | Pad & Tablet |
| Touchscreen | Without |
| Signal Type | MIPI (4 data lanes) , terminal, 31 pins |
| Supply voltage | 3.3V (Typ.) |
| Max. Ratings | Storage temperature: -30 ~ 70 °C Operating temperature: -20 ~ 60 °C |
| AUO LCD Screen 800*1280 B080EAN02.1 for Pad & Tablet | |
B080EAN02.1 Customer Service Policy:
We are more than happy to answer any questions that you have, please contact with
1:Orders processed timely after the payment verification.
2:We only ship to confirmed order addresses. Your order address MUST MATCH your Shipping address.
3:If you have not received your shipment within 30 days from payment, please contact us. We will track the shipment and get back to you as soon as possible with a reply. Our goal is customer satisfaction!
4:Due to stock status and time differences, we will choose to ship your item from our first available warehouse for fast delivery.
B080EAN02.1 Important:
Specific laptop models can come in many sizes and resolutions. Laptop LCD resolution should not beupgraded or downgraded. You must confirm that this screen matches your laptop in size and in resolution before you purchase! No Returns Due To Improper Installation or Incompatibility
B080EAN02.1 About Shipping:
We will ship it in 1-3 working days after your paying.we only ship according to the shipping address,if you want to change shipping address,pls contact me in advance in time.as to the shipping time,it usually will be 7-30 days,which will be different for different countries.
B080EAN02.1 Delivery time is approx:
United States / United Kingdom / Australia 7-14 working days.
Canada 7-25 working days.
France / Spain / Germany may take 7-20 working days.
Eastern Europe may take up to 16-30 working days.
Italy / Brazil / South America may take up to 30-50 working days.
Shipped by DHL Express (Need 3-6 working days to arrive)
B080EAN02.1 FAQ:
Q: Can you tested the B080EAN02.1 before shipping ?
A: Of course , our lcd panel B080EAN02.1 was Strictly tested before shipping.
Q: How to order B080EAN02.1 ?
A: We accept T/T , Paypal , western union .
Q: What happen if the lcd panel B080EAN02.1 received can't work ?
A: B080EAN02.1 was tesed before shipping.If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel .
Q: Are you manufactory or trade company?
A: We are a Trade Company , We are LCD panel professional distributors ,We have own warehouse and inventory. Our goal is to provide our customers with the best products.
B080EAN02.1 Shippment & Packing
