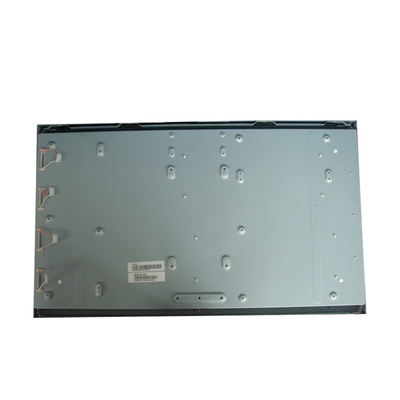

T260XW02 V0 30 Pins 26 Inch LCD Screen 1366(RGB)×768 IPS
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | T260XW02 V0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | T260XW02 V0 | Screen Size: | 26.0 Inch |
|---|---|---|---|
| Pixel Number: | 1366(RGB)×768 (WXGA) 60PPI | Active Area(mm): | 575.769 × 323.712 (H×V) |
| Outline(mm): | 626 × 373 (H×V×D) | Bezel Area(mm): | 580.0 × 328.0 (H×V) |
| Mass: | 4.20Kgs (Typ.) | Used For: | TV Sets |
Product Description
T260XW02 V0 30 Pins 26 Inch LCD Screen 1366(RGB)×768 IPS
T260XW02 V0 Product details :
| AUO LCD SCREEN T260XW02 V0 | |
| Panel Brand | AUO |
| Panel Model | T260XW02 V0 |
| Panel Size | 26.0" |
| Panel Type | a-Si TFT-LCD , LCM |
| Resolution | 1366(RGB)×768, WXGA, 60PPI |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 575.769(W)×323.712(H) mm |
| Bezel Opening | 580.0(W)×328.0(H) mm |
| Outline Size | 626(W)×373(H) |
| Surface | Antiglare, Hard coating (3H) |
| Brightness | 500 cd/m² (Typ.) |
| Contrast Ratio | 800:1 (Typ.) (TM) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Display Mode | VA, Normally Black, Transmissive |
| Best View on | Symmetry |
| Response Time | 12/12 (Typ.)(Tr/Td) |
| Display Colors | 16.7M 72% NTSC |
| Lamp Type | 8 pcs CCFL , 60K hours , With Inverter |
| Frequency | 60Hz |
| Touch Screen | Without |
| Panel Weight | 4.20Kgs (Typ.) |
| Signal Interface | LVDS (1 ch, 8-bit) , 30 pins Connector |
| Input Voltage | 5.0V (Typ.) |
| Environment | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
| T260XW02 V0 30 Pins 26 Inch LCD Screen 1366(RGB)×768 IPS | |
