LQ064V3DG01 LCD Screen Panel 6.4 Inch 640×480 For Industrial Machines
Product Details:
| Place of Origin: | China |
| Brand Name: | Sharp |
| Model Number: | LQ064V3DG01 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | LQ064V3DG01 | Screen Size: | 6.4 Inch |
|---|---|---|---|
| Pixel Number: | 640(RGB)×480 (VGA) 124PPI | Active Area(mm): | 130.56 × 97.92 (H×V) |
| Outline(mm): | 161.3 × 117 (H×V×D) | Luminance: | 350 Cd/m² (Typ.) |
| Mass: | 280g (Max.) | Used For: | Industrial |
| Highlight: | LQ064V3DG01 LCD Screen Panel,6.4 Inch LCD Screen Panel |
||
Product Description

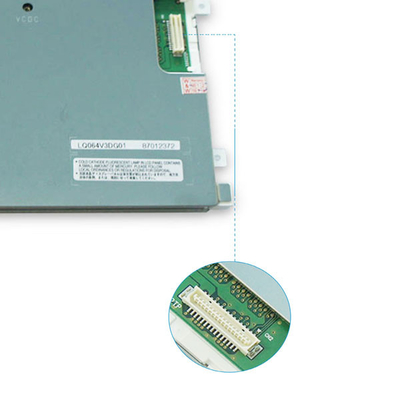

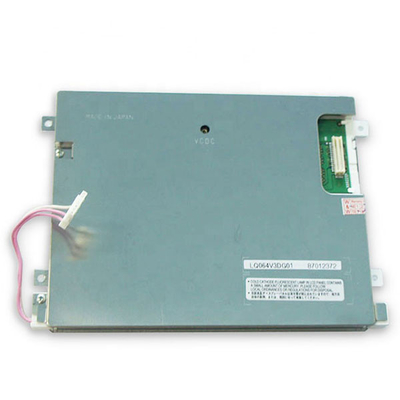

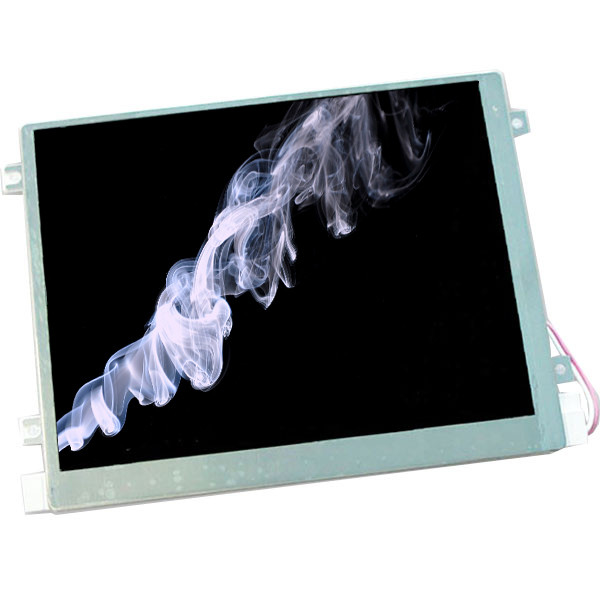

LQ064V3DG01 Original 6.4 inch 640×480 LCD Screen Panel for Industrial Machines
Product details :
| SHARP LCD SCREEN LQ064V3DG01 | |
| manufacturer | SHARP |
| Model Name | LQ064V3DG01 |
| screen size | 6.4inch |
| Screen type | LCM, a-Si TFT-LCD |
| Resolution | 640×480(RGB), VGA, 124PPI |
| Pixel configuration | RGB Vertical Stripe |
| Display size | 130.56 × 97.92 mm (H×V) |
| physical area | 161.3 × 117 mm (H×V) |
| Contrast | Matte, |
| Display | 350 cd/m² (Typ.) |
| contrast | 350:1 (Typ.) (Transmission) |
| Viewing angle | 70/70/40/70(Typ.)(CR≥10) |
| display mode | TN, Normally White, Transmissive |
| Number of color | 262K |
| Reaction time | 8/21 (Typ.)(Tr/Td) ms |
| Backlight type | WLED , 50K hours, LED |
| Refresh rate | 60Hz |
| Touch function | No touch |
| Panel weight | 280g (Typ./Max.) |
| Signal | LVDS (1 ch, 6-bit) , 31pins , terminal |
| drive voltage | 3.3/5.0V (Typ.)(VCC) |
| working | Storage temperature: -30 ~ 80 °C Operating temperature: -30 ~ 80 °C |
| LQ064V3DG01 Original 6.4 inch 640×480 LCD Screen Panel for Industrial Machines | |
