Original AUO 20 pin 29.5 inch TFT LCD Display T296XW01 V0

All Category

Floor Standing Digital Signage

Original AUO 20 pin 29.5 inch TFT LCD Display T296XW01 V0

Brand Name:	YONGS
Model Number:	AC-C133002
MOQ:	10pcs
Price:	Negotiable
Packaging Details:	Carton + Foam Cotton
Payment Terms:	T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

AC-C133002

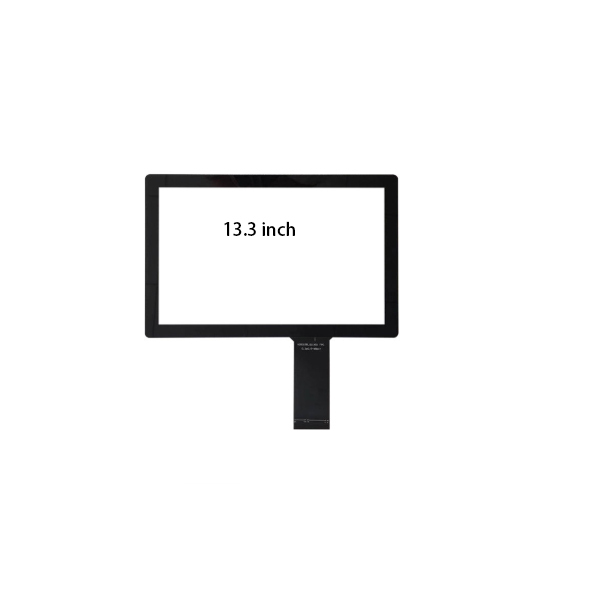

Screen Size:

13.3 Inch

Structures:

Cover Glass+ITO Glass

Surface Hardness:

Outline Size:

193.0*132.0mm

View Area:

152.4*91.44mm

IC Controller/IC:

ILITEK 2511

Operating Temperature:

-20℃~70℃

Storage Temperature:

-30℃~80℃

Interface Mode:

USB/IIC/RS232

Supply Ability:

986PCS

Product Description

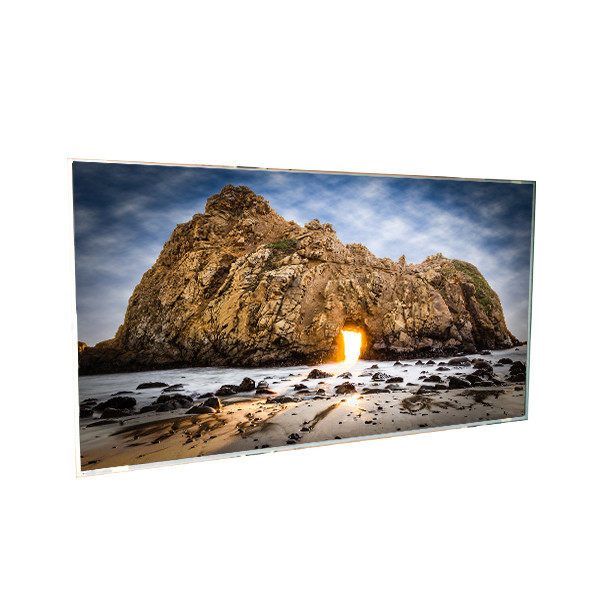

Original AUO 20 pin 29.5 inch TFT LCD Display T296XW01 V0 0

Original AUO 20 pin 29.5 inch TFT LCD Display T296XW01 V0

AUO LCD SCREEN T296XW01 V0
Panel Brand	AUO
Panel Model	T296XW01 V0
Panel Size	29.5"
Panel Type	a-Si TFT-LCD , LCM
Resolution	1280(RGB)×768, WXGA, 50PPI
Pixel Format	RGB Vertical Stripe
Display Area	643.2(W)×385.92(H) mm
Bezel Opening	648.8(W)×391.52(H) mm
Outline Size	683.6(W)×431.8(H) mm
Surface	Antiglare, Hard coating (2H)
Brightness	600 cd/m² (Typ.)
Contrast Ratio	800:1 (Typ.) (TM)
Viewing Angle	85/85/85/85 (Typ.)(CR≥10)
Display Mode	AMVA, Normally Black, Transmissive
Best View on	Symmetry
Response Time	15/10 (Typ.)(Tr/Td)
Display Colors	16.7M 70% NTSC
Lamp Type	CCFL , 50K hours , With Inverter
Frequency	60Hz
Touch Screen	Without
Panel Weight	5.00Kgs (Typ.)
Signal Interface	LVDS (1 ch, 8-bit) , 20 pins Connector
Input Voltage	12.0V (Typ.)
Environment	Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C

Original AUO 20 pin 29.5 inch TFT LCD Display T296XW01 V0 1

Shipping and Packaging:

IAll items will be carefully inspected and properly packaged before sending, and items will be shipped within 2-5 business days after the buyer pays for the order. It usually takes about 30 to 60 working days to deliver the package to the destination (remote areas may take longer), meanwhile if you need an urgent order, you can choose EM or DHLExpress to shorten the shipping time (please confirm your order before placing the order) recipient name and shipping information).

Special Announcement:

Argentina: It usually takes 60 to 90 business days for the order to be delivered to your location.
Brazl: CPF or CNPJ required. It usually takes around 60 to 90 business days for the order to be delivered to your location.
Russian Federation: .FULL RECIPIENT NAME is required. It usually takes about 90 to 120 business days for the order to be delivered to your place.

If you do not receive your order within 60 working days, please contact us and we will try our best to help you solve the problem.

Original AUO 20 pin 29.5 inch TFT LCD Display T296XW01 V0 2

Q: How long will I receive my goods T296XW01 V0 ?

A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.

Q: Do you accept sample orders of T296XW01 V0 ?

A: Of course!sample order is welcome !

Q: Can you give me a discount if I need a large quantity of T296XW01 V0 ?

A: Of course!If you make a large order, we will give you a discount.

Q: Can I pay my order of T296XW01 V0 via credit card ?

A: Yes!you can use your credit card through your Paypal account.
