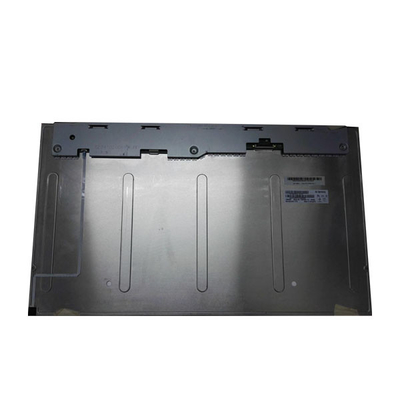

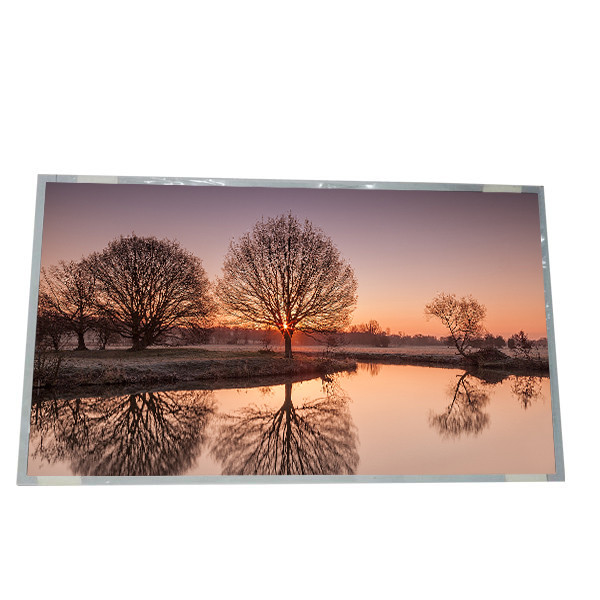

AUO 24.0 inch 1920(RGB)×1080 a-Si TFT-LCD T240HW01 V0 tft lcd screen module
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |

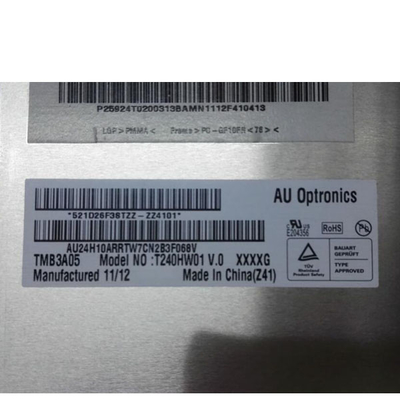

| Model Number: | T240HW01 V0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton + Foam Cotton |
| Delivery Time: | 5 working days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 986PCS |
|
Detail Information |
|||
| Manufacturer: | AUO | Model Name: | T240HW01 V0 |
|---|---|---|---|
| Screen Size: | 24.0 Inch | Operating Mode: | AMVA3, Normally Black, Transmissive |
| Mass: | 2.13Kgs (Typ.) | Used For: | TV Sets |
Product Description
| AUO LCD SCREEN T240HW01 V0 | |
| Panel Brand | AUO |
| Panel Model | T240HW01 V0 |
| Panel Size | 24.0" |
| Panel Type | a-Si TFT-LCD , LCM |
| Resolution | 1920(RGB)×1080, FHD, 91PPI |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 531.72(W)×298.94(H) mm |
| Bezel Opening | 535.4(W)×303.0(H) mm |
| Outline Size | 556(W)×323.2(H) ×16.25(D) mm |
| Surface | Antiglare (Haze 2%), Hard coating (3H) |
| Brightness | 300 cd/m² (Typ.) |
| Contrast Ratio | 3000:1 (Typ.) (TM) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Display Mode | AMVA3, Normally Black, Transmissive |
| Best View on | Symmetry |
| Response Time | 8 (Typ.)(G to G) |
| Display Colors | 16.7M 70% NTSC |
| Lamp Type | WLED , 30K hours , With LED Driver |
| Frequency | 60Hz |
| Touch Screen | Without |
| Panel Weight | 2.13Kgs (Typ.) |

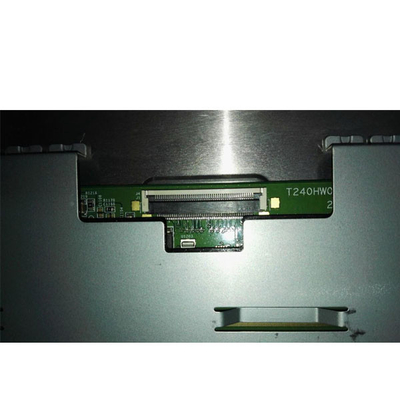

| Signal Interface | LVDS (2 ch, 8-bit) , 51 pins Connector |
| Input Voltage | 12.0V (Typ.) |
| Environment | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
| AUO 24.0 inch 1920(RGB)×1080 a-Si TFT-LCD T240HW01 V0 tft lcd screen module | |
