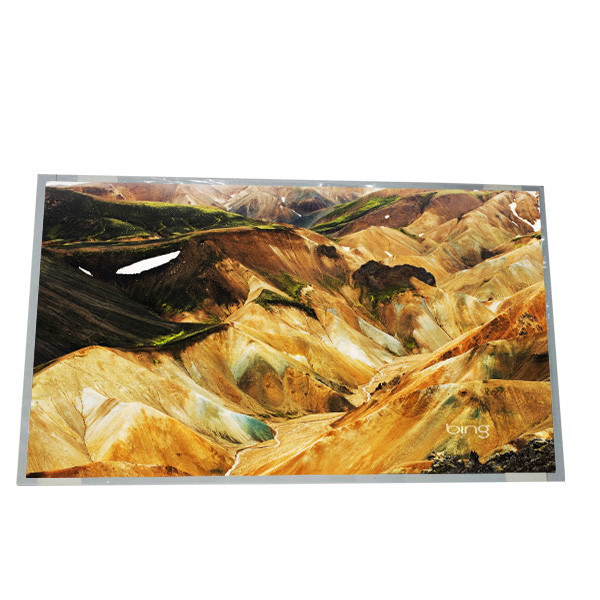

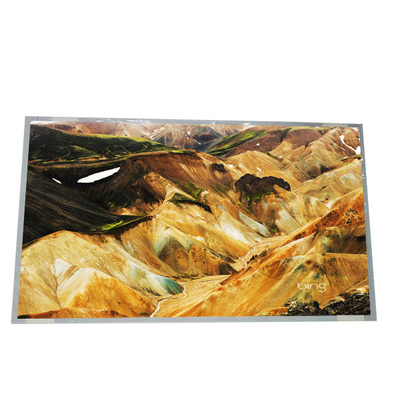

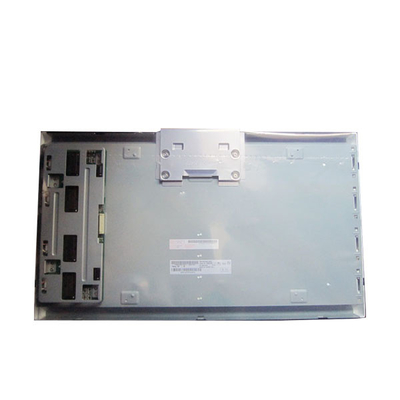

21.6 inch LCD panel T216XW01 V0 support 1366×768 350 cd/m² 60HZ 21.6 INCH LCD screen
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | T220SW01 V0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton + Foam Cotton |
| Delivery Time: | 5 working days |
| Payment Terms: | T/T, Western Union, PayPal |
| Supply Ability: | 980 PCS |
|
Detail Information |
|||
| Brand: | AUO | Model: | T220SW01 V0 |
|---|---|---|---|
| Diagonal Size: | 22.0 Inch | Response Time: | 3.6/1.4 (Typ.)(Tr/Td) |
| Panel Weight: | 2.38Kgs (Typ.) | Application: | TV Sets |
Product Description
21.6 inch LCD panel T216XW01 V0 support 1366×768 350 cd/m² 60HZ 21.6 INCH LCD screen
About US:
We Promise to:
1:Manufacture only the best consumer goods and ensure the highest quality possible.
2:Deliver goods to our customers all over the world with speed and precision
| AUO LCD SCREEN T216XW01 V0 | |
| Panel Brand | AUO |
| Panel Model | T216XW01 V0 |
| Panel Size | 21.6" |
| Panel Type | a-Si TFT-LCD , LCM |
| Resolution | 1366(RGB)×768, WXGA, 72PPI |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 477.417(W)×268.416(H) mm |
| Bezel Opening | 481.0(W)×272.5(H) mm |
| Outline Size | 501(W)×297(H) mm |
| Surface | Antiglare (Haze 11%), Hard coating (3H) |
| Brightness | 350 cd/m² (Typ.) |
| Contrast Ratio | 2000:1 (Typ.) (TM) |
| Viewing Angle | 88/88/88/88 (Typ.)(CR≥10) |
| Display Mode | VA, Normally Black, Transmissive |
| Response Time | 6.5 (Typ.)(Tr+Td) |
| Display Colors | 16.7M 72% NTSC |
| Lamp Type | 4 pcs CCFL , 30K hours , Without Driver |
| Frequency | 60Hz |
| Touch Screen | Without |
| Panel Weight | 3.00Kgs (Max.) |
| Signal Interface | LVDS (1 ch, 8-bit) , 30 pins Connector |
| Input Voltage | 5.0V (Typ.) |
| Environment | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
