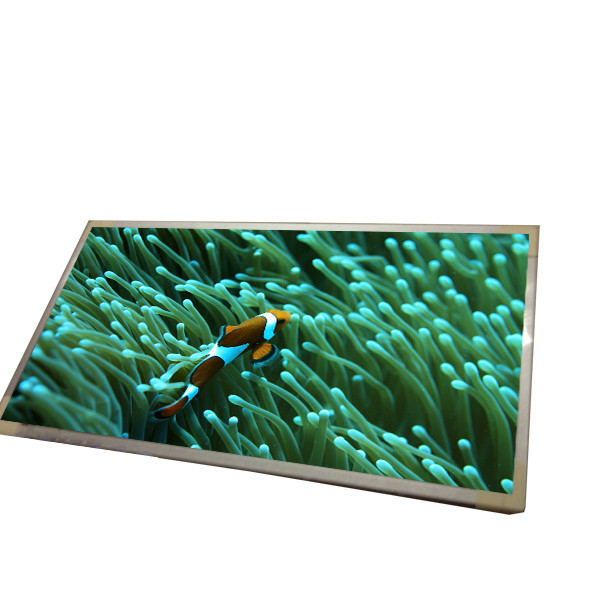

21.6 inch LCD panel T216XW01 V0 support 1366×768 350 cd/m² 60HZ 21.6 INCH LCD screen
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | T216XW01 V0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton + Foam Cotton |
| Delivery Time: | 5 working days |
| Payment Terms: | T/T, Western Union, PayPal |
| Supply Ability: | 980 PCS |
|
Detail Information |
|||
| Brand: | AUO | Model: | T216XW01 V0 |
|---|---|---|---|
| Diagonal Size: | 21.6 Inch | Luminance: | 350 Cd/m² (Typ.) |
| Display Colors: | 16.7M 72% NTSC | Application: | TV Sets |
Product Description
21.6 inch LCD panel T216XW01 V0 support 1366×768 350 cd/m² 60HZ 21.6 INCH LCD screen
Packing: Antistatic bag and box
Each piece is tested strictly before shipping
| AUO LCD SCREEN T216XW01 V0 | |
| Panel Brand | AUO |
| Panel Model | T216XW01 V0 |
| Panel Size | 21.6" |
| Panel Type | a-Si TFT-LCD , LCM |
| Resolution | 1366(RGB)×768, WXGA, 72PPI |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 477.417(W)×268.416(H) mm |
| Bezel Opening | 481.0(W)×272.5(H) mm |
| Outline Size | 501(W)×297(H) mm |
| Surface | Antiglare (Haze 11%), Hard coating (3H) |
| Brightness | 350 cd/m² (Typ.) |
| Contrast Ratio | 2000:1 (Typ.) (TM) |
| Viewing Angle | 88/88/88/88 (Typ.)(CR≥10) |
| Display Mode | VA, Normally Black, Transmissive |
| Response Time | 6.5 (Typ.)(Tr+Td) |
| Display Colors | 16.7M 72% NTSC |
| Lamp Type | 4 pcs CCFL , 30K hours , Without Driver |
| Frequency | 60Hz |
| Touch Screen | Without |
| Panel Weight | 3.00Kgs (Max.) |
| Signal Interface | LVDS (1 ch, 8-bit) , 30 pins Connector |
| Input Voltage | 5.0V (Typ.) |
| Environment | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
Attention: We will send the compatible one instead if the original one out of stock. If you can't accept it, please don't make the order. Thanks for your understanding!
Note:Before you ordered, in case of any mistake & trouble in our business, please contact us as below information for double confirming to win this deal together.
· 1 LCD model name in your hand now.
· 2 Send above information to us and we will respone you within 24 hours for quick and right deal, thanks!
Paymentand Tax:
· 1 Alipay is preferred and safety
· 2 Product being shipped outside of China will incur import duties taxes and charges etc. These fees are not couvered by either price or shipping charges of product and are responsibility of recipient.
· 3 The order will be cancelled beyond 7 business days on unpaid station.
Shipping:
(Please note: business/working days: NOT including the weekedn nor the holidays)
· 1 All items will be dispatched within 48 hours ( 2 working days ) after the payment is verified. The shipping time of the following sometimes maybe a little longer due to custom problems, holidays or something uncertain reasons.
| CARRIER | ESTIMATED TIME | TRACKING LINK |
| DHL | 3-7 working days | http://www.dhl.com |
| UPS | 3-7 working days | http://www.ups.com |
| FedEX | 3-7 working days | http://www.fedex.com |
| TNT | 3-7 working days | http://www.tnt.com.cn |
| EMS | 5-15 working days | http://www.ems.com.cn |
Shipping time will be different for different countries. If you haven't received your shipment within 30 days after payment, please contact us. We will track the shipment and get back to you as soon as we can.
As the global epidemic continues to be severe and global flights are expensive and in short supply now, it takes about a week to track the logistic information after shipped, the transportation time will be greatly extended and delivery time will longer than usually. If you need the goods urgently, please don't order it. thank you very much for your kindly understanding!
· 2 Shipping address will according to your Alipay address. Please make sure your shipping address is the right one.
· 3 The package is safe with signature required. If none sign for the package, it will be return. Please don't forget to go to post office to pick it up. Thank you very much!
Q: Can I pay my goods T216XW01 V0 by credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: How do you ship my goods T216XW01 V0 ?
A: We can shipping all over the world.via DHL,UPS,Fedex and EMS.
Q: How to make payment for T216XW01 V0 ?
A: We accept T/T , Paypal , western union .
Q: Can You declare my order of lcd module T216XW01 V0 at a very low value ?
A: Yes , we can . pls inform us before shipping .
