• 2.5 LCD Monitor Screen A025DL02 V5
  • 2.5 LCD Monitor Screen A025DL02 V5

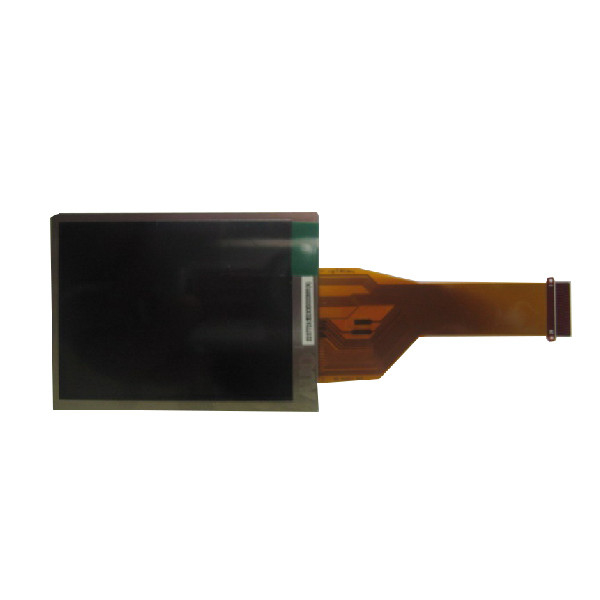

2.5 LCD Monitor Screen A025DL02 V5

2.5 LCD Monitor Screen A025DL02 V5

Product Details:

Place of Origin: China
Brand Name: AUO
Model Number: A025DL02 V5

Payment & Shipping Terms:

Minimum Order Quantity: 1 pcs
Price: Negotiable
Packaging Details: Original packaging/conventional packaging box
Delivery Time: 7 Days
Payment Terms: T/T, Western Union
Supply Ability: 100000 Unit/Units per Month
Get Best Price Contact Now

Detail Information

Model Name: A025DL02 V5 Screen Size: 2.5 Inch
Resolution: 320(RGB)×240 [QVGA] 161PPI Display Area: 50.4 × 37.8 Mm (H×V)
Outline Size: 60.73 × 45.07 (H×V×D) Bezel Opening: 52.6 × 40 Mm (H×V)
Brightness: 400 Cd/m² (Typ.) Best Angle: 6 O'clock

Product Description

2.5 LCD Monitor Screen A025DL02 V5





Product details :

AUO LCD SCREEN A025DL02 V5
manufacturer AUO
Model Name A025DL02 V5
screen size 2.5inch
Screen type LCD , LTPS TFT-LCD
Resolution 320(RGB)×240 [QVGA] 161PPI
Pixel RGB triangle
Display size 50.4 × 37.8 mm (H×V)
physical 60.73 × 45.07 (H×V×D)
Visual size 52.6 × 40.0 mm (H×V)
Surface Hard coating (3H)
Brightness 400 cd/m² (Typ.)
Contrast 300: 1 (Typ.) [Transmission]
Best angle 6 o'clock
Work Mode TN, normally white display, transmissive
Viewing angle 55/55/45/70 (Typ.)(CR≥10)
responding 15/20 (Typ.)(Tr/Td) ms
Number of 16.7M
Backlight type 3S1P WLED
Screen weight 17.0g
Used for Digital Still Camera Digital Video Camera
Touch Without
signal system 39 pins Serial RGB (8-bit) + SPI, CCIR656, FPC
Supply voltage 3.3/3.3V (Typ.)(VDC/VDCI)
Max. Ratings Storage Temp.: -25 ~ 80 °C Operating Temp.: 0 ~ 60 °C
2.5 LCD Monitor Screen A025DL02 V5

Why Choose Us :



According to customers' various requests,


we can match all accessories which inclusive of driver board,


touch-screen, LED backlight & LVDS cables. TFT LCD,


LCD panel, LCD display,LCD screen, LCD monitor,


LCD module from 2.2 inch to 88 inch.


Quality promised, 100% original,fast delivery,


also enjoy one year guarantee !



Shipping and Package :



2.5 LCD Monitor Screen A025DL02 V5 0

1)All of our product will be testing before shipping . So you can be assured the quality of our products



2) All Panels are packed with new and firm carton, capable of long distance transportation.



3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT



4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.



FAQ:

Q: How to order lcd A025DL02 V5 ?

A: We accept the T/T , WESTERN UNION , PAYPAL



Q: Do you accept the sample order AUO A025DL02 V5 ?

A: Yes , sample order is welcome.



Q: How to order if I don't know the lcd panel number ?

A: You can offer 2-3 photos (back-side and front-side) for your lcd panel ,So that we can check the panel to you.



Q: Can you test the lcd panel A025DL02 V5 before shipping ?

A: Yes , Of course , our all the lcd panels are tested ok before shipping , don't worry .





*Pls feel free to contact us for any questions or special requirements . Thank you so much for your coopreation !
