Name: BOE 1920*1080 LCD panel QV156FHB-N81 lcd screen display panel
Brand: Shenzhen Yongsheng Innovation Technology Co., Ltd
SKU: QV156FHB-N81
Availability: InStock

Brand Name:	BOE
Model Number:	QV156FHB-N81
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

QV156FHB-N81

Screen Size:

15.6"

Resolution:

1920(RGB)×1080, FHD 141PPI

Active Area:

344.16(W)×193.59(H) Mm

Work Mode:

ADS, Normally Black, Transmissive

Used For:

Home Appliance

Response Time:

30 (Typ.)(Tr+Td)

Glass Depth:

0.40+0.40 Mm

Lamp Type:

No B/L, With LED Driver

Application:

Home Appliance

Supply Ability:

100000 Unit/Units per Month

Product Description

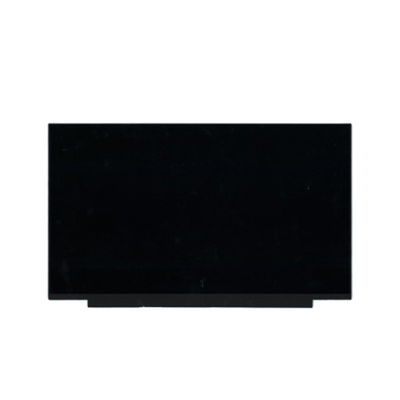

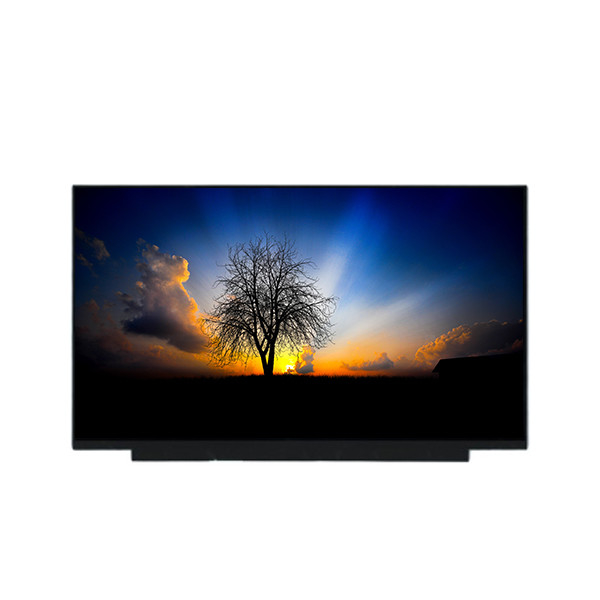

BOE 1920*1080 LCD panel QV156FHB-N81 lcd screen display panel

Product details :

Brand	BOE
Model P/N	QV156FHB-N81
Diagonal Size	15.6"
Panel Type	a-Si TFT-LCD, CELL
Resolution	1920(RGB)×1080, FHD 141PPI
Pixel Format	RGB Vertical Stripe
Active Area	344.16(W)×193.59(H) mm
Bezel Opening	-
Outline Size	348.76(W)×203.49(H)×1.095(D) mm
Surface	Antiglare
Brightness	0 cd/m²
Contrast Ratio	1200:1 (Typ.) (TM)
Viewing Angle	85/85/85/85 (Typ.)(CR≥10)
Display Mode	ADS, Normally Black, Transmissive
Best View on	Symmetry
Response Time	30 (Typ.)(Tr+Td)
Glass Depth	0.40+0.40 mm
Transmissivity	6.3% (Typ.)
Display Colors	16.7M 72%NTSC
Lamp Type	No B/L, With LED Driver
Frequency	60Hz
Touch Screen	Without
Panel Weight	-
Application	Home Appliance
Signal Interface	eDP (2 Lanes), eDP1.2 , HBR1 (2.7G/lane) , 30 pinsConnector
Input Voltage	3.3V (Typ.)
Environment	Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C

Why Choose Us :

According to customers' various requests,

we can match all accessories which inclusive of driver board,

touch-screen, LED backlight & LVDS cables. TFT LCD,

LCD panel, LCD display,LCD screen, LCD monitor,

LCD module from 2.2 inch to 88 inch.

Quality promised, 100% original,fast delivery,

also enjoy one year guarantee !

Shipping and Package :

BOE 1920*1080 LCD panel QV156FHB-N81 lcd screen display panel 0

1)All of our product will be testing before shipping . So you can be assured the quality of our products

2) All Panels are packed with new and firm carton, capable of long distance transportation.

3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT

4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.

FAQ:

Q: How long is the warranty ?

A: We offer 90days warranty .

Q: Can You declare my order of QV156FHB-N81 to a lower price in commercial invoice for customs ?

A: Yes , we can . pls inform us before shipping .

Q: How to make payment of QV156FHB-N81 ?

A: We accept T/T , Paypal , western union .

Q: Can you give me a discount if I need a large quantity of QV156FHB-N81 ?

A: Of course!If you make a large order, we will give you a discount.
