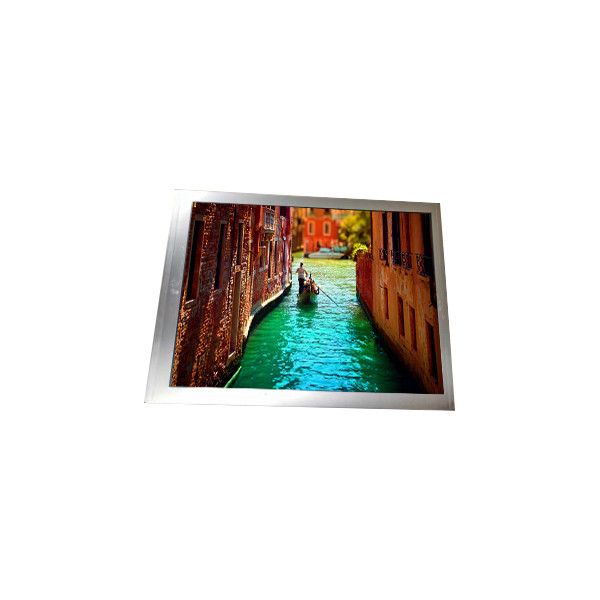

Name: AUO 1920*1080 TFT Lcd Display B156HAN02.0 HWBA LCD Screen Panel
Brand: Shenzhen Yongsheng Innovation Technology Co., Ltd
SKU: B156HAN02.0 HWBA
Availability: InStock

Brand Name:	AUO
Model Number:	B156HAN02.0 HWBA
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

B156HAN02.0 HWBA

Screen Size:

15.6"

Resolution:

1920(RGB)×1080, FHD 141PPI

Active Area:

344.16(W)×193.59(H) Mm

Viewing Angle:

85/85/85/85 (Typ.)(CR≥10)

Outline Dim.:

350.66 × 216.15 × 3.11 (H×V×D)

Brightness:

300 Cd/m² (Typ.)

Used For:

Laptop

Frame Rate:

60Hz

Interface Type:

EDP (2 Lanes) , EDP1.2 , 40 Pins Connector

Supply Ability:

100000 Unit/Units per Month

Highlight:

AUO 640×240 LCD Screen Display Panel

640×240 HVGA LCD Screen Panel

LCD Video Wall Display A025BN03

Product Description

AUO 1920*1080 TFT Lcd Display B156HAN02.0 HWBA LCD Screen Panel

Product details :

Brand	AUO
Model P/N	B156HAN02.0 HWBA
Diagonal Size	15.6"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1920(RGB)×1080, FHD 141PPI
Pixel Format	RGB Vertical Stripe
Active Area	344.16(W)×193.59(H) mm
Bezel Opening	-
Outline Dim.	350.66 × 216.15 × 3.11 (H×V×D)
Treatment	Hard coating
Luminance	300 cd/m² (Typ.)
Contrast Ratio	700 : 1 (Typ.) (TM)
View Direction	Symmetry
Response Time	25 (Typ.)(Tr+Td) ms
Viewing Angle	85/85/85/85 (Typ.)(CR≥10)
Operating Mode	AHVA, Normally Black, Transmissive
Support Color	262K 72% NTSC
Light Source	WLED , 15K hours , With LED Driver
Outline Shape	Slim (PCBA Flat, T≤3.2mm)
Designed For	Laptop
Frame Rate	60Hz
Touch Panel	Without
Interface Type	eDP (2 Lanes) , eDP1.2 , 40 pins Connector
Power Supply	3.3V (Typ.)
Environment	Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C

Why Choose Us :

According to customers' various requests,

we can match all accessories which inclusive of driver board,

touch-screen, LED backlight & LVDS cables. TFT LCD,

LCD panel, LCD display,LCD screen, LCD monitor,

LCD module from 2.2 inch to 88 inch.

Quality promised, 100% original,fast delivery,

also enjoy one year guarantee !

Shipping and Package :

AUO 1920*1080 TFT Lcd Display B156HAN02.0 HWBA LCD Screen Panel 0

1)All of our product will be testing before shipping . So you can be assured the quality of our products

2) All Panels are packed with new and firm carton, capable of long distance transportation.

3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT

4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.

FAQ:

Q: How long is the warranty ?

A: We offer 90days warranty .

Q: Can you give me a discount if I need a large quantity of B156HAN02.0 HWBA ?

A: Of course!If you make a large order, we will give you a discount.

Q: If I place order now,when will you ship the goods of B156HAN02.0 HWBA ?

A: The order will be shipped within 2-3 working days after received your payment.

Q: Do you accept sample orders of B156HAN02.0 HWBA ?

A: Of course!sample order is welcome !
