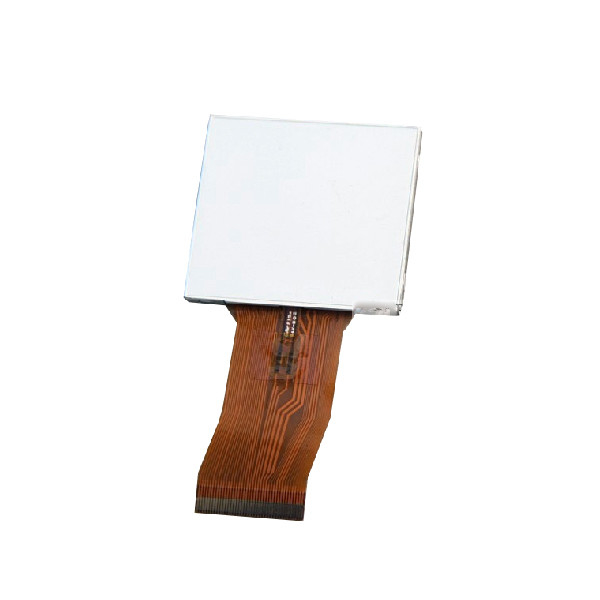

NEW LCD Screen Display Panel A017CN01 V1 480×240 a-si TFT lcd panel
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | A017CN01 V1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | A017CN01 V1 | Screen Size: | 1.7 Inch |
|---|---|---|---|
| Pixel Number: | 480×240 171PPI | Display Area: | 34.08 × 25.56 Mm (H×V) |
| Outline Size: | 41.58 × 37.26 Mm (H×V×D) | Recommended: | 6 O'clock |
| Luminance: | 280 (Typ.) | Contrast Ratio: | 300: 1 (Typ.) [Transmission] |
Product Description
NEW LCD Screen Display Panel A017CN01 V1 480×240 a-si TFT lcd panel
Product details :
A017CN01 V1 supports display 480×240 with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Delta. As for mechanical detail, it features active area of 34.08(W)×25.56(H) mm, outline size of 41.58(W)×37.26(H) mm, with surface treament of Hard coating (3H), net weight of 9.00g (Typ.). As a TN, Normally White, Transmissive LCM product, A017CN01 V1 can provides 280 cd/m² display brightness 300:1 transimissive contrast ratio, 40/40/10/30 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 25/30 (Typ.)(Tr/Td) ms.. This product adopted 3S1P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 10K hours, external backlight driver is additionally needed. A017CN01 V1 utilizes Serial RGB (8-bit) + SPI, CCIR656 as it's signal inputting systerm, which connected by 40 pins FPC with power supply voltage of 3.0/3.3/0.1V (Typ.)(VCC/AVDD/VCDC).
| AUO LCD SCREEN A017CN01 V1 | |
| manufacturer | AUO |
| model | A017CN01 V1 |
| Diagonal size | 1.7 inch |
| Types of | LCM, a-Si TFT-LCD |
| Resolution | 480×240 171PPI |
| Pixel | RGB triangle |
| Display area | 34.08 × 25.56 mm (H×V) |
| physical | 41.58 × 37.26 mm (H×V×D) |
| Surface | Hard coating (3H) |
| Display | 280 (Typ.) |
| Contrast | 300: 1 (Typ.) [Transmission] |
| Recommended | 6 o'clock |
| Response time | 25/30 (Typ.)(Tr/Td) ms |
| Viewing angle | 40/40/10/30 (Typ.)(CR≥10) |
| Display mode | TN, normally white display, transmissive |
| weight | 9.00g (Typ.) |
| Application | camera |
| Touch | No touch |
| Interface Typ | Serial RGB (8-bit) + SPI, CCIR656 , FPC , 40 pins |
| Voltage supply | 3.0/3.3/0.1V (Typ.)(VCC/AVDD/VCDC) |
| Application | Storage temperature: -55 ~ 125 °C Working temperature: -30 ~ 85 ° |
| NEW LCD Screen Display Panel A017CN01 V1 480×240 a-si TFT lcd panel | |
