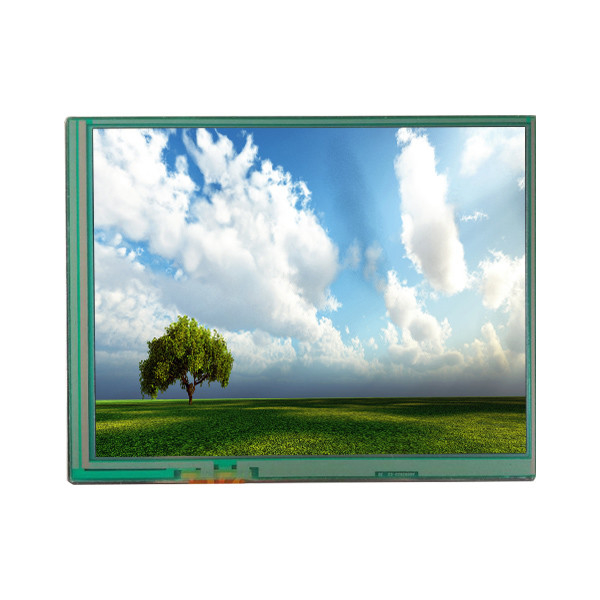

TX14D22VM1BAA 5.7 inch 70PPI 40 pins lcd display modules

Brand Name:	HITACHI
Model Number:	TX14D22VM1BAA
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

TX14D22VM1BAA

Resolution:

320(RGB)×240, QVGA, 70PPI

Diagonal Size:

5.7''

Display Size:

115.2(h)×86.4(v) Mm

Pixel Format:

RGB Vertical Stripe

Brightness:

400 Cd/m² (Typ.)

Supply Ability:

100000 Unit/Units per Month

Product Description

TX14D22VM1BAA 5.7 inch 70PPI 40 pins lcd display modules

TX14D22VM1BAA LCD Panel Product details :

HITACHI LCD Screen TX14D22VM1BAA
Panel Brand	HITACHI
Panel Model	TX14D22VM1BAA
Screen size	5.7 inches
Panel Type	LCM, a-Si TFT-LCD
Resolution	320(RGB)×240, QVGA, 70PPI
Pixel Format	RGB Vertical Stripe
Display size	115.2 × 86.4 (H×V) mm
Bezel Opening	119.4 × 90.6 (H×V)mm
Outline (mm)	131 × 102.2 × 7.1 (H×V×D)mm
Brightness	400 cd/m² (Typ.)
Contrast Ratio	350:1 (Typ.) (TM)
Viewing Angle	80/80/80/60 (Typ.) (CR≥5)
Optical mode	TN, Normally White, Transmissive
Number of colors	262K , 50% NTSC
Response time	30 (Typ.)(Tr+Td)
Good View at	12 o'clock
Backlight type	3S5P WLED , 40K hours, without driver
Refresh Rate	60Hz
Touch Screen	Without
Mass	150g (Typ.)
Used for	Industrial
Signal Type	CMOS (1 ch, 6-bit) , 40 pins , terminal
Supply voltage	3.3V (Typ.)
Max. Ratings	Operating: -20 ~ 70 °C ; Storage: -30 ~ 80 °C ; Vibration Resistance: 3.0G (29.4 m/s²)
TX14D22VM1BAA 5.7 inch 70PPI 40 pins lcd display modules

TX14D22VM1BAA LCD Display Note :

Please ensure thorough verification of the following specifications – screen size, resolution, backlight type, interface type, and compatibility with your device – before proceeding with your order. If there is any uncertainty regarding compatibility, feel free to reach out to us for clarification at no cost.

Kindly furnish us with accurate contact details to facilitate prompt delivery of your item.

Should you wish for us to offer a reduced price to mitigate tariff implications, please inform us accordingly. However, please note that any associated risks shall be borne by you.

TX14D22VM1BAA LCD Panel Shipping and Package :

SHIPPING Information for TX14D22VM1BAA LCD Display :

We offer a variety of shipping options including ALI standard shipping, EMS, DHL, FedEx, and more. You can select your preferred shipping method during the checkout process.

Orders will typically be dispatched within 1-3 business days following the completion of payment. However, please note that certain products may require additional processing time depending on their stock availability.

Upon shipment, each order will be assigned a unique tracking number, which will be promptly provided to you for easy monitoring of your delivery.

To ensure the safe transit of your item, we utilize secure packaging consisting of an antistatic bag, bubble bag, bubble chamber, and a sturdy hard carton suited to the item's dimensions. This packaging approach is designed to minimize the risk of damage during transportation.

Reminder for TX14D22VM1BAA LCD Display Purchase :

Kindly note that our listed price does not incorporate any customs taxes or fees applicable in the destination country. Whether you incur any taxes or fees upon Customs clearance at your destination hinges on the regulations enforced by the respective country.

To ensure seamless delivery, please verify and ensure the accuracy of your shipping details, including your address, postal code, phone number, and designated contact person, prior to finalizing your order. In the event you wish to have your order delivered to an alternate address, please notify us in advance and leave a message in our transaction platform to facilitate the necessary arrangements.

TX14D22VM1BAA LCD Panel FAQ :

Q: Do you accept sample orders of TX14D22VM1BAA ?

A: Of course!sample order is welcome !

Q: How can I trace my order of TX14D22VM1BAA ?

A: we will give you tracking number then you can trace your order from website.

Q: Can you give me a discount if I need a large quantity of TX14D22VM1BAA ?

A: Of course!If you make a large order, we will give you a discount.

Q: Can I pay my order of TX14D22VM1BAA via credit card ?

A:Yes!you can use your credit card through your Paypal account.
