products details

Home > Products >

Industrial LCD Panel Display

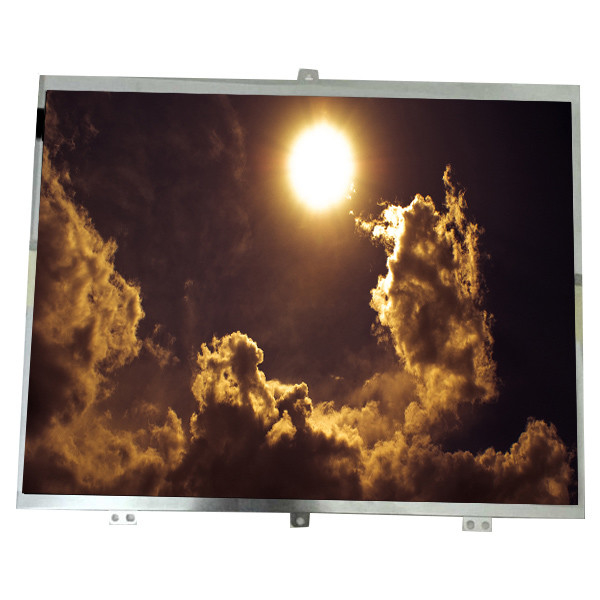

The 12.1 Inch industrial lcd panel 105ppi LCD New original LQ121X3LG02

All Category

Floor Standing Digital Signage

The 12.1 Inch industrial lcd panel 105ppi LCD New original LQ121X3LG02

Brand Name:	Sharp
Model Number:	LQ121X3LG02
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Model:

LQ121X3LG02

Diagonal Size:

12.1 Inch

Pixel Format:

1024(RGB)×768 [XGA] 105PPI

Active Area:

245.76(H)×184.32(V) Mm

Outline Dim.:

259(H)×205(V)×8(D) Mm

Bezel Area:

250.4(H)×188.9(V) Mm

Weight:

530/550g (Typ./Max.)

Designed For:

Industrial / Outdoor High Brightness

Supply Ability:

100000 Unit/Units per Month

Product Description

The 12.1 Inch industrial lcd panel 105ppi LCD New original LQ121X3LG02

LQ121X3LG02 Product details :

SHARP LCD SCREEN LQ121X3LG02
manufacturer	SHARP
Model Name	LQ121X3LG02
screen size	12.1inch
Screen type	LCM, a-Si TFT-LCD
Resolution	1024(RGB)×768 XGA 105PPI
Pixel configuration	RGB Vertical Stripe
Display size	245.76(horizontal)×184.32(vertical) mm
Visible area	259(horizontal)×205(vertical)×8(thickness) mm
physical	250.4(horizontal)×188.9(vertical) mm
Panel	1200 cd/m² (Typ.)
contrast	1000:1 (Typ.) (TM)
Viewing angle	70/70/50/60 (Typ.) (CR≥10)
display mode	TN, Normally White, Transmissive
Number of color	262K , 40% NTSC
Reaction time	30 (Typ.)(Tr+Td);
Backlight type	WLED [8S5P] , 50K hours, no driver
Refresh rate	60Hz
Touch function	No touch
Panel weight	530/550g (Typ./Max.)
Signal	LVDS (1 ch, 8-bit) , 20 pins , terminal
drive voltage	3.3V (Typ.)
working	Operating temperature: -20 ~ 50 °C ; Storage temperature: -35 ~ 75 °C
The 12.1 Inch industrial lcd panel 105ppi LCD New original LQ121X3LG02

LQ121X3LG02 Payment:

1:We receive ALI payments and papay payments. please make sure your address OK.

2: Payment must be made within 48 hours of the auction end time.

3: Non-Paying bidders will be reported.

LQ121X3LG02 Shipping and Package :
The 12.1 Inch industrial lcd panel 105ppi LCD New original LQ121X3LG02 0

LQ121X3LG02 Packing :

Outer packing is strong carton , inner packing is foam , it will be strong and safe enough , to avoid getting broken in the transport .

LQ121X3LG02 About transportation:

*We will ship the goodswithin 1-3 working daysafter you make the payment. We only ship according to the delivery address. If you want to change the delivery address, please contact me in advance.

*We use the fastest shipping service based on the shipping cost you pay. The transit time is usually 7-30 days and may vary by country/region. Delivery to most European, North American and Asian countries within 7-15 days. Up to 30-45 days in other countries. Provide express service (DHL/FEDEX/TNT/ARAMEX/UPS)

LQ121X3LG02 Return& Refund:

Please read the item description and check the pictures carefully before bidding.

Refund or Return is available if the item arrived broken,not as described or does not do what it's supposed to.

Return items must have all original packaging and in good condition.

LQ121X3LG02 Warranty :

1, We take 12 months warranty from the shipping date , no matter what quality problem it's .

2, Pls keep in touch with us , if you have any problems pls contact us immediately , we will help you to solve the problem ASAP. .

LQ121X3LG02 FAQ:

Q: How can I trace my order of LQ121X3LG02 ?

A: we will give you tracking number then you can trace your order from website.

Q: If I place order now,when will you ship the goods of LQ121X3LG02 ?

A: The order will be shipped within 2-3 working days after received your payment.

Q: Do you accept sample orders of LQ121X3LG02 ?

A: Of course!sample order is welcome !

Q: Can you give me a discount if I need a large quantity of AAA?

A: Of course!If you make a large order, we will give you a discount.

Q: How long is the warranty ?

A: We offer 90 days warranty .
