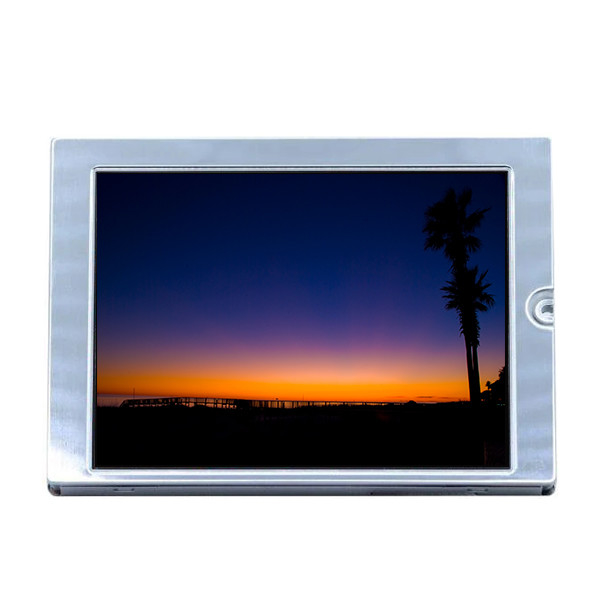

TCG057QVLCL-G00 5.7 inch 320*240 Industrial LCD Screen For Kyocera
TCG057QVLCL-G00 LCD Panel Product details :
Brand | Kyocera |
Model P/N | TCG057QVLCL-G00 |
Diagonal Size | 5.7" |
Panel Type | a-Si TFT-LCD, LCM |
Resolution | 320(RGB)×240, QVGA 70PPI |
Pixel Format | RGB Vertical Stripe |
Active Area | 115.2(W)×86.4(H) mm |
Bezel Opening | 118.4(W)×89.6(H) mm |
Outline Size | 144(W)×104.8(H)×12.7(D) mm |
Surface | Glare (Haze 0%) |
Brightness | 350 cd/m² (Typ.) |
Contrast Ratio | 500:1 (Typ.) (TM) |
Viewing Angle | 80/80/80/80 (Typ.)(CR≥5) |
Display Mode | TN, Normally White, Transmissive |
Best View on | - |
Response Time | 10/25 (Typ.)(Tr/Td) |
Display Colors | 262K 60%NTSC |
Lamp Type | WLED, 50K hours, With LED Driver |
Frequency | - |
Touch Screen | Without |
Panel Weight | 180g (Typ.) |
Application | Industrial |
Signal Interface | Parallel RGB (1 ch, 6-bit), 33 pins Connector |
Input Voltage | 3.3V (Typ.) |
Environment | Operating Temp.: -20 ~ 70 °C ;Storage Temp.: -30 ~ 80 °C |
TCG057QVLCL-G00 5.7 inch 320*240 Industrial LCD Screen For Kyocera |
TCG057QVLCL-G00 LCD Panel Shipping and Package :
TCG057QVLCL-G00 LCD Panel FAQ :
Q: Can you declared low value for my order when shipping?
A: Yes, We can do it for you if you need.
Q: When would you ship,IF I order TCG057QVLCL-G00 now?
A: The order are shipped within 1-2 working days after received the payment.
Q: Do you accept the sample order?
A: Yes , sample order is welcome.
Q: How to order if I don't know the lcd panel number ?
A: You can offer 2-3 photos (back-side and front-side) for your lcd panel ,So that we can check the panel to you.
