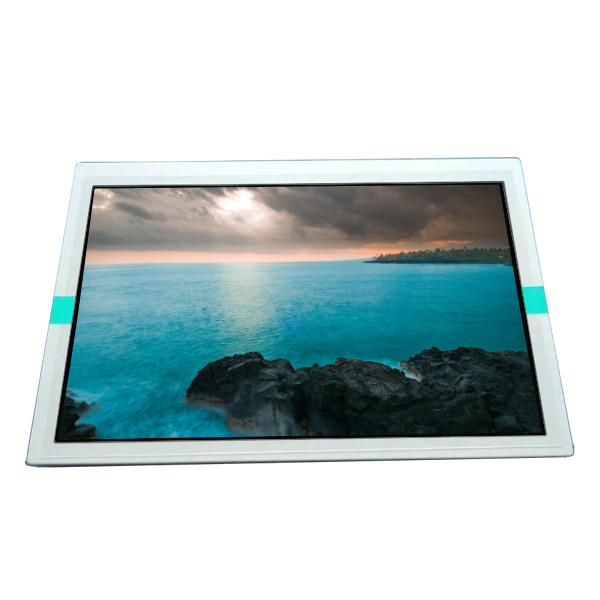

T-55923GD050J-LW-ABN 5.0 inch 480*640 LCD Screen

Brand Name:	Kyocera
Model Number:	T-55923GD050J-LW-ABN
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

T-55923GD050J-LW-ABN

Diagonal Size:

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

480×640(RGB), VGA 159PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

76.32(W)×101.76(H) Mm

Designed For:

Industrial、Outdoor High Brightness

Color Depth:

16.7M 38% NTSC

Supply Ability:

100000 Unit/Units per Month

Product Description

T-55923GD050J-LW-ABN 5.0 inch 480*640 LCD Screen

T-55923GD050J-LW-ABN LCD Panel Product details :

Brand	Kyocera
Model P/N	T-55923GD050J-LW-ABN
Diagonal Size	5.0"
Panel Type	a-Si TFT-LCD, LCM
Resolution	480×640(RGB), VGA 159PPI
Pixel Format	RGB Horizontal Stripe
Active Area	76.32(W)×101.76(H) mm
Bezel Opening	81.32(W)×106.76(H) mm
Outline(mm)	98(W)×119(H)×11(D)
Luminance	800 (Typ.)(cd/m²)
Viewing Angle	70/70/50/60 (Typ.)(CR≥10)
Good View at	6 o'clock
Color Depth	16.7M 38% NTSC
Mass	185g
Refresh Rate	60Hz
Treatment	Glare (Haze 0%)
Contrast Ratio	500 : 1 (Typ.) (TM)
Work Mode	TN, Normally White, Transmissive
Response	4/12 (Typ.)(Tr/Td) ms
Backlight	WLED , 50K hours , No Driver
Used for	Industrial
Touchscreen	Without
Signal Type	Parallel RGB (1 ch, 8-bit), 45 pins Connector
Voltage Supply	3.3V (Typ.)
Max. Ratings	Storage Temp.: -30 ~ 80 °C Operating Temp.: -30 ~ 80 °C
T-55923GD050J-LW-ABN 5.0 inch 480*640 LCD Screen

T-55923GD050J-LW-ABN LCD Panel Specification :

Quality Assurance:

Before dispatching any of our LCD panels, we conduct a thorough quality check and testing process. This rigorous evaluation ensures that every unit meets our high standards for functionality and performance. Our commitment to quality means that you receive a product that is ready for immediate use, providing reliable and consistent performance. This process is part of our dedication to delivering excellence and customer satisfaction with every LCD panel purchased.

T-55923GD050J-LW-ABN LCD Panel Shipping and Package :

T-55923GD050J-LW-ABN LCD Panel Shipping Information :

Standard Shipping Practices:

We adhere to high standards in shipping practices, ensuring that your goods are transported safely and efficiently.

Processing Time:

We strive to dispatch your purchase within 3 working days after confirming receipt of payment. This quick turnaround ensures that your LCD panel reaches you in a timely manner.

Contact Information Requirement:

To facilitate on-time delivery, please provide a valid phone number when placing your order. This allows the delivery service to contact you directly in case of any delivery-related updates or issues.

Attention – Expedited Shipping Options:

For those requiring faster delivery, we offer expedited shipping options. Please contact us prior to placing your order if you wish to utilize expedited shipping via DHL or US Federal Express. We can then provide you with additional details on the costs and delivery timeframes associated with these services.

T-55923GD050J-LW-ABN LCD Panel Return Policy :

Please be aware that tampering with or opening our product voids any eligibility for return or refund unless authorized by us. If any concerns arise regarding the product, kindly reach out to us for assistance. Unauthorized alterations or opening of our products will render them ineligible for refund.

In the event that your purchase does not meet your expectations, we offer a 14-day window for exchanges or refunds from the date of purchase. To proceed with either an exchange or refund, we require the original receipt, and the product must be in its original condition, which includes the intact box, packaging, and all accompanying accessories. Please allow a maximum of 10 business days for the return processing to be completed.

Please note that shipping and handling charges are non-refundable. You are responsible for covering the shipping costs for returns. Once the returned item reaches our warehouse, we will initiate a full refund for your purchase.

T-55923GD050J-LW-ABN LCD Panel FAQ :

Q: Why big order delivery time are long?

A: All the lcd panel are Strictly tested before shipment , to ensure that you receive good quality lcd panel and work well!

Q: What happen if the lcd panel T-55923GD050J-LW-ABN I received can't work ?

A: All the goods will be tesed before shipping.If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel.

Q:Can you declared low value for my order when shipping?

A:Yes, We can do it for you if you need.

Q: How to do if I can't find the screen that I require in your listings?

A: We should have it in stock , please contact us directly.if we dont't have it , we can try our best to find it for you .
