Name: Original 8.9 inch 640*240 KCG089HV1AC-G000 Industrial STN LCD Module
Brand: Shenzhen Yongsheng Innovation Technology Co., Ltd
SKU: KCG089HV1AC-G000
Availability: InStock

Brand Name:	Kyocera
Model Number:	KCG089HV1AC-G000
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model P/N:

KCG089HV1AC-G000

Diagonal Size:

8.9"

Resolution:

640(RGB)×240, HVGA 76PPI

Active Area:

211.18(W)×79.18(H) Mm

Outline(mm):

246 × 103 (H×V×D)

Luminance:

120 Cd/m² (Typ.)

Contrast Ratio:

30 : 1 (Typ.) (TM)

Used For:

Industrial

Supply Ability:

100000 Unit/Units per Month

Product Description

Original 8.9 inch 640*240 KCG089HV1AC-G000 Industrial STN LCD Module

KCG089HV1AC-G000 Product details :

Kyocera LCD SCREEN KCG089HV1AC-G000
manufacturer	Kyocera
Model Name	KCG089HV1AC-G000
screen size	8.9 inch
Screen type	CSTN-LCD, LCM
Resolution	640(RGB)×240 [HVGA] 76PPI
Pixel configuration	RGB Vertical Stripe
Display size	211.18(H)×79.18(V) mm
physical dimension	246(H)×103(V) mm
Brightness	120 cd/m² (Typ.)
Contrast	30:1 (Typ.) (TM)
Optical mode	STN, Normally Black, Transmissive
Viewing angle	50/50/35/20 (Typ.)(CR≥2)
Number of color	Color
Backlight type	CCFL , 54K hours
Apply to	Industrial
Touch function	4-wire Resistive Touch
signal system	Parallel Data (8-bit)
Maximum rating	Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C
Original 8.9 inch 640*240 KCG089HV1AC-G000 Industrial STN LCD Module

KCG089HV1AC-G000 About Product:

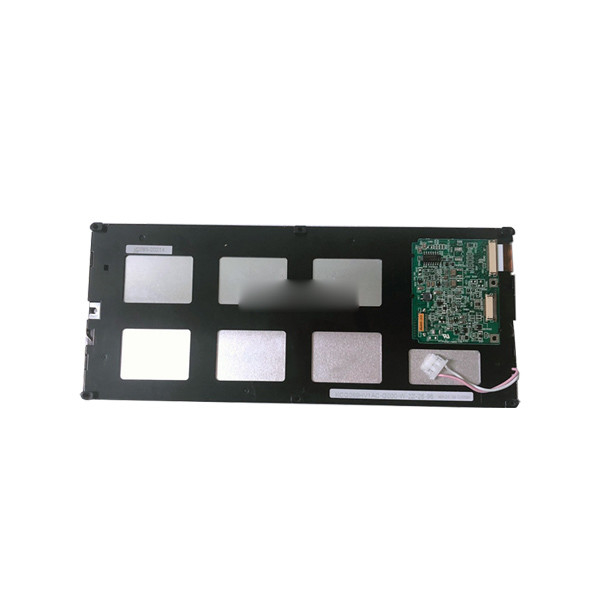

Images show actual product, please verify all connectors and specifications carefully.

We will send the compatible one instead if original one out of stock.

All items will be tested shipped .

if you have any question, please give us a message.

Highly recommendable professional installation.We will not be liable for any damage to your Computer which caused during your installation.

Before installation, please disconnect the power and unplug the battery!!!

KCG089HV1AC-G000 Shipping and Package :

Original 8.9 inch 640*240 KCG089HV1AC-G000 Industrial STN LCD Module 0

KCG089HV1AC-G000 SHIPPING METHOD:

We usually provide shipping method China Post Air Mail and E packet to USA. Shipping via EMS, DHL,UPS or FEDEX are also available if you wish to pay extra charge or your order reach a large amount.

KCG089HV1AC-G000 Refund&Return Policy:

We will refund you if the screen was damaged during transportation.

We will pack it very well, don't worry about packing.

You can return the items if item was not as description.

KCG089HV1AC-G000 Customer services:

Please contact us if you have any questions, we will try our best to provide you best services.

KCG089HV1AC-G000 FAQ:

Q: How long will I receive my goods of KCG089HV1AC-G000 ?

A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.

Q: How to make payment for KCG089HV1AC-G000 ?

A: We accept T/T , Paypal , western union .

Q: How long is the warranty of KCG089HV1AC-G000 ?

A: 90days warranty .

Q: Can you give me a discount if I need a large quantity of KCG089HV1AC-G000 ?

A: Of course!If you make a large order, we will give you a discount.
