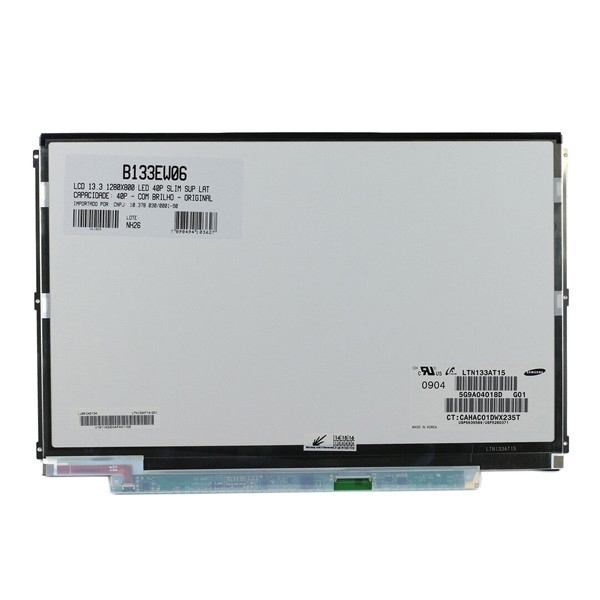

Name: LTN133AT15-G01 original 13.3 inch 1280*800 LCD Screen Panel
Brand: Shenzhen Yongsheng Innovation Technology Co., Ltd
SKU: LTN133AT15-G01
Availability: InStock

Brand Name:	Samsung
Model Number:	LTN133AT15-G01
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model P/N:

LTN133AT15-G01

Diagonal Size:

13.3"

Resolution:

1280(RGB)×800, WXGA 113PPI

Active Area:

286.08(W)×178.8(H) Mm

Outline Size:

296(W)×203(H)×3.5(D) Mm

Brightness:

200 Cd/m² (Typ.)

Contrast Ratio:

500:1 (Typ.) (TM)

Application:

Laptop

Viewing Angle:

45/45/20/30 (Typ.)(CR≥10)

Supply Ability:

100000 Unit/Units per Month

Product Description

LTN133AT15-G01 original 13.3 inch 1280*800 LCD Screen Panel

LTN133AT15-G01 Product details :

Brand	Samsung
Model P/N	LTN133AT15-G01
Diagonal Size	13.3"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1280(RGB)×800, WXGA 113PPI
Pixel Format	RGB Vertical Stripe
Active Area	286.08(W)×178.8(H) mm
Bezel Opening	-
Outline Size	296(W)×203(H)×3.5(D) mm
Brightness	200 cd/m² (Typ.)
Viewing Angle	45/45/20/30 (Typ.)(CR≥10)
Best View on	6 o'clock
Display Colors	262K 46%NTSC
Frequency	60Hz
Shape Style	Slim (PCBA Flat, T≤3.2mm)
Surface	Glare (Haze 0%), Hard coating (3H)
Contrast Ratio	500:1 (Typ.) (TM)
Display Mode	TN, Normally White, Transmissive
Response Time	16 (Typ.)(Tr+Td)
Lamp Type	8S6P WLED , 12K hours , With LED Driver
Touch Screen	Without
Application	Laptop
Signal Interface	LVDS (1 ch, 6-bit), 40 pinsConnector
Input Voltage	3.3V (Typ.)
Environment	Operating Temp.: 0 ~ 50 °C ;Storage Temp.: -20 ~ 60 °C
LTN133AT15-G01 original 13.3 inch 1280*800 LCD Screen Panel

LTN133AT15-G01 Friendly Reminder :

- Installation guide is not included,We are not responsible for any damage caused by the installation of this accessory, make sure you understand how to install before ordering.

- Special skills and techniques required for proper installation. We recommend you process your repairment with an assistance of a qualified technician.

- Please make sure you understand disassembly procedure before purchase.It is strongly recommended that customers test the product before installation.

LTN133AT15-G01 Shippment & Packing

LTN133AT15-G01 original 13.3 inch 1280*800 LCD Screen Panel 0

LTN133AT15-G01 Delivery time is approx:

United States / United Kingdom / Australia 7-14 working days.

Canada 7-25 working days.

France / Spain / Germany may take 7-20 working days.

Eastern Europe may take up to 16-30 working days.

Italy / Brazil / South America may take up to 30-50 working days.

Shipped by DHL Express (Need 3-6 working days to arrive)

LTN133AT15-G01 Return & Warranty:

- If the product is defective or not working, please contact us immediately after receiving the product.We offer a 30days Money back or replacement.

- If prove that this product is defective or not working,Please return the product,We will resend a product for you.

- The returned item and all accessories must be in the original (unused) condition. Each item is pasted with a warranty label, please do not tear up the label.

LTN133AT15-G01 FAQ:

Q: How do you ship my goods LTN133AT15-G01 ?

A: We can shipping all over the world.via DHL,UPS,Fedex and EMS, the packaging is very safe and strong.

Q: How long is the warranty of LTN133AT15-G01 ?

A: 90days warranty .

Q: Are you manufactory or trade company ?

A: We are a Trade Company , We are LCD panel professional distributors ,We have own warehouse and inventory. Our goal is to provide our customers with the best products.

Q: Can You declare my order of LCD panel Samsung LTN133AT15-G01 at a very low value ?

A: Yes , we can . pls inform us before shipping .
